10.FINAL REDUCTION/
TRANSMISSION SYSTEM
10-25
MXU 300/250

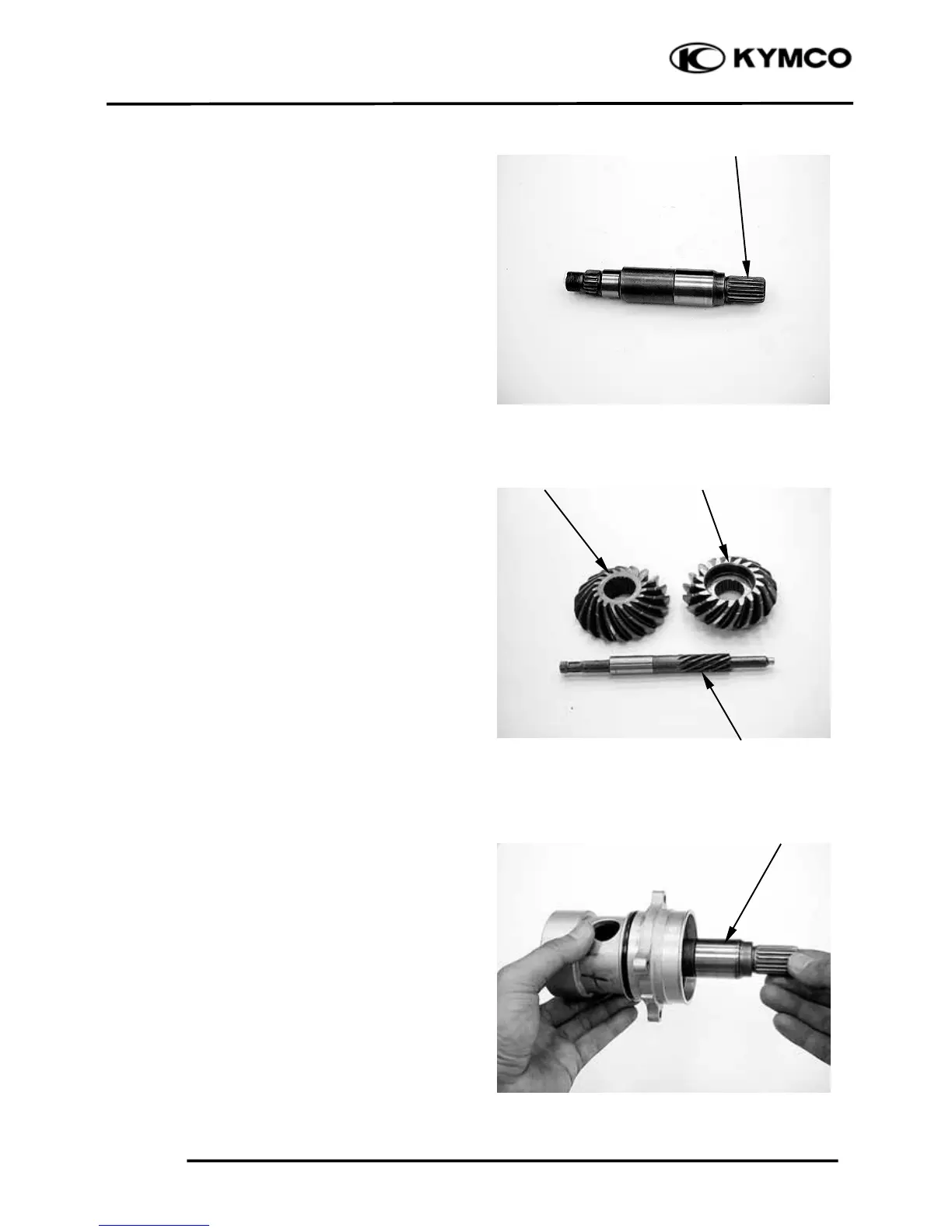

INSPECTION
Inspect the secondary driven bevel gear shaft
splines for wear or damage.
Inspect the secondary driven bevel gear shaft
for blue discoloration, pitting or wear.
Inspect the bevel gears and speedometer gear
for blue discoloration, pitting or wear.
SECONDARY DRIVEN BEVEL GEAR
ASSEMBLY
Apply engine oil to the secondary driven
bevel gear shaft.
Install the secondary driven bevel gear shaft
into the case.
Splines
Speedometer Gea
r
Bevel Gear Bevel Gea
r
Secondary Driven Bevel Gear Shaf
t
