10.FINAL REDUCTION/
TRANSMISSION SYSTEM
10-26
MXU 300/250

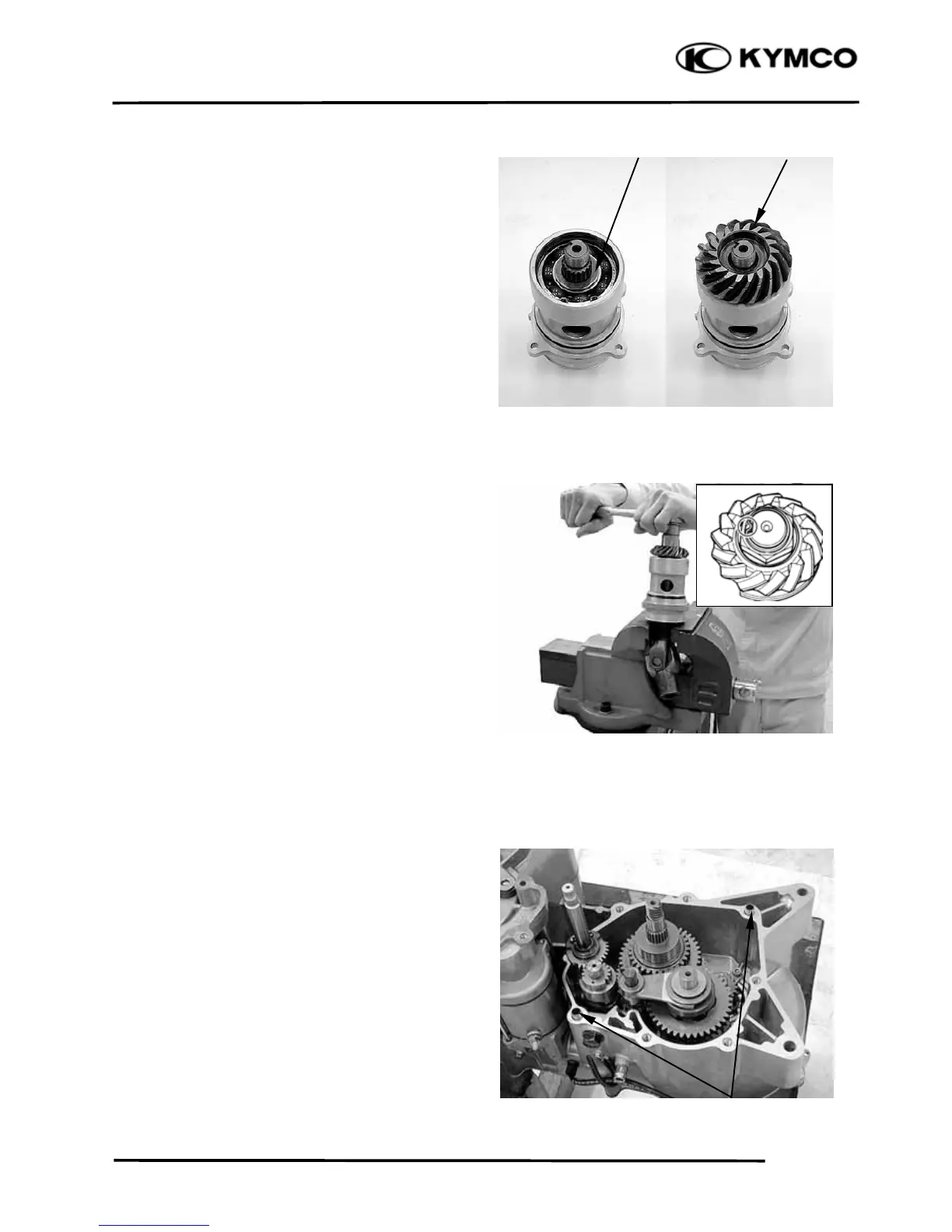

Apply engine oil to the driven bevel gear.
Install the shim and driven bevel gear.
Fit the universal joint onto the driven bevel
gear shaft.
Tighten the driven bevel gear nut to the
specified torque.
Torque: 100 N-m (10 kgf-m, 72.5 lb-ft)
Stake the nut with a center punch.
INSTALLATION
Install the two dowel pins.
Shim Driven Bevel Gea
To Next Page
