Kyocera ECOSYS M2030dn

2PK/2PL/2PM/2PN
1-5-24
15. Fold the end of the FFC and then pull
the FFC out from the ISU lower frame.
16. Remove the FFC tape D and A from the
ISU lower frame.
17. Clean the adhesive residue of the FFC
tape D and A.

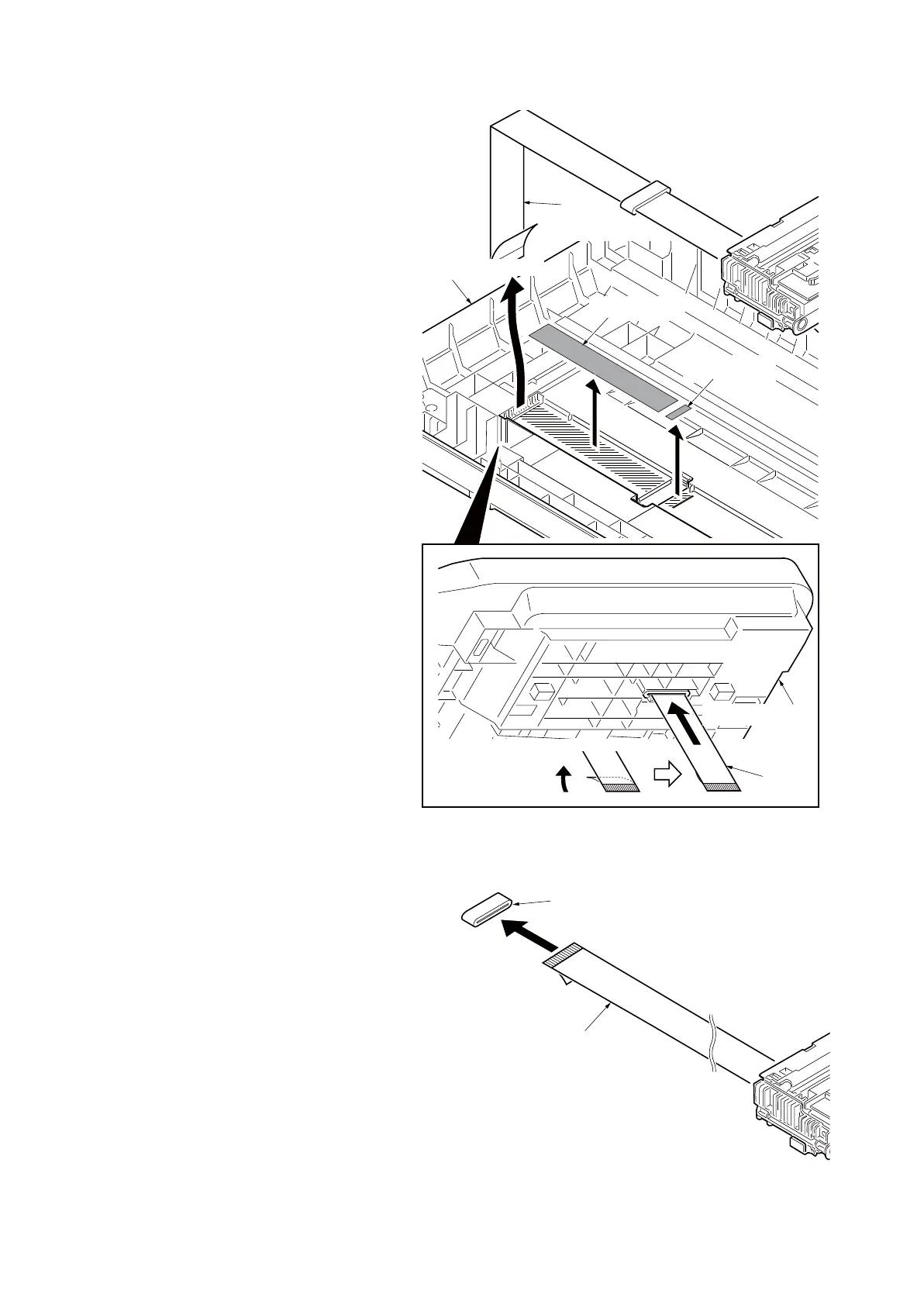

Figure 1-5-34
18. Remove the ferrite core from the FFC.
Figure 1-5-35
FFC
FFC
ISU lower frame
ISU lower frame
FFC tape A
FFC tape D
Ferrite core
FFC
