6. Remove the forwarding pulley assem-
bly.

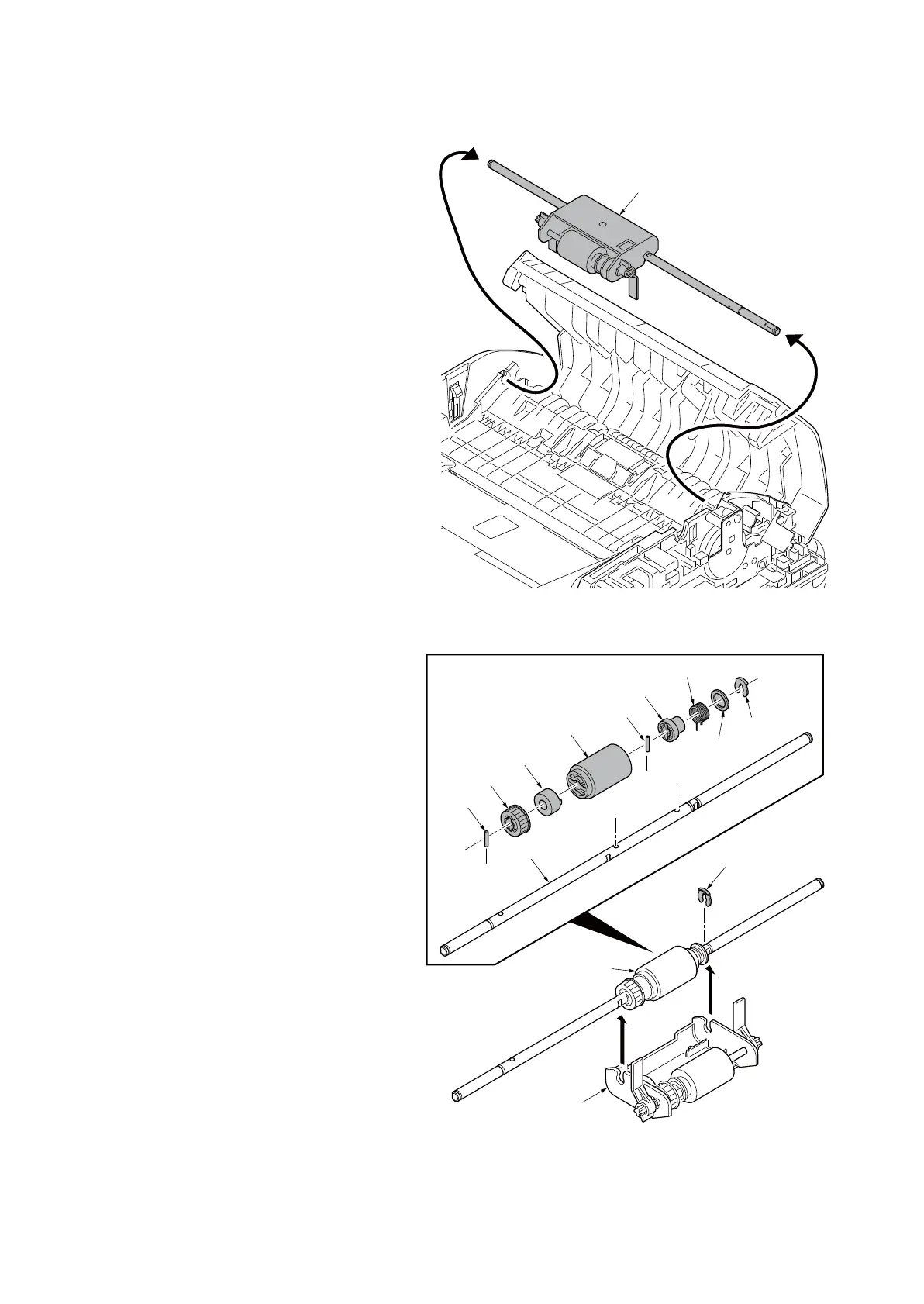

Figure 1-5-81
Detaching the feed pulley
7. Remove the stopper A.
8. Remove the feed pulley assembly from
the LF holder.
9. Remove the stopper B.
10. Remove the PF collar, spring, spring
collar S and pin from the PF shaft.
11. Remove the feed pulley, one-way
clutch, PF pulley gear and pin from the
PF shaft.
Figure 1-5-82
Forwarding pulley assembly
Stopper A
Feed pulley
assembly
LF holder
Feed pully
Pin
PF shaft
Pin
Spring
Spring collar S
PF collar
Stopper B
PF pulley gear
One-way clutch
