Detaching the forwarding pulley
12. Remove the PF stopper from the LF
holder.
13. Remove the stopper.
14. Pull out the LF shaft and then remove
the LF gear 18, forwarding feed joint
gear and forwarding pulley.
15. Clean or replace the feed pulley and
forwarding pulley.
Refit all the removed parts.

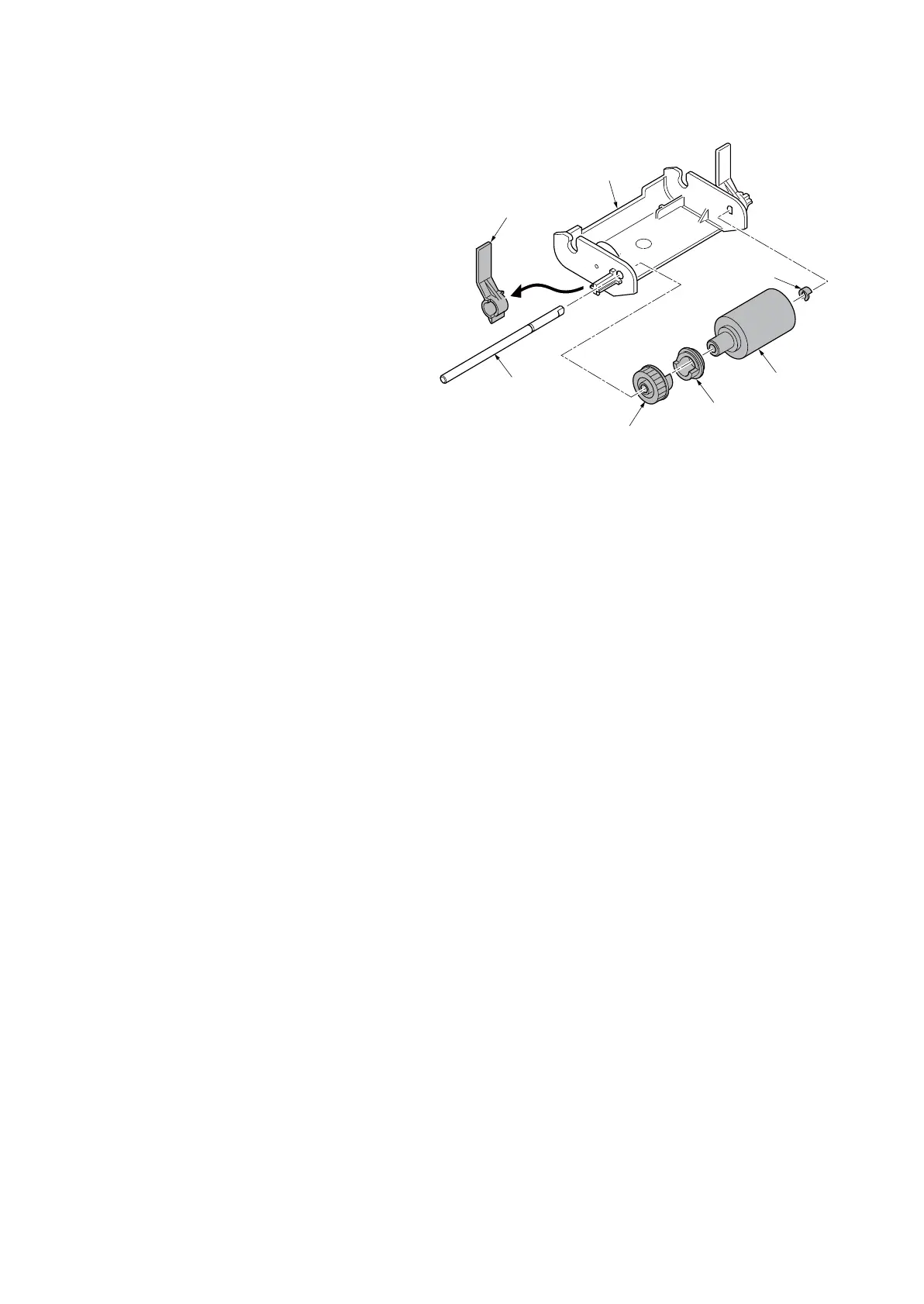

Figure 1-5-83
Stopper
PF stopper
LF holder
LF shaft
Forwarding
pulley
Forwarding
feed joint gear
LF gear 18
