Kyocera FS-1020D

2FM
2-1-16
(6-1) Fuser unit mechanism

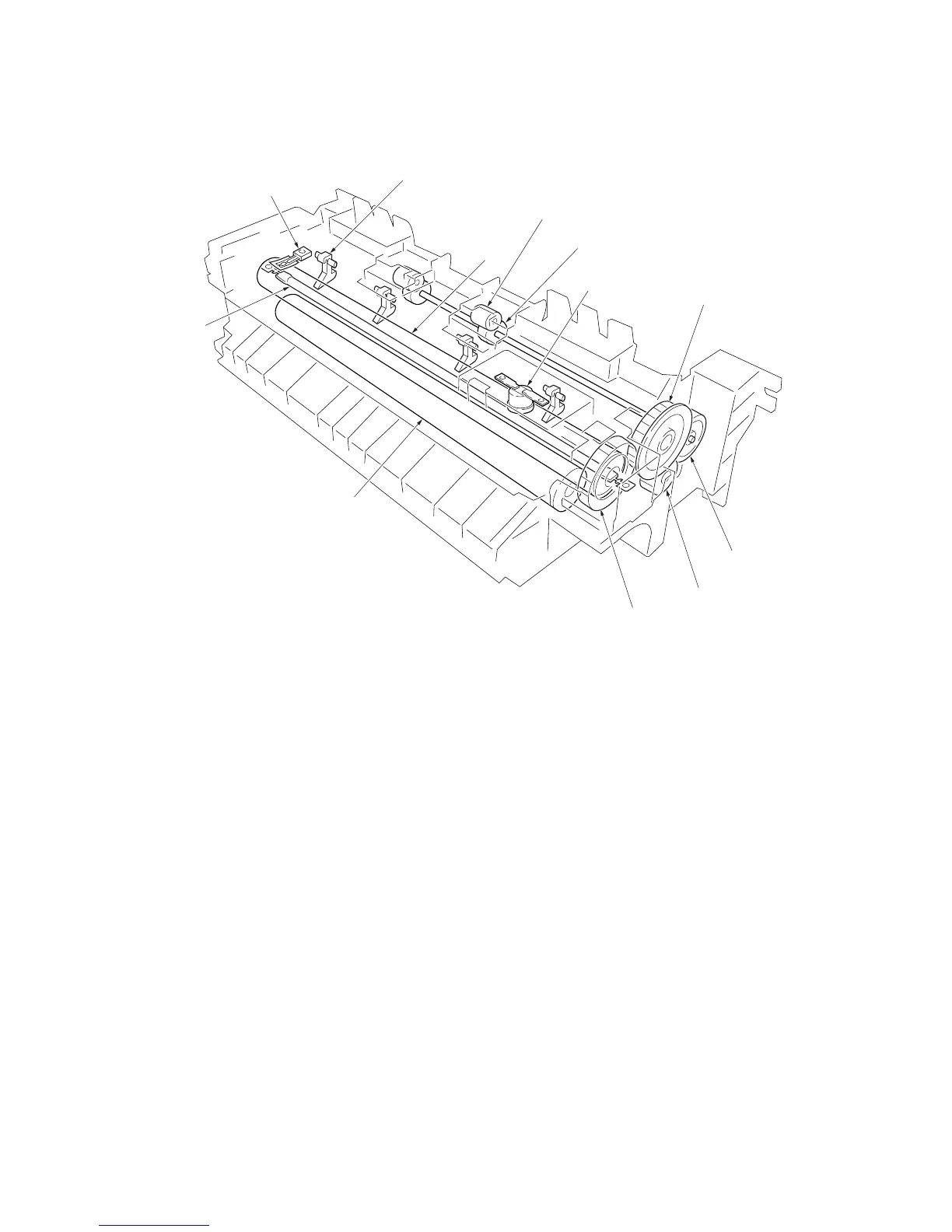

Figure 2-1-16 Fuser unit mechanism
6
5
4
3
2
1
!
@
8
0
9
7
1 Heat roller
2 Idle gear Z34
3 Exit gear Z23
4 Idle gear Z18
5 Heat gear Z33
6 Press roller
7 Heater lamp
8 Thermal cutout
9 Separator(s)
0 Thermistor
! Exit pulley(s)
@ Lower exit roller
