(1) Interlock switch
The interlock switch is located on the high voltage board and opened and closed in conjunction with the front cover or the
front top cover via the interlock lever. This switch connects and disconnects the +24 V DC power supply line. If the front
cover or the front top cover is open, the interlock switch is open, and the +24 V DC to the high voltage output circuit, bias
board, engine board, and the power supply board is disconnected, deactivating the high voltage output, laser output, main
motor output for safety. The cooling fan is an exception: Since the cooling fan is directly fed with +24 V DC from the power
supply unit at the primary side (+24V1) of the interlock switch, the cooling fan is not deactivated even the cover is open.
High voltage board
Power supply unit
Interlock
switch
Interlock lever
Projection
Projection
Front top cover
Machine left side view
+24V1+24V1
+24V2
+24 V DC
output
+24V2
+24V3
+24V2
High voltage
output circuit
Bias
board
Cooling fan
Triac, etc.
Front cover
Engine board

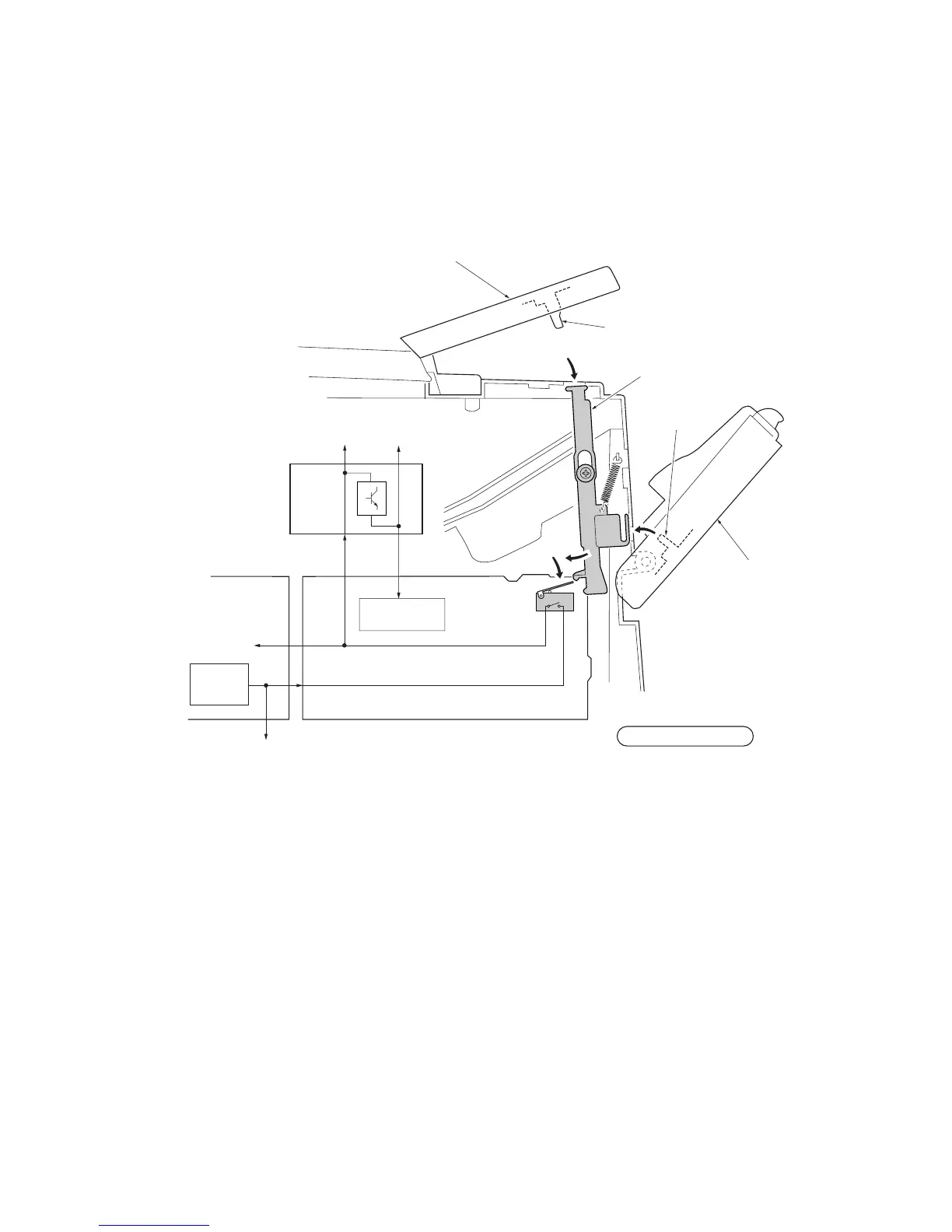

Figure 2-3-9 Interlock switch
