(3) Removing the power supply board and high voltage board
1. Remove the process unit (See page 1-6-2).
2. Remove the left cover (See page 1-6-4).
3. Remove three connectors from the power supply board.
4. Remove nine screws.
5. Remove the power supply board and high voltage board. (Note: The high voltage board is directly connected to the
bias board.)
6. Separate the high voltage board from the power supply board.

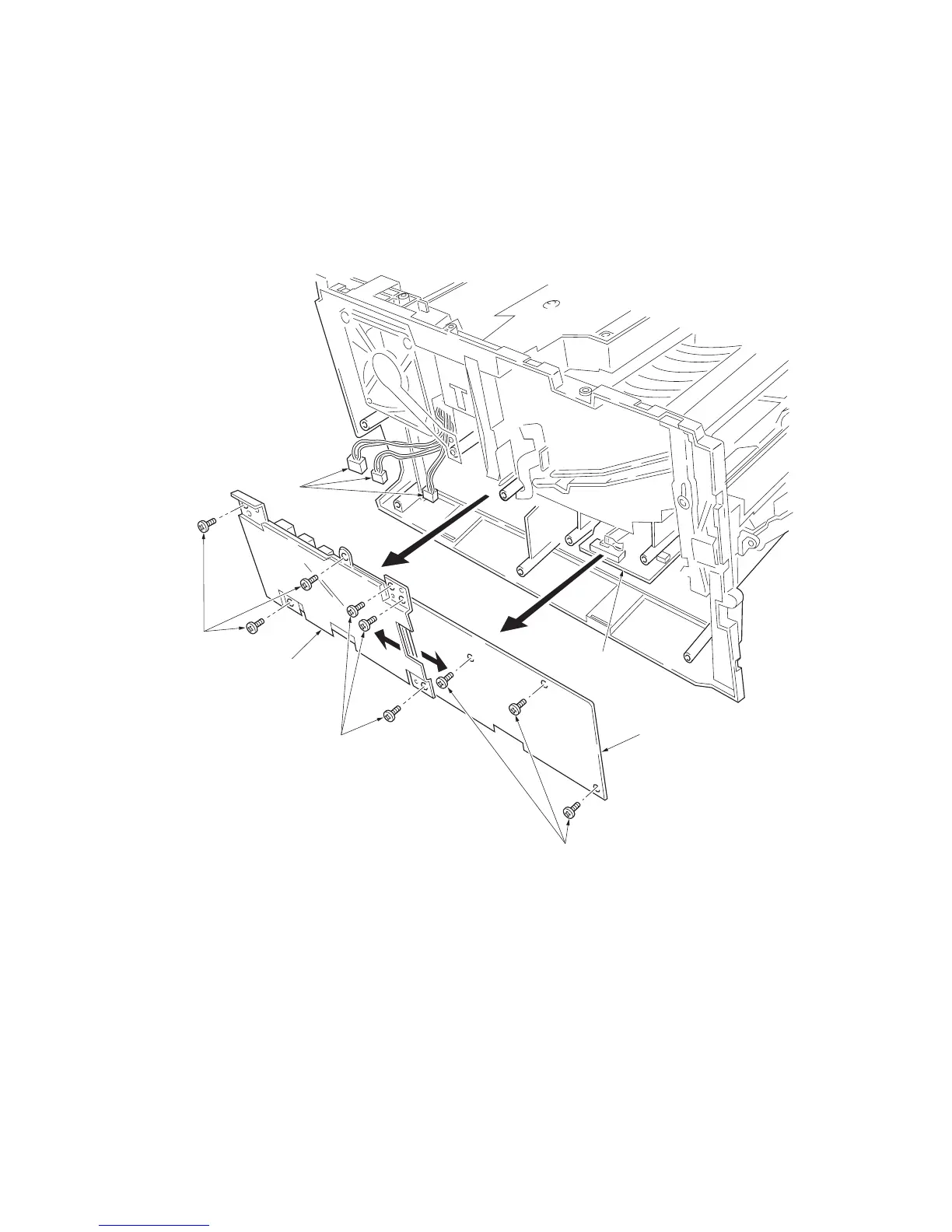

Figure 1-6-13 Removing the power supply board and high voltage board
Power supply board
Screws
Connectors
Screws
Screws
High voltage board
Bias board
