Kyocera FS-1020D Service Manual

2FM
1-7-3
(3) Downloading the firmware from the memory card
To download data written in a memory card (CompactFlash) to the printer, proceed as explained in this section.
CAUTION
Downloading firmware takes several minutes.
Do not turn power off during downloading. If
downloading is interrupted by an accidental
power failure, etc., the system DIMM may
have to be replaced.
NOTE
The firmware program data must be stored to
the root directory of the memory card.
Procedure
1. Turn power switch off.
2. Remove the two screws and then remove the
slot cover. Insert the memory card in the
printer’s memory card slot.
3. Turn power switch on.
4. The printers starts and finishes downloading
automatically.
5. Confirm that downloading was finished
normally by the LED indicator. (See page 1-7-
4)
6. Turn power off.
7. Remove the memory card and then secure the
slot cover by using two screws.
8. Turn power on again. Check the printer gets
ready.
9. Turn power on again. Check the printer gets
ready.
Confirm the status page shows the new
firmware version (See service information
on the statuspage). If downloading fails, the
printer indicates an error display using the
LED indicators. To identify error, refer to the
table on page 1-7-4.

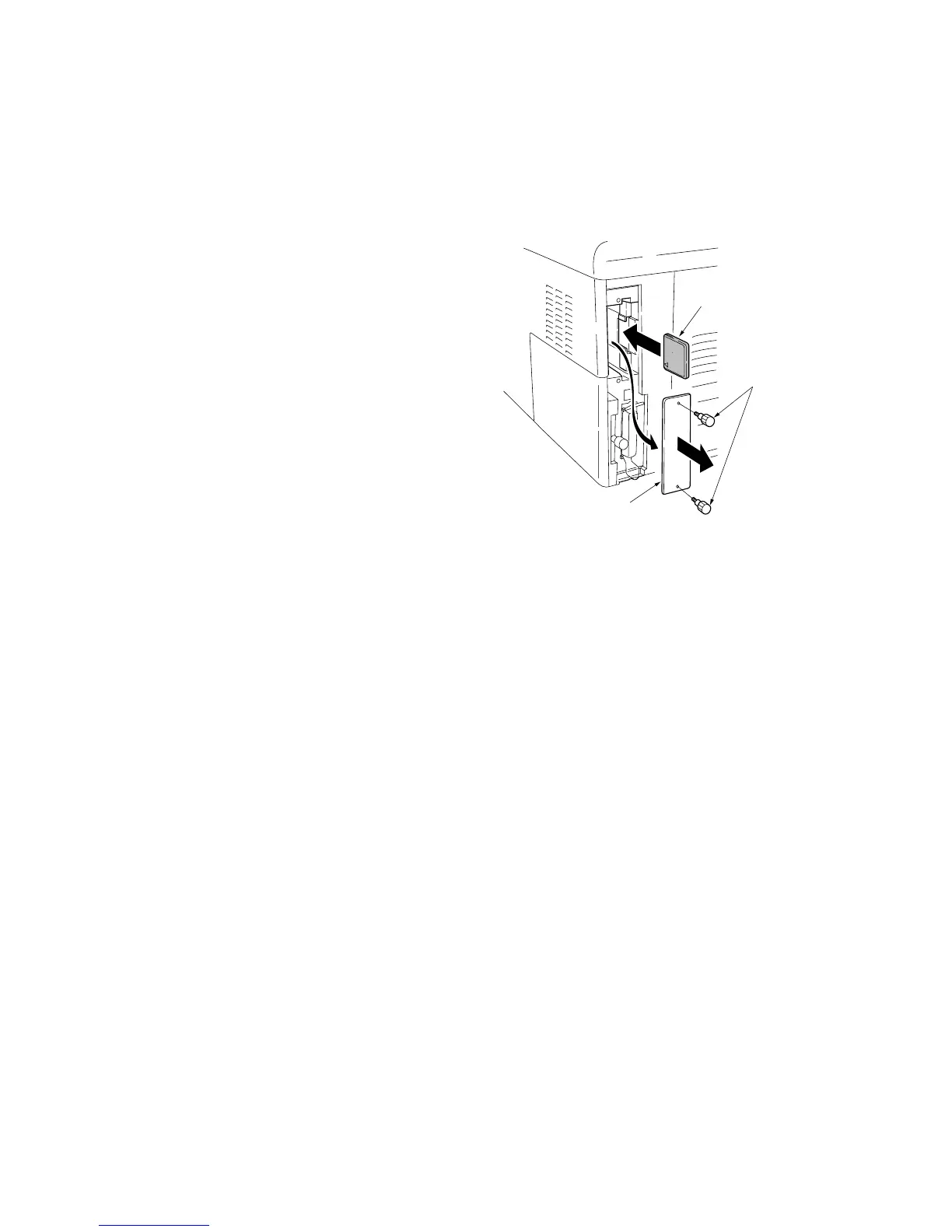

Figure 1-7-1
Memory card
Slot cover
Screws

Kyocera FS-1020D Specifications

General

Time to first page (black, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	20 ppm
Internal memory	16 MB
Processor model	Power PC 405
Built-in processor	Yes
Maximum internal memory	272 MB
Powersave acoustic emission	0 dB
Sound power level (standby)	32 dB
Sound pressure level (printing)	53 dB
I/O ports	Standard interface: High speed bi-directional parallel (IEEE 1284), USB 2.0 (Full speed), KUIO LV Option-Interface slot Multiple interface connection (MIC): MIC allows for simultaneous data transfer via up to three interfaces, with each interface having its own virtual printer.
Memory upgrade	Yes GB
Power supply type	220~240V @ 50/60Hz
Networking features	As optional: 10Base-T/100Base-TX, 10Base-FL, FibreLink, TokenRing STP/UTP, Wireless LAN - IEEE 802.11b, 10Base-T/100Base-TX/100Base-FX, FibreOptic, 10Base-2/10Base-T/100Base-TX, Optional
Standard input trays	Universal paper cassette, Multipurpose tray.
Duty cycle letter size (maximum)	15000 pages per month
Maximum print size	210 x 297 mm
Media weight (tray 1)	60 -105 g/m2
Maximum ISO A-series paper size	A4
Maximum input capacity	250 sheets

Weight and Dimensions

Dimensions (WxDxH)	378 x 375 x 235 mm
