2FM
1-6-7

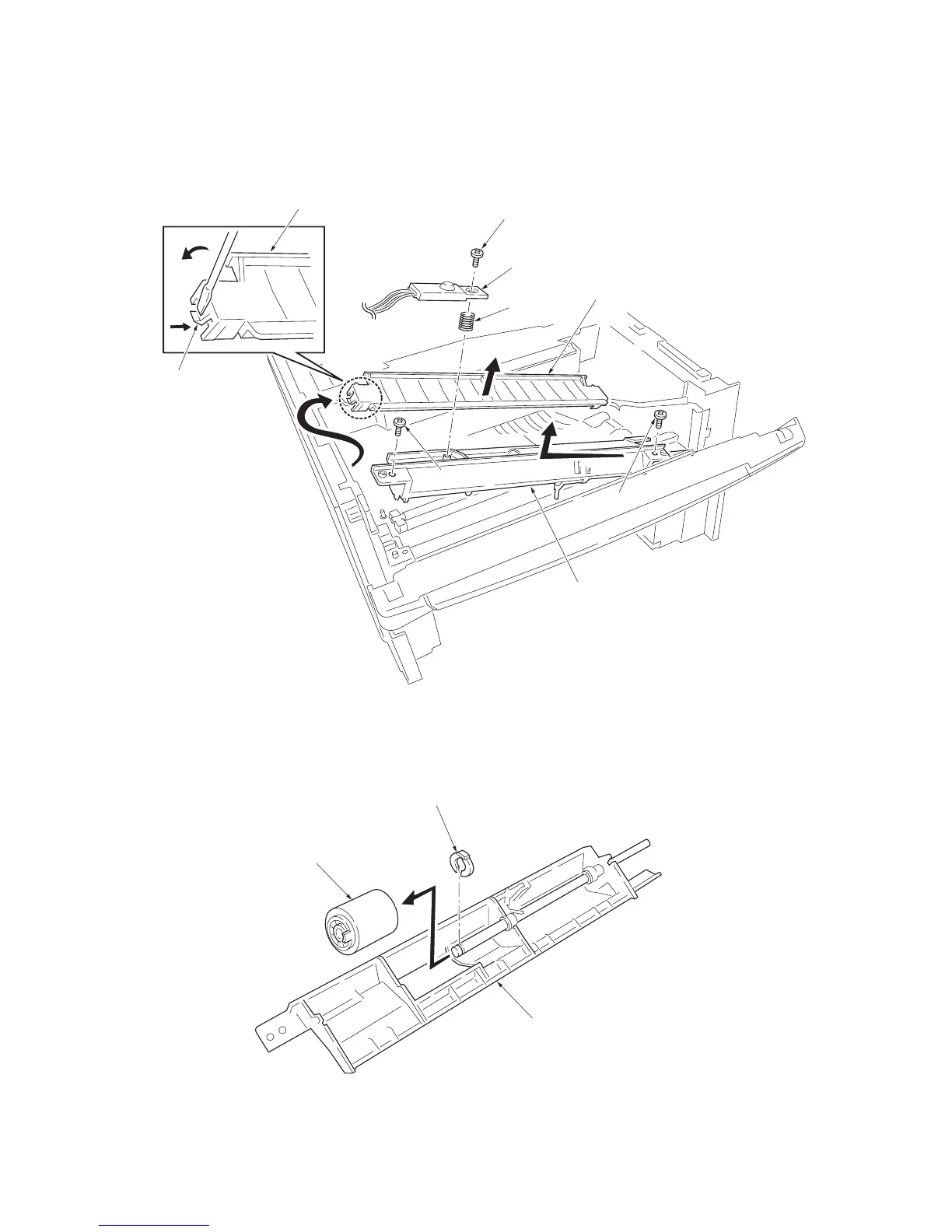

6. Remove one screw.
7. Remove the toner sensor and spring.
8. While pressing the latch by using the driver and then remove the paper guide.
9. Remove two screws and then remove the MP feed unit.
Figure 1-6-7 Removing the MP feed unit
10. Remove one stop ring and then remove the MP feed roller.
Figure 1-6-8 Removing the MP feed roller
Screw
Screw
Screw
Toner sensor
Spring
Paper guide
Paper guide
Latch
MP feed unit
MP feed roller
Stop ring
MP feed unit
