Kyocera FS-1370DN Service Manual

2L0-1
1-3-12
Service items Description
No. Items Description
7
cont.
(a) Cause of paper jam
10: Paper does not arrive at the registration sensor. [42] (MP tray)
10: Paper does not arrive at the registration sensor. [31] (Cassette 1)
10: Paper does not arrive at the registration sensor. [31] (Cassette 2)
10: Paper does not arrive at the registration sensor. [31] (Cassette 3)
10: Paper does not arrive at the registration sensor. [49] (Duplex conveying)
11: Paper does not pass the registration sensor. [48]
12: Paper remains at the registration sensor when power is turned on. [48]
20: Paper does not arrive at the exit sensor. [48]
21: Paper does not pass the exit sensor. [47]
22: Paper remains at the exit sensor when power is turned on. [47]
30: Paper does not arrive at the paper feeder 1’s PF paper feed sensor. [32](Cassette 2)
30: Paper does not arrive at the paper feeder 1’s PF paper feed sensor. [33] (Cassette 3)
31: Paper does not arrive at the paper feeder 1’s PF paper feed sensor. [32] (Cassette 2)
32: Paper remains at the paper feeder 1’s PF paper feed sensor when power is turned on.
[32] (Cassette 2)
40: Paper does not arrive at the paper feeder 2’s PF paper feed sensor. [33] (Cassette 3)
41: Paper does not pass the paper feeder 2’s PF paper sensor. [33] (Cassette 3)
42: Paper remains at the paper feeder 2’s PF paper feed sensor when power is turned on.
[33] (Cassette 3)
A1: Paper does not arrive at the exit sensor. [47]
A3: Paper does not pass the exit sensor. [49]
E0: Paper misfeed occurs due to forced stop when an error occurs during printing.
(such as opening of a cover) [00]
F0 to FE: Paper misfeed by another cause. [00]
Note:

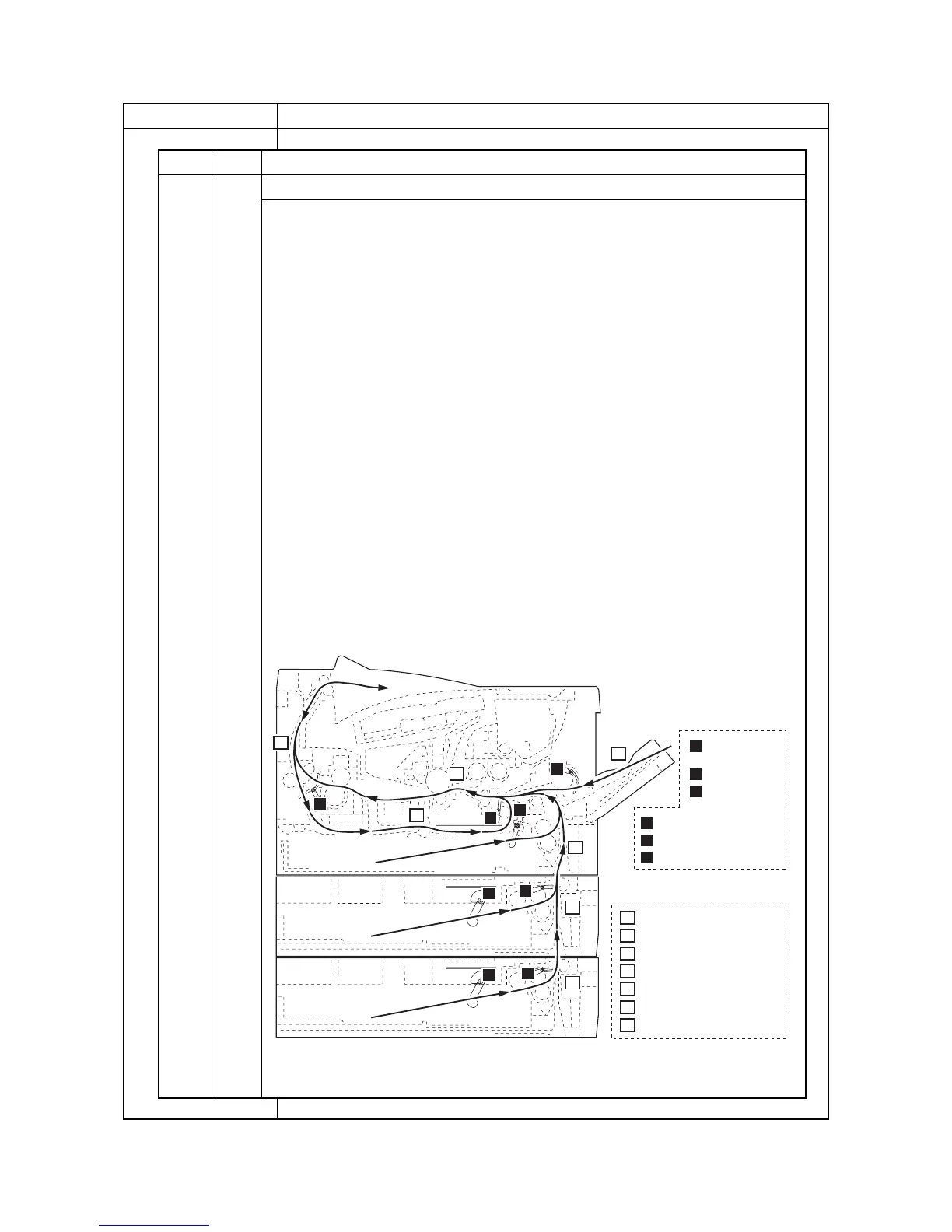

Within [ ] indicate paper misfeed locations. (Refer to figure 1-3-6 below.)
Figure 1-3-6
31
31
32
32
33
33
42
42
47
48
48
49
49
47
1
6
6
3
4
4
5
5
2
6
5
PF paper sensor
Cassette 1 (Printer)
Cassette 2 (Paper feeder 1)
Cassette 3 (Paper feeder 2)
MP tray
Fuser/paper exit section
Printer inside
Duplex/conveying section
Exit sensor
PF paper feed sensor
1
2
3
Registration
sensor
Paper sensor
MP paper
sensor
Sensors
Paper feeder 1
Paper feeder 2
Printer
Paper misfeed locations

Kyocera FS-1370DN Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Memory type	DDR
Memory slots	1
Processor model	440F5
Processor family	PowerPC
Maximum internal memory	1152 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	55 dB
Sound pressure level (quiet mode)	49 dB
Total input capacity	300 sheets
Maximum input capacity	800 sheets
Total number of input trays	2
Maximum number of input trays	4
Multi-Purpose tray input capacity	50 sheets
Mobile printing technologies	Not supported
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	11 W
Power consumption (printing)	554 W
Power consumption (PowerSave)	5.5 W
Printing colors	Black
Maximum duty cycle	50000 pages per month
Recommended duty cycle	2800 pages per month
Page description languages	Epson LQ, IBM ProPrinter, PCL 5e, PCL 6, PJL, PostScript 3
Display	LCD
Certification	GS, TUV, CE
Product color	Black, White
Custom media width	70 - 215.9 mm
Maximum print size	216 x 356 mm
Custom media length	148 - 356 mm
Duplex media weight	60 - 105 g/m²
Paper tray media types	Plain paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Standard interfaces	Ethernet, USB 2.0
Server operating systems supported	Windows 2000 Advanced Server, Windows 2000 Server, Windows MultiPoint Server 2011, Windows SBS 2011 Essentials, Windows SBS 2011 Standard, Windows Server 2003, Windows Server 2003 R2, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	393 mm
Width	375 mm
Height	267 mm
