FS-9120DN/9520DN
13. Attach the grid cleaner to the printer aligning
with the notches.
14. Gently pull the main charger unit as far as it
will go, push and pull it several times, and
then push it back in.
When the grid is clean, remove the grid
cleaner from the printer and dispose of it. The
grid cleaner is not reusable.

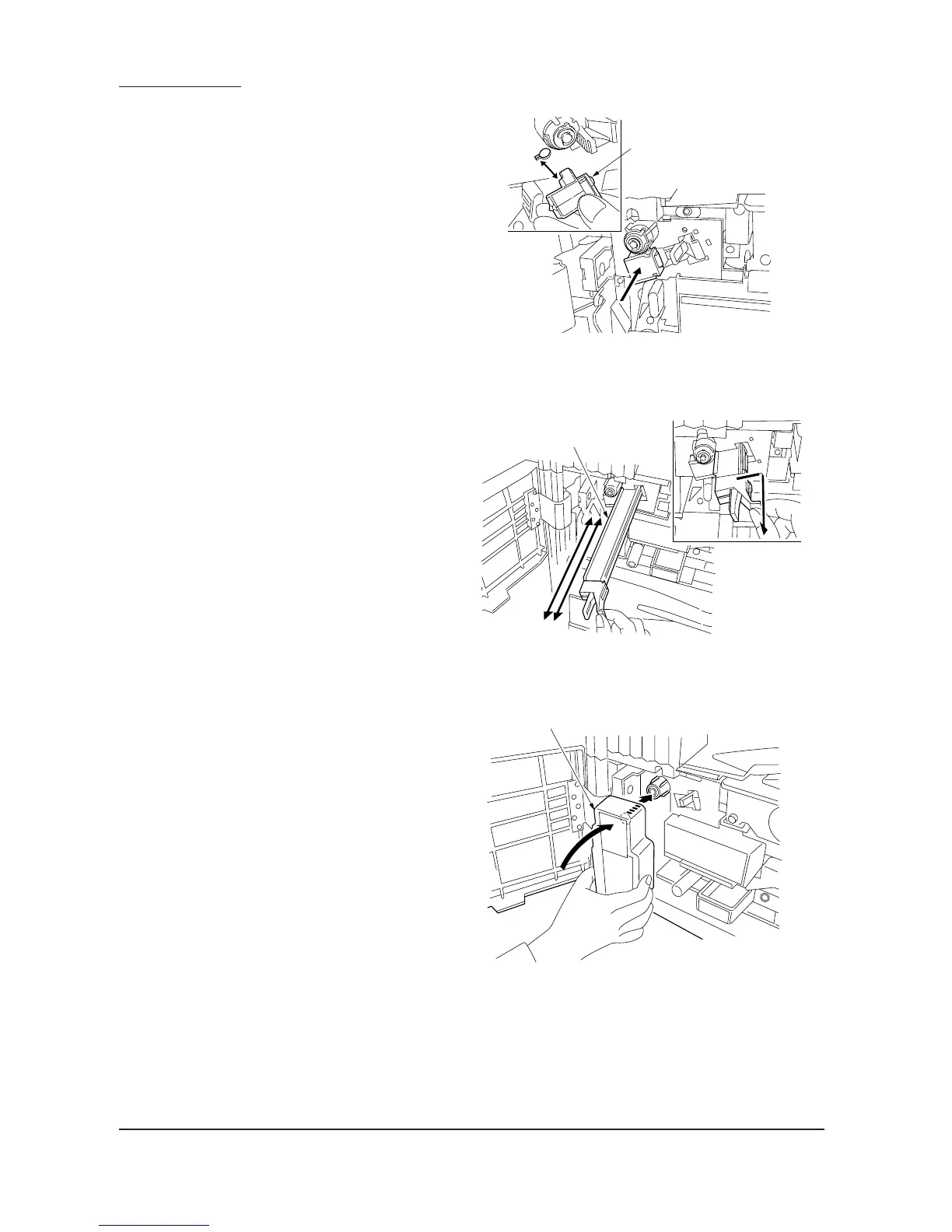

Figure 1-4-14
Figure 1-4-15
Figure 1-4-16
15. Fit the new waste toner box to the printer.
Waste toner box
Grid cleaner
Main charger unit
