Kyocera FS-C2626MFP

2M8/2M9
1-5-35

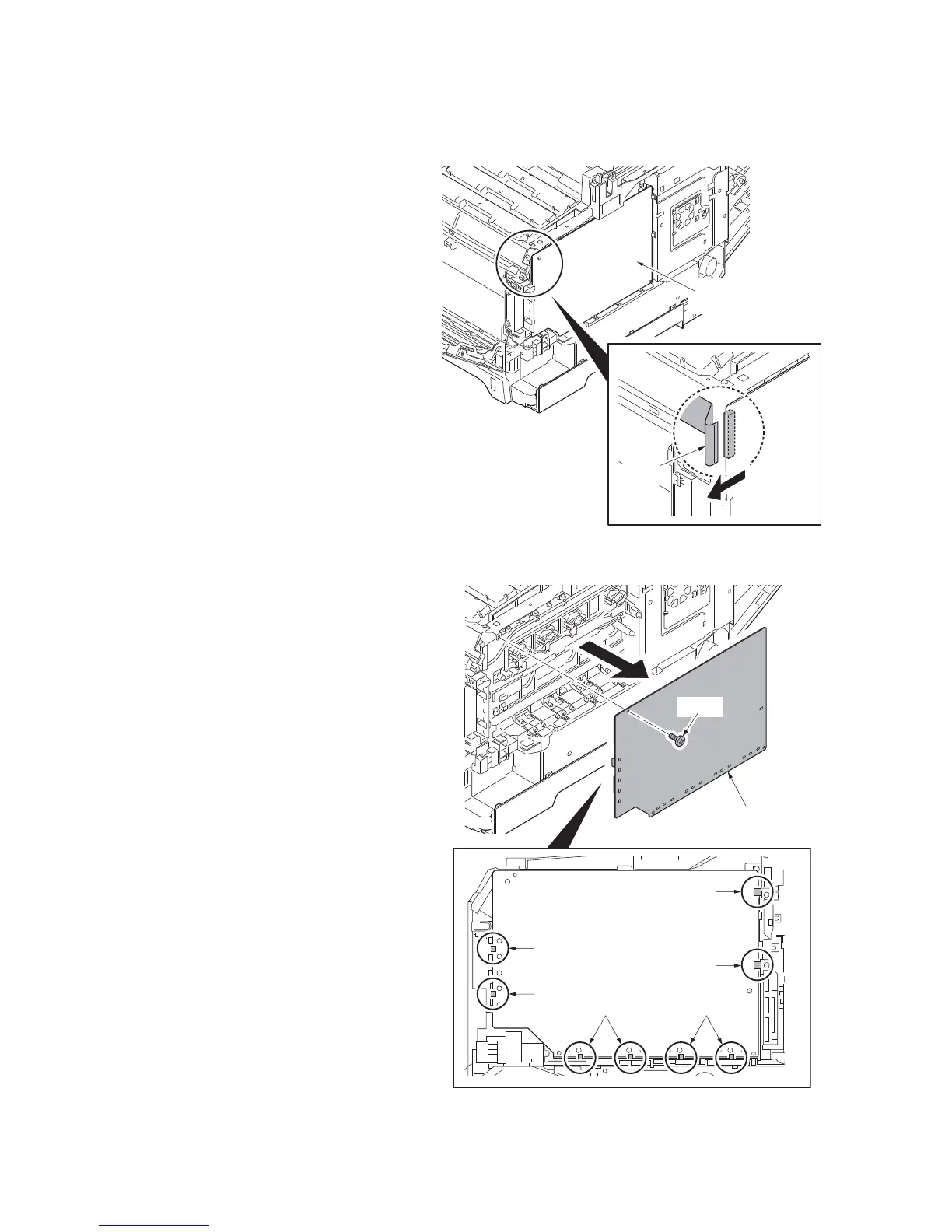

(4) Detaching and refitting the high voltage PWB
Procedure
1. Remove the right rear cover and right
cover (see page 1-5-6).
2. Remove the FFC from the high voltage
PWB.
Figure 1-5-52
3. Remove the screw.
4. Release eight hooks and then remove
the high voltage PWB.
5. Check or replace the high voltage PWB
and refit all the removed parts.
Figure 1-5-53
FFC
High voltage PWB
High Voltage PWB
Hook
Hook
Hook
Hook
Hooks
Hooks
Screw
