Kyocera FS-C2626MFP

2M8/2M9
1-5-65
(3) Detaching and refitting the power source inlet
Procedure
1. Remove the power source PWB (see
page 1-5-29).

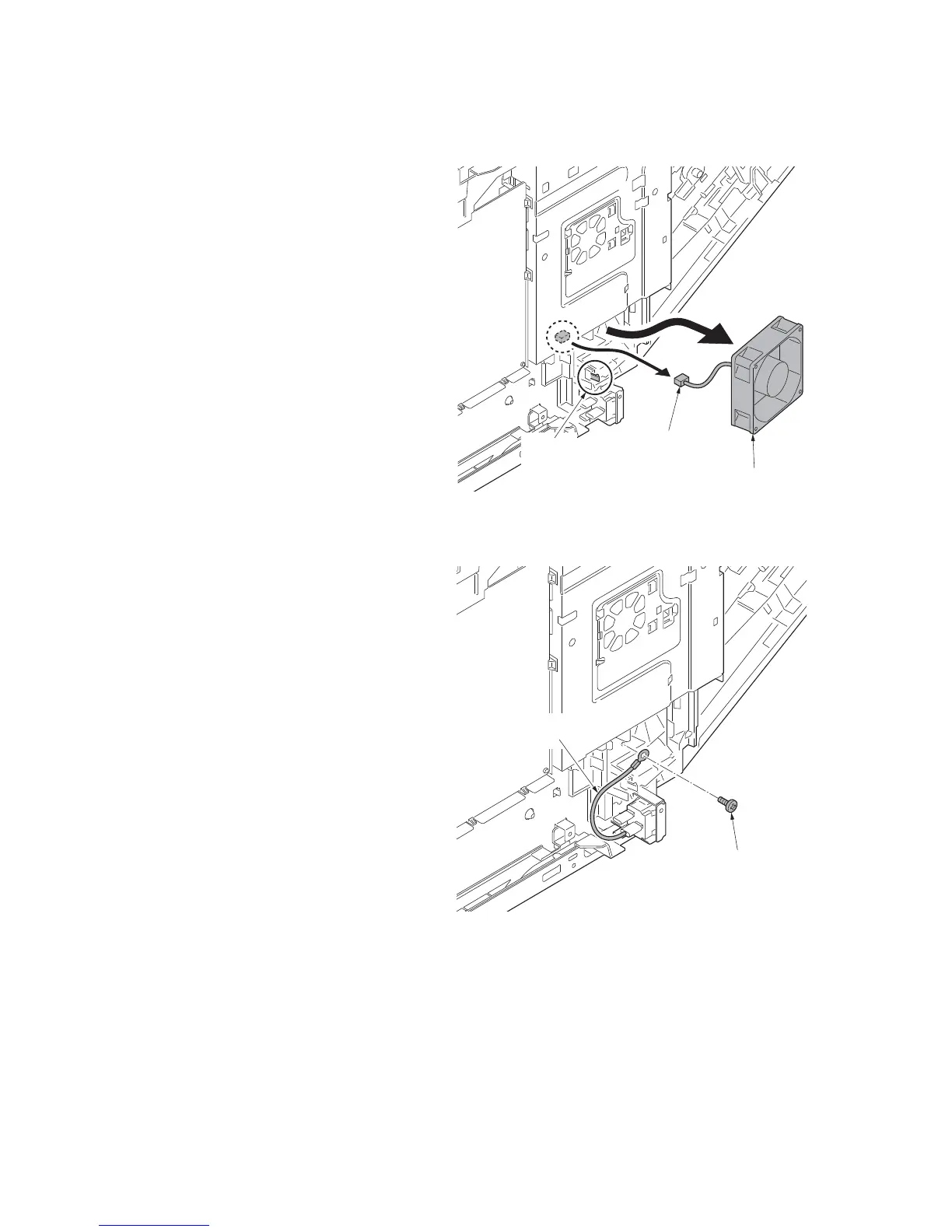

2. Remove the connector and release the
hook and then remove the right fan
motor.
Figure 1-5-100
3. Remove the screw of the grounding
wire.
Figure 1-5-101
Right fan moto
r
Connector
Hook
Screw
Grounding wire
