2-1-9 Document processor
(1) Original feed section
The original feed section consists of the parts shown in figure. An original placed on the original table is con-
veyed to the original conveying section. Original is fed by the rotation of the DP forwarding pulley and DP feed
pulley.

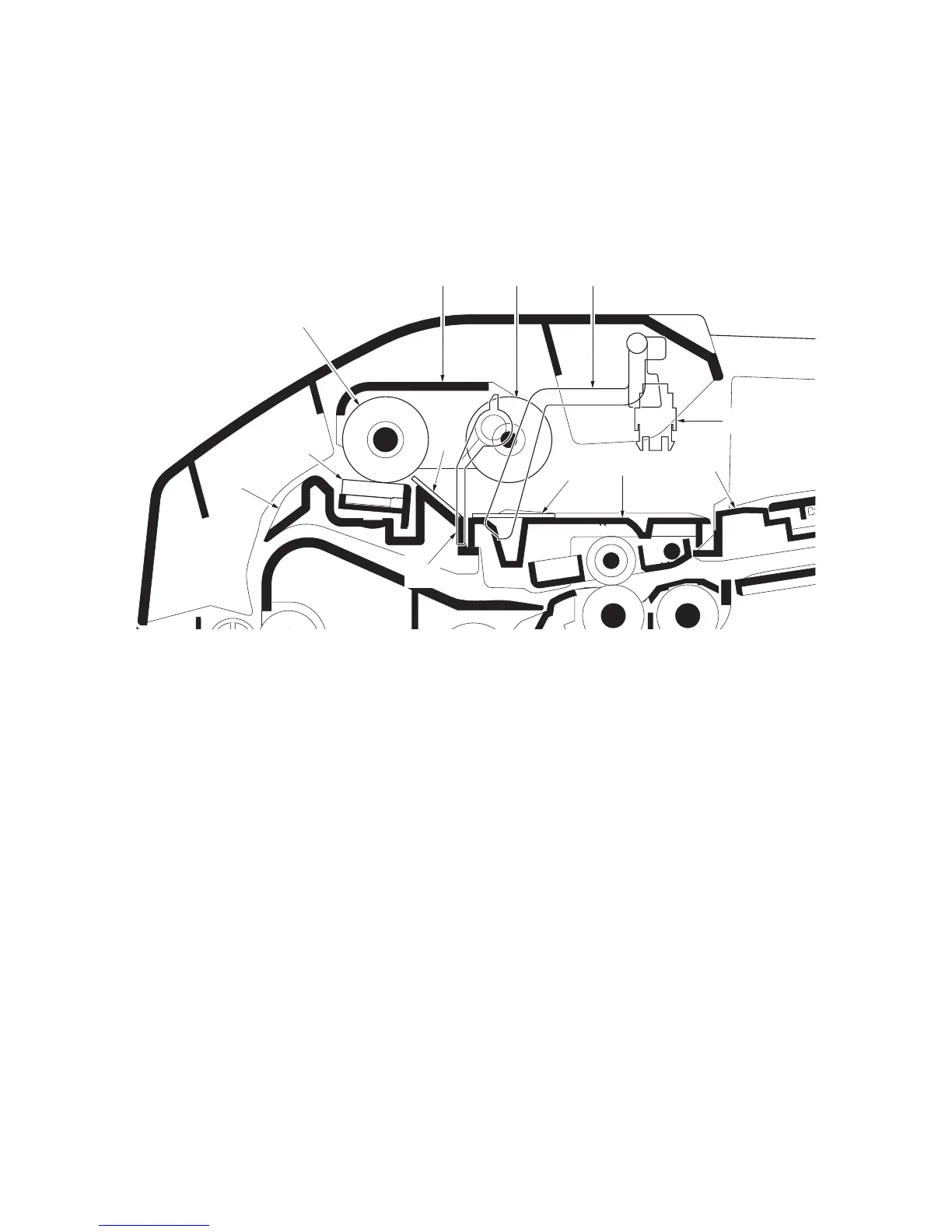

Figure 2-1-26 Original feed section
113 1
2
9
12
6
5
4
7
8
10
1. DP forwarding pulley
2. DP feed pulley
3. LF holder
4. PF stopper
5. Front separation pad
6. LF friction plate
7. DP separation pad
8. Upper guide
9. Switchback guide
10. DP original sensor (DPOS)
11. Actuator (DP original sensor)
12. Original table
