2M8/2M9-1
1-5-48
(2) Detaching and refitting the scanner unit
Procedure
1. Remove the document processor (see
page 1-5-52).
2. Remove five connectors and the FFC
from main PWB.
3. Open the scanner unit.

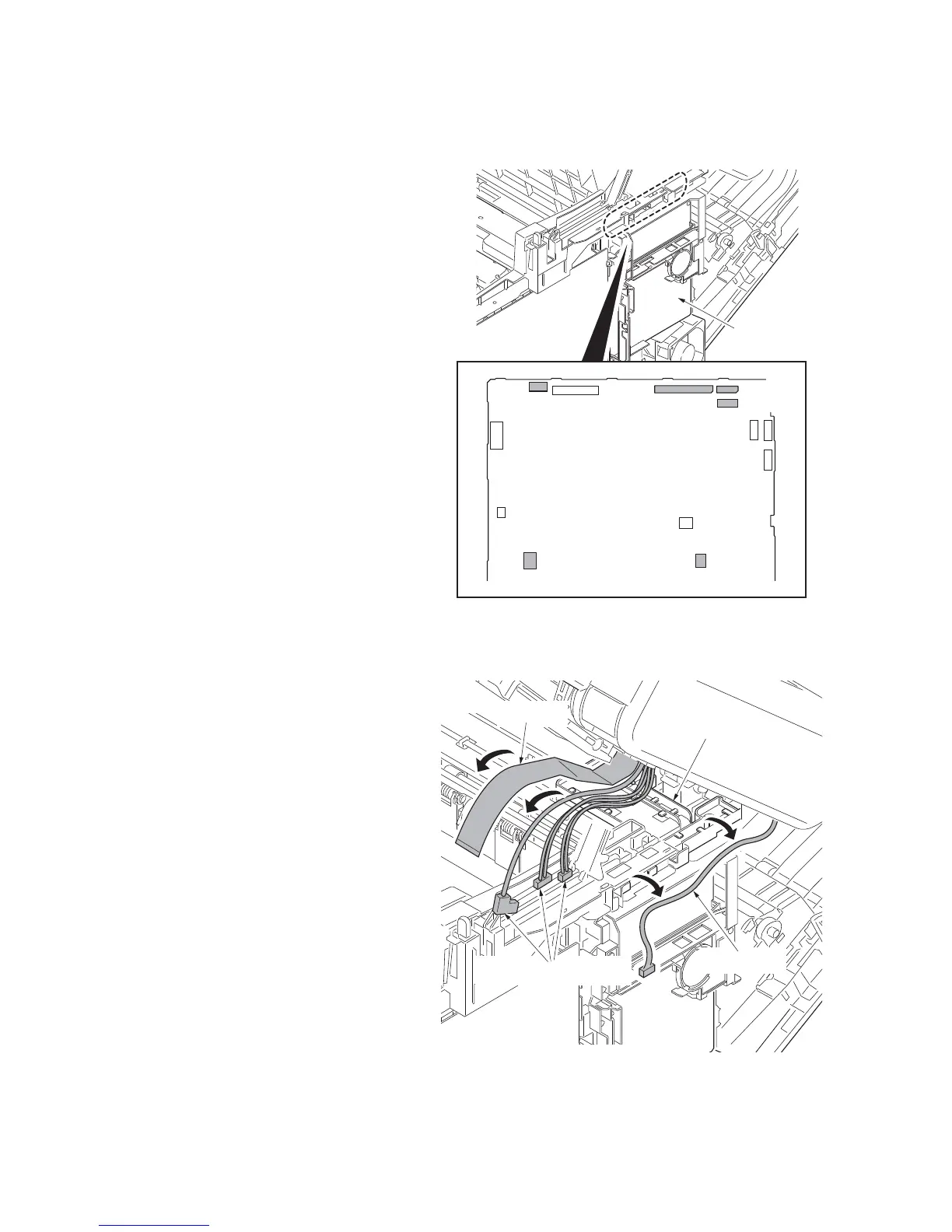

Figure 1-5-72
4. Remove the motor wire, CCD wire and
operation panel wires from the wire
holder.
Figure 1-5-73
YC36 YC8
YC100
YC102
YC101
YC108
Main PWB
Connectors of the main PWB
CCD wire
Moter wire
Operation panel wires
Wire holder
To Next Page
