2JL/2JJ/2JG/2JD
1-1-4
1-1-2 Parts names
(1) Body

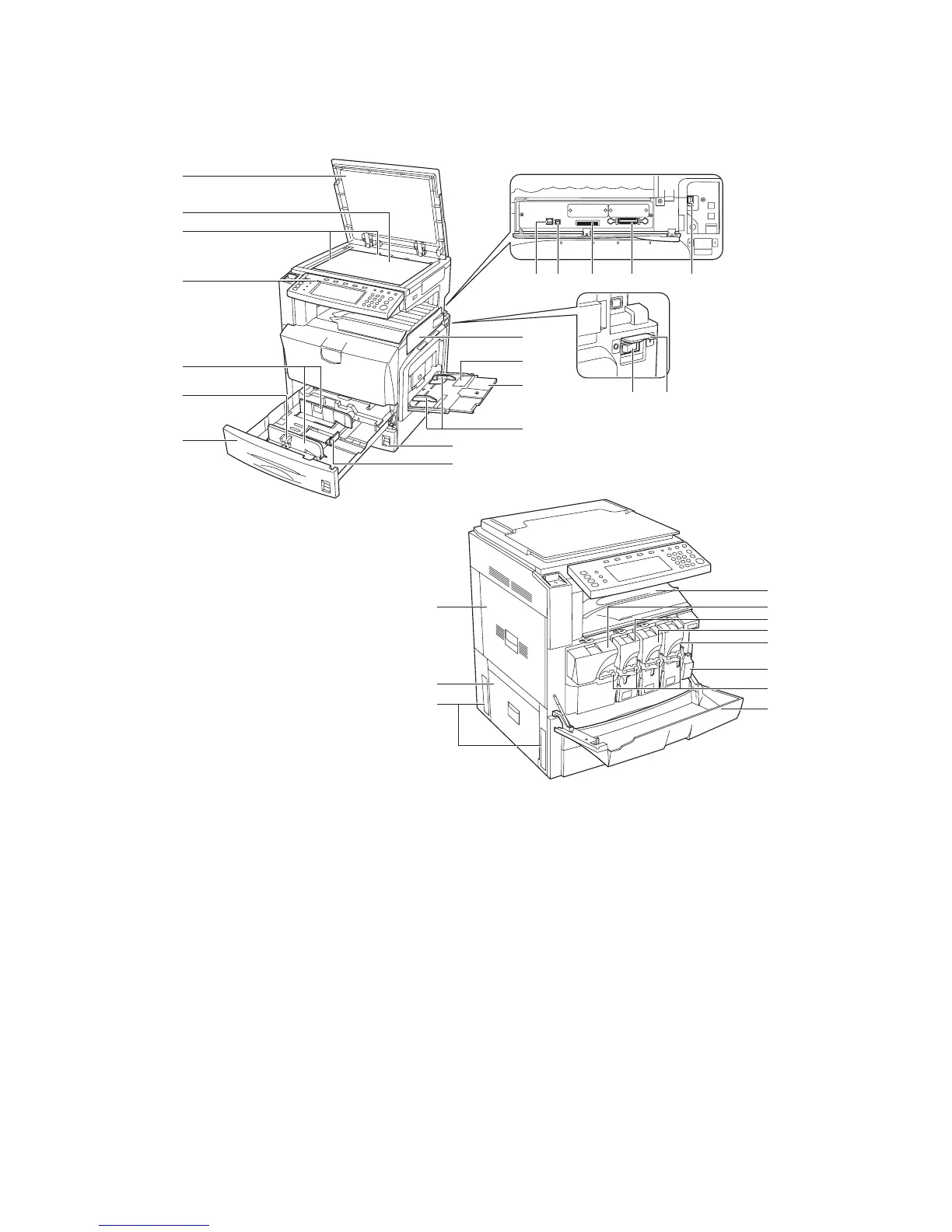

Figure 1-1-2
3
1
4
11
2
5
7
6
8
9
10
12
13
14 15 17 16 18
19 20
22
21
23
24
25
26
28
27
29
30
31
1. Original platen (option)
2. Contact glass
3. Original size indicator plates
4. Operation panel
5. MP tray (multi-purpose tray)
6. Sliders
7. MP tray extension
8. Cassette 1
9. Cassette 2
10. Paper length guide
11. Paper width guides
12. Paper width adjusting tab
13. Interface cover
14. Network interface connector (printer)
15. USB interface connector
16. Parallel port interface connector
17. Memory card (CompactFlash) slot
18. Network interface connector (scanner)
19. Main power switch
20. Main power switch cover
21. Output tray
22. Left cover 1
23. Left cover 2
24. Front cover
25. Toner container (black)
26. Toner container (yellow)
27. Toner container (cyan)
28. Toner container (magenta)
29. Toner container lock lever
30. Waste toner box
31. Carrying handles
