2JL/2JJ/2JG/2JD
1-1-6
1-1-3 Machine cross section

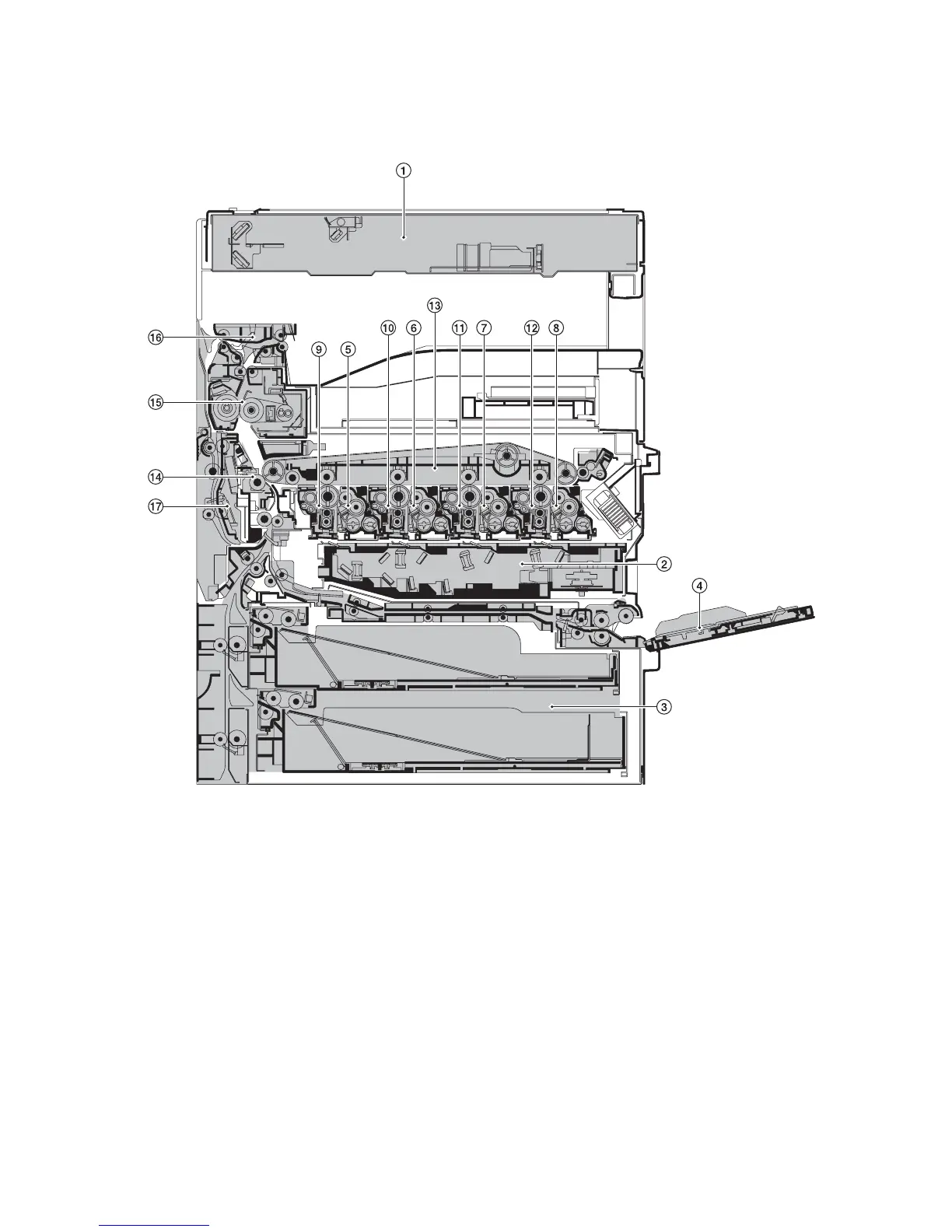

Figure 1-1-4 Machine cross section
1. Image scanner section
2. Laser scanner section
3. Cassette paper feed section
4. MP tray paper feed section
5. Developing section (Black)
6. Developing section (Yellow)
7. Developing section (Cyan)
8. Developing section (Magenta)
9. Drum section (Black)
10. Drum section (Yellow)
11. Drum section (Cyan)
12. Drum section (Magenta)
13. Primary transfer section
14. Secondary transfer/separation
section
15. Fuser section
16. Eject/feedshift section
17. Duplex section
