1-2-6 Installing the network interface card (option)
Procedure
1. Turn the main power switch off and discon-
nect the power cord plug from the AC outlet.
2. Open the interface cover.
3. Remove the two screws and then remove
the slot cover of slot (OPT).
4. Insert the network interface card into the slot
(OPT).
Secure the network interface card using the
two screws.
5. Connect the network cable.
Configure the network interface card. (See
the operation guide.)

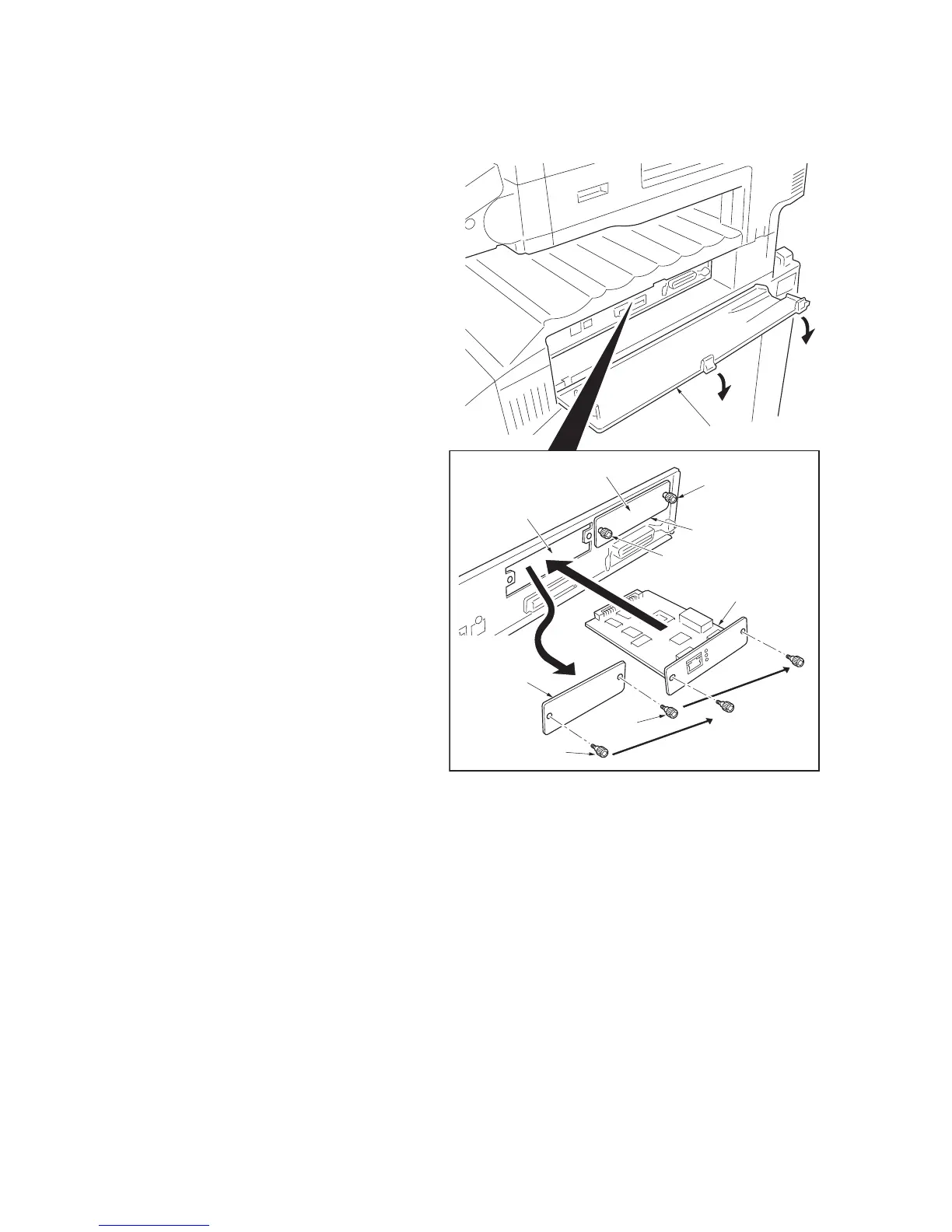

Figure 1-2-27
Interface cover
Screw
Screw
Screw
Screw
Slot cover
Slot cover
Slot (OPT)
Slot (HDD)
Network interface card
