1-2-4 Installing the memory (option)
Procedure
1. Turn the main power switch off and discon-
nect the power cord plug from the AC outlet.
2. Open the interface cover.
3. Remove the CF cover.
4. Remove the two screws and then remove
the printer PWB.
Remove the PWB carefully not to allow its
bottom come in contact with the three pro-
trusions on the interface cover.

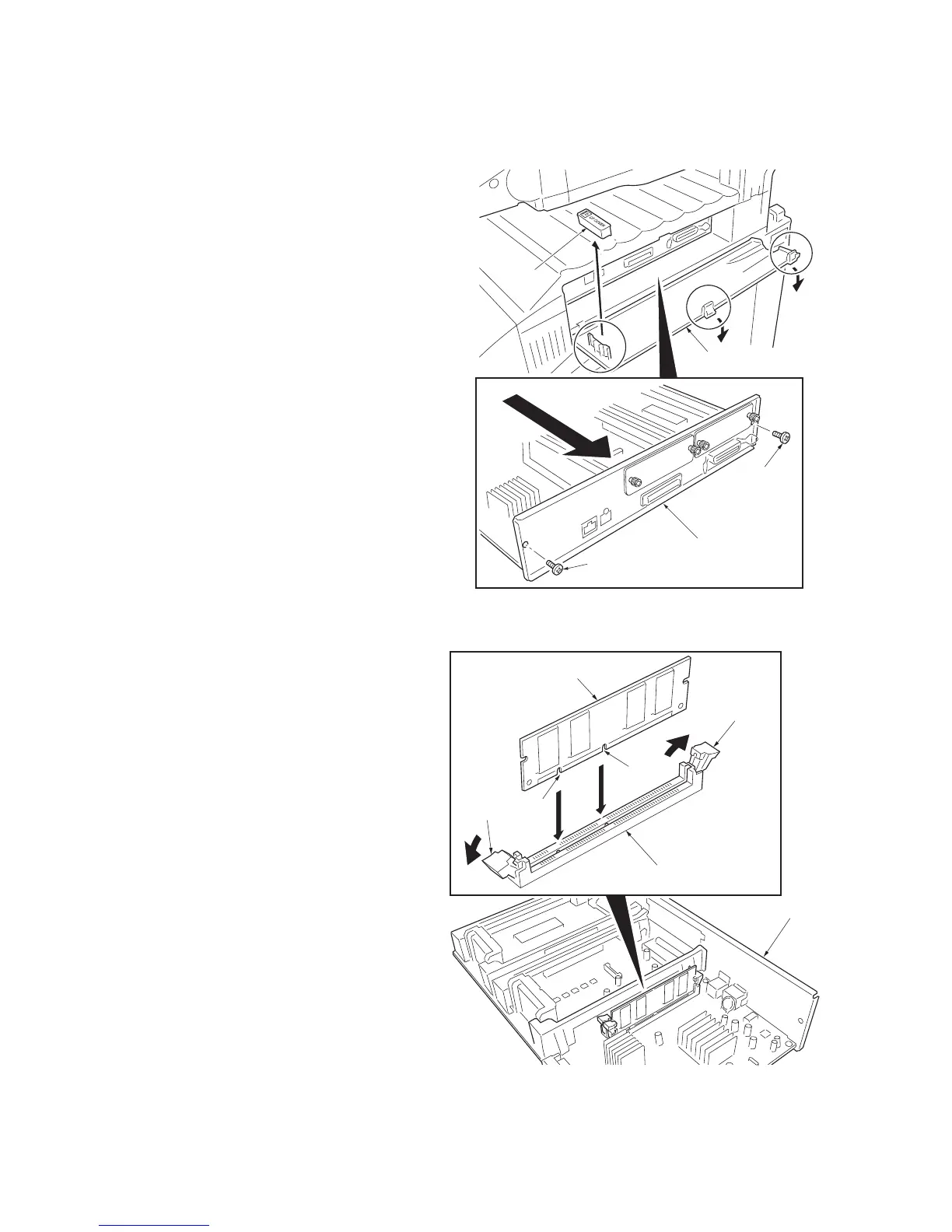

Figure 1-2-24
5. Open the clips on both ends of the memory
socket.
6. Insert the memory into the memory socket,
so that the notches on the memory align
with the corresponding protrusions in the
memory socket.
7. Close the clips of the memory socket to
secure the memory.
8. Refit and secure the printer PWB using two
screws.
Refit the PWB carefully not to allow its bot-
tom come in contact with the three protru-
sions on the interface cover.
9. Refit the CF cover.
10. Close the interface cover.
Figure 1-2-25
Interface cover
Screw
Printer PWB
Screw
CF cover
Memory
Memory socket
Notch
Notch
Clip
Clip
Printer PWB
