2JL/2JJ/2JG/2JD
1-5-23
If manual color registration has failed:
9. If the balance between V-1 and V-5 is more than 2 scales (sample 1) or less than -2
scales (sample 2), perform the following steps:

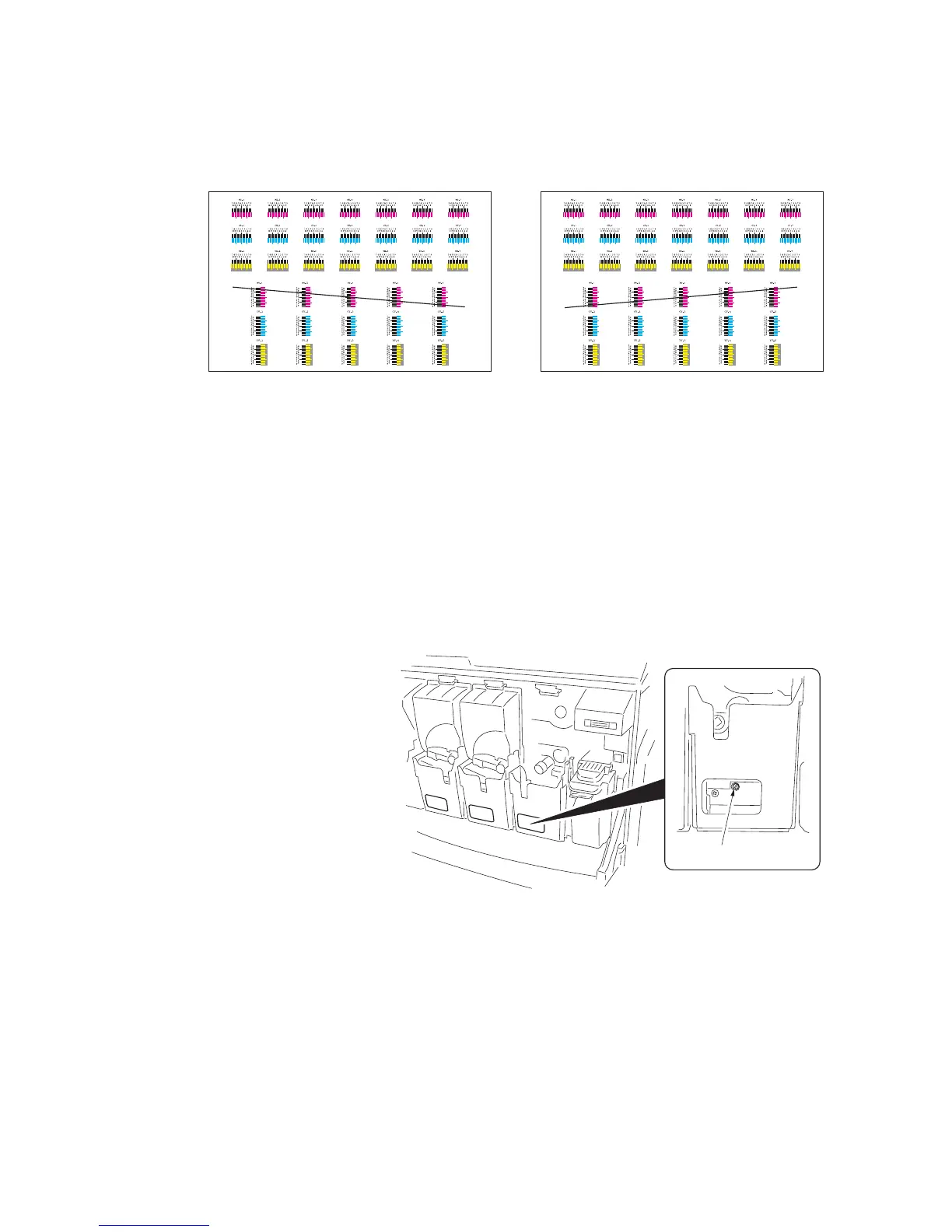

Figure 1-5-48
10. Open the front cover and remove the toner container which corresponds to the color
in adjustment.
11. Rotate the adjustment knob using a 5 mm hex wrench.
Direction of rotation
(V-1 - V-5) >= 2 scales (sample 1): rotate counterclockwise.
(V-1 - V-5) <= -2 scales (sample 2): rotate clockwise.
Number of rotation
(V-1- V-5) x 2 clicks
12. Refit the toner container and close the front cover.
13. Turn the main power switch off and on. Correction automatically starts.
14. Print a reference chart and verify the result.
Figure 1-5-49
V-1
Sample 1
V-2 V-3 V-4 V-5 V-1
Sample 2
V-2 V-3 V-4 V-5
adjustment knob
To Next Page
