2JL/2JJ/2JG/2JD
1-5-31
1-5-7 Other

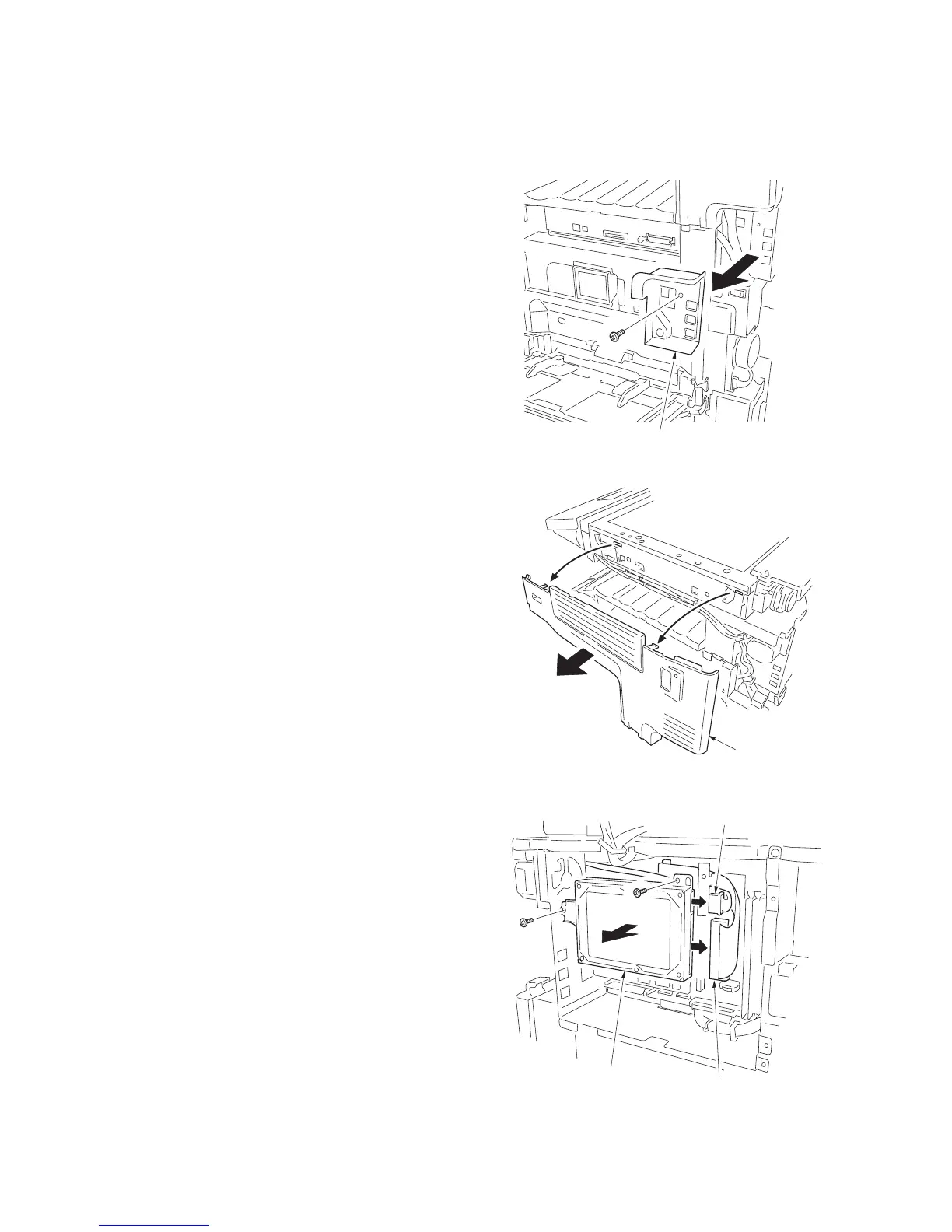

(1) Detaching and refitting the engine PWB
Follow the procedure below to replace the engine PWB.
Procedure
1. Remove the original platen or DP.
2. Remove the rear cover, front left cover 1,
upper left cover, scanner left and right cov-
ers and contact glass (see page 1-5-8).
3. Remove the interface cover and right cover
(see page 1-5-4).
4. Remove one screw and then remove the
interface rear cover.
Figure 1-5-64
5. Remove the inserted parts and remove the
upper right cover.
Figure 1-5-65
6. Remove two screws and connectors, and
then remove the hard disk.
Figure 1-5-66
Interface rear cover
Upper right cover
Hard disk
Connector
Connector
To Next Page
