4 INSTALLING PRINTER DRIVERS FOR MACINTOSH
100 Installing the Printer on Mac OS X 10.2.4 to Mac OS X 10.5.x
y External LCF
Not Installed — Select this when no external LCF is installed.
Installed — Select this when the external LCF is installed.
6
Click [Continue].
The printer is added to the Printer List.

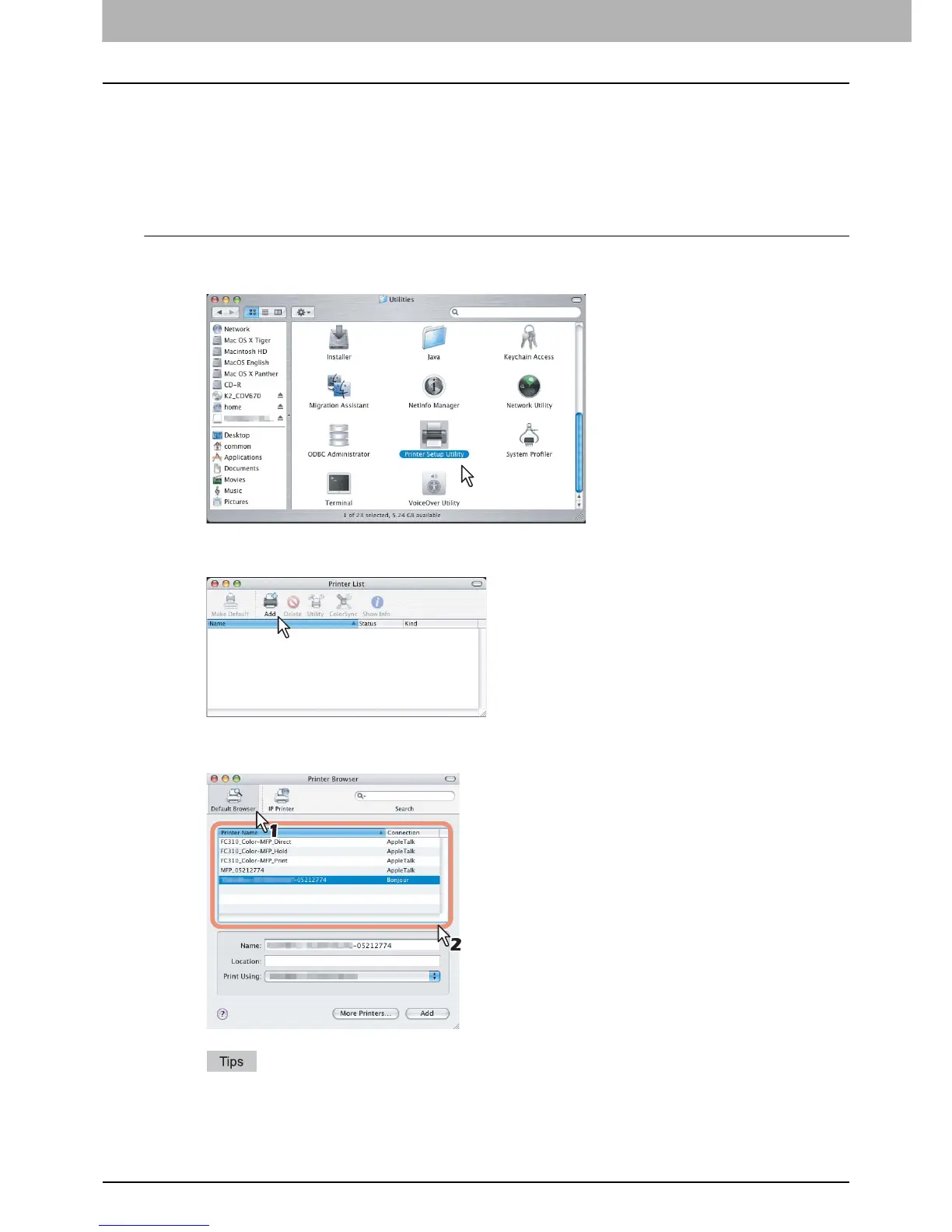

Configuring Macintosh Bonjour printing
1
Start the Printer Setup Utility located in the “Applications:Utilities” folder in the Boot
Disk.
The [Printer List] dialog box appears.
2
Click [Add].
3
Click [Default Browser] and select the equipment of the Bonjour connection displayed
in the list.
y In the [Name] box, the device name that you selected in the list is automatically displayed.
y When you select the equipment in the list, the correct PPD file is automatically selected in the [Print Using]
box. If the correct PPD is not automatically selected, select [HS Series] in the “Print Using” drop down
menu and select the PPD file displayed in the list.
To Next Page
