49

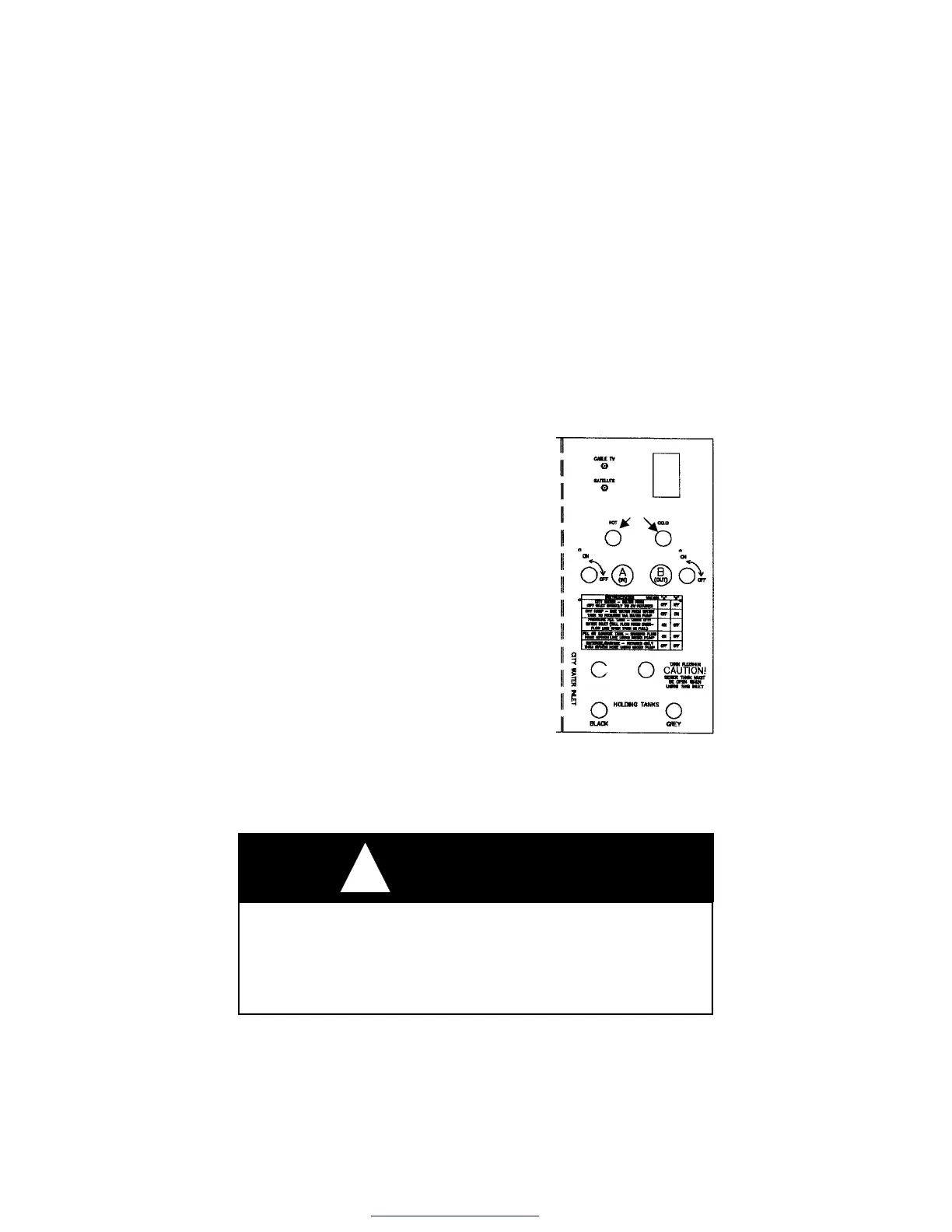

C. Water Control Panel. This panel is located in the baggage
compartment on the left side. By observing the labels by each
Item, matched with the following chart, figure 4, you will be able
to identify each item and it’s use.
1. Is where you attach a hose from water Figure 4
source to fill the plumbing system
fully which is referred to as “city water
hookup”.
2. Is a valve, normally in close ( off )
position. To fill fresh water tank, open
this valve. When tank is full, close valve.
3. Is a valve normally in close position.
Only open when water pump is used to
draw water from fresh water storage
tank. This valve is closed when siphon
hose is used to winterize unit.
4. Faucet assembly, hot and cold, to be
used as “outside shower” to wash off
dirt before entering unit.
5 & 6. Are valves attached to waste
holding tanks. These valves
are normally closed. The only time
these valves are open, is to
drain the waste holding tanks.
7. Is a fitting to attach hose, to rinse out waste holding tanks.
Never begin to rinse until all wastes have been drained.
Excessive pressure from water supply systems may be encountered in
some parks, especially in mountain regions. Water pressure regulators are
available to protect your system against such high pressure. A regulator at
45 pound rating is recommended to prevent damage to the plumbing sys-
tem or components.
CAUTION
!
4
2 3
1 7
5 6
