Fuel Cell ( Option )
The fuel cell system was developed for each owner to carry
gasoline in a tank or tanks installed under the frame between two
special cross members welded to the frame. The tank is attached
with three cross bars bolted to the frame members with grade # 5
bolts and nuts. Fuel in the single tank will supply gasoline for any
toys having a gasoline motor. Rear tank will have a pump, hose,
and discharge nozzle. Hose and nozzle will be in a caged
compartment, under the floor and attached to main rail of frame
.
Power for the pump is supplied by a 12 volt battery, or convertor
when 120 AC power is available. It is fused through the 12 volt
panel in the load center.
Switch for pump is inside of a 4” by 6” compartment in front or just
behind gas fill ,located on sidewall. Gauge for tank is also in this
compartment. Switch must be: ON” to register quantity of gasoline
All required hoses, along with vents are installed. Place nozzle into
tank and squeeze handle to release fuel into desired container.

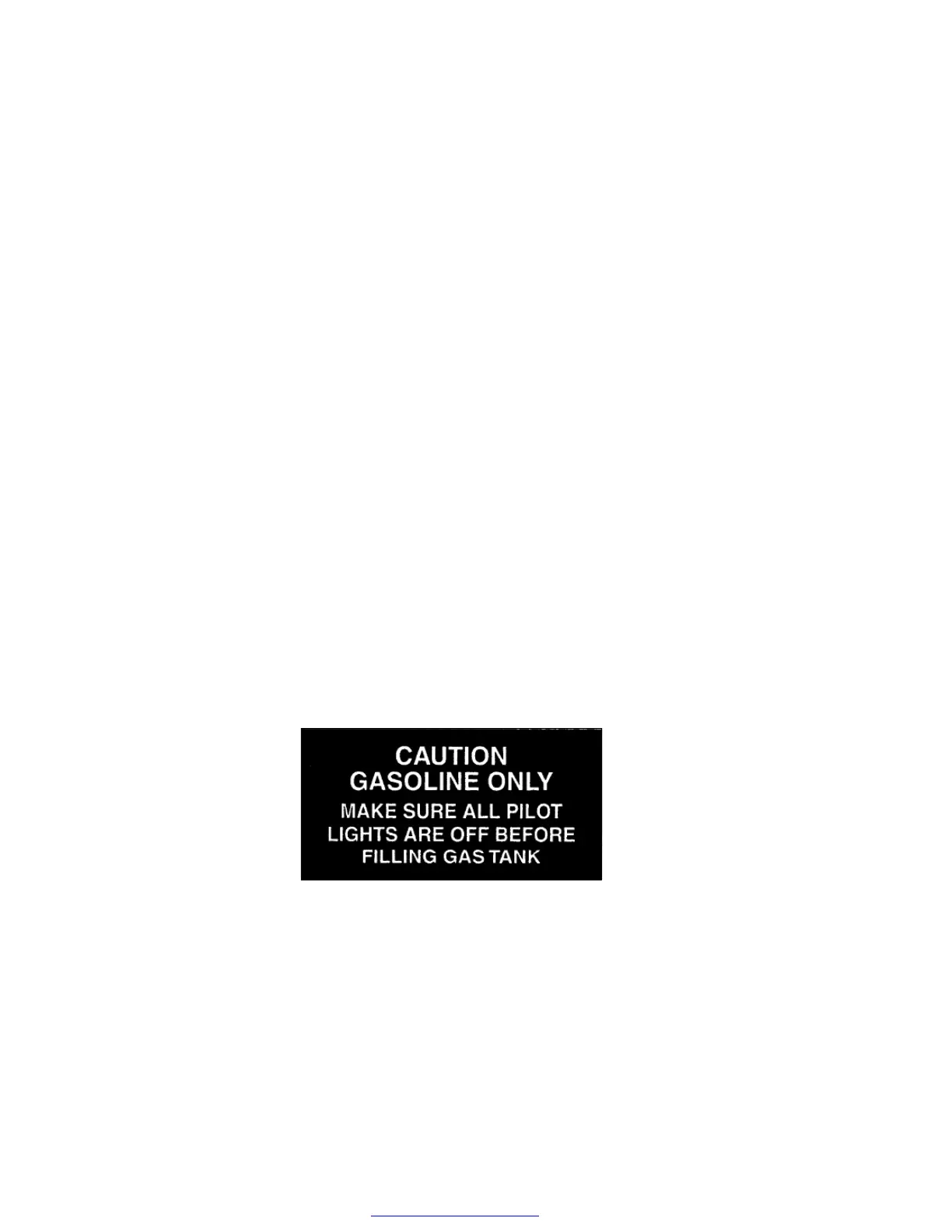

WARNING: The nozzle DOES NOT have a “automatic shut-off”
on it.
Front tank is for optional generator and feeds generator only.
DO NOT fill over 90% of tank total volume.
OPERATING pump for more than 5 minutes with nozzle closed will
reduce motor and pump life..
