72

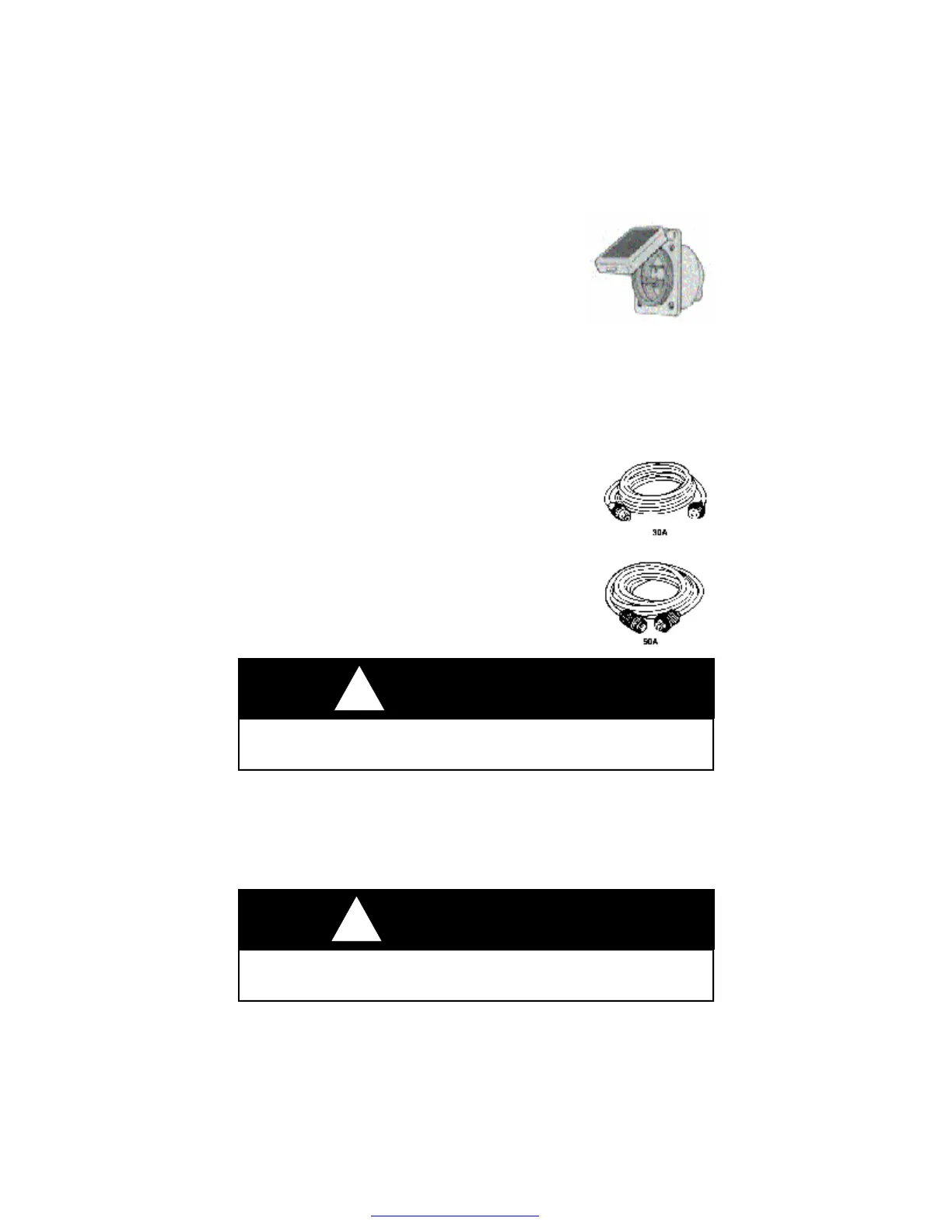

For units that have 30 Amp or 50 Amp power
cords that are detachable from the inlet
connection as shown, the cords are to be stored
inside of the unit when not in use. This cord
places 120 AC volt power into your main breaker
distribution center, as built into your coach.
Energy will enter through the main breaker and is distributed
through circuit breakers to the wall receptacles and appliances. This
power cord will be approximately 26 to 28 feet in length. Each cord
has the correct gage of wire to carry the correct voltage to the
coach.
In some hookups the power cord may not be long
enough and extension cords are required. Always
use a cord with the gauge of wire equal to or
greater then the power cord. Should you use a
cord with a smaller wire gauge, overheating, loss
of amperage, and possible melting could occur.
DO NOT leave any unused portion of an extension
cord in a “coil” as it may overheat, short-circuit
wires and potentially destroy your extension cord.
Circuit Breakers and Box
On a 30 amp system, a maximum of six distribution circuits are
permitted. All breakers are sized according to power needs on each
line.
Do not replace breakers or fuses with any that are rated at a higher
amperage. Over fusing may cause a fire by overheating the wire.
WARNING
!
Never use a “cheater” plug or extension cord which breaks the continuity of
the ground circuit to the grounding pin.
WARNING
!
