CHAPTER 4
SYSTEMS
WATER AND DRAINAGE PLUMBING
Your KZ recreational vehicle has a complete water system, to carry
fresh water, as well as holding tanks for used water. Each group
has its own explanation along with its own operation.
Fresh Water System
Tank
Water containers are installed under the coach between frame
members and protected with a cover.
Each storage tank has an overflow line. DO NOT install a shut-off
valve at lower end of line. If unit had a shut-off valve, and the valve
is closed when filling the tank, the tank would split open.
Filling Fresh Water System
To place water into your coach fresh water system use one
of these methods:
1. City Water Fill (Figure 1): Water may be received into
the system through a direct hook-up referred to as a
“city water fill.” After attaching a hose to hook-up and
supply line, open the faucet from the supply line. Enter
the coach and open any faucet to relieve air from the
lines. The water heater will fill first before the supply lines. You
will experience some air pockets. Allow them to escape before
closing faucets.
2. Gravity Water Fill (figure 2): To place water into the
fresh water tank, remove cap from the fill. Insert a hose
into the 1-1/4 inch flex tube 4 to 6 inches. Open the
water supply faucet. DO NOT overfill the tank as it will
break. It is not designed to hold pressure.
3 During the tank filling process, check the Tank
Monitor Panel (if applicable).

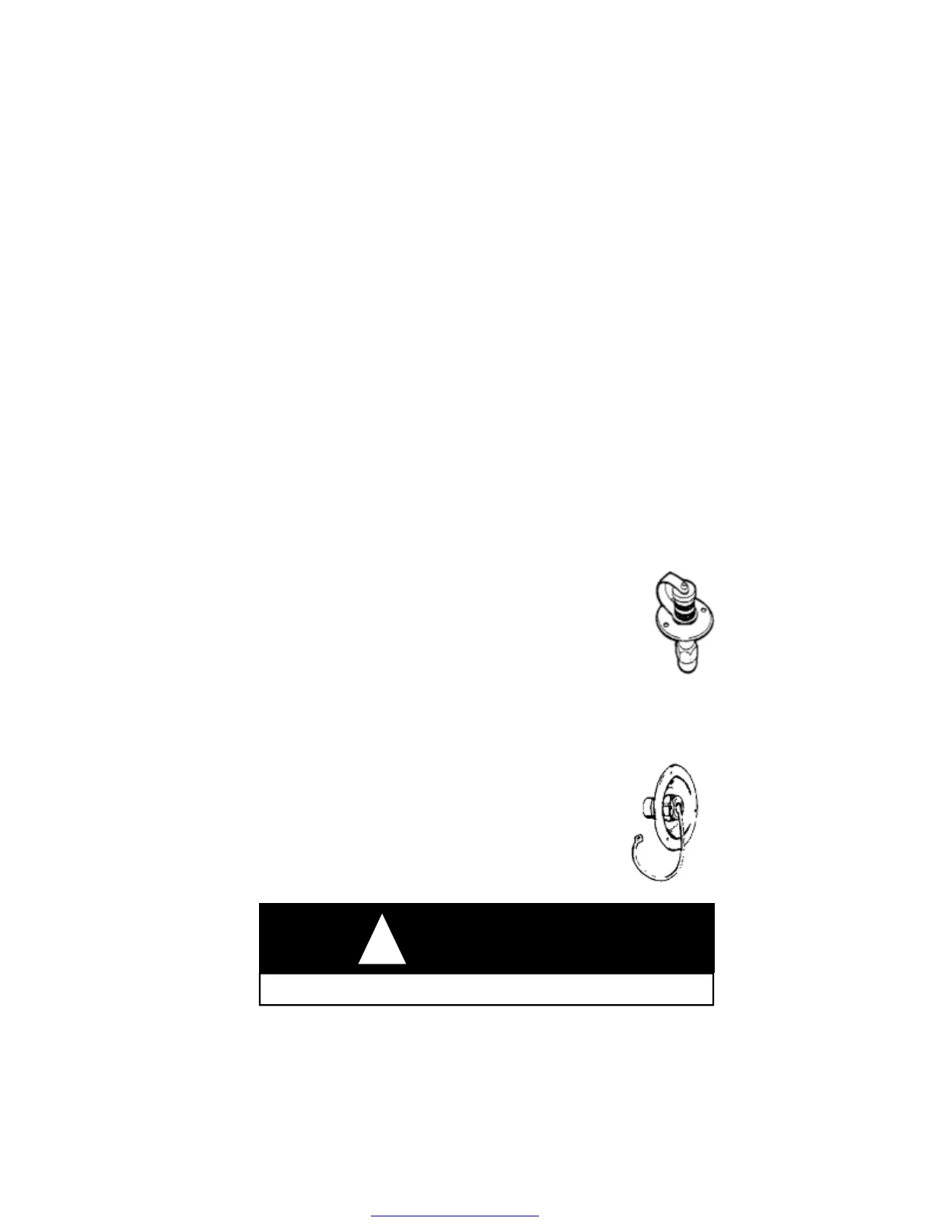

Figure 1
DO NOT leave tank unattended while filling.
CAUTION
!
Figure 2
