45
convertor option.

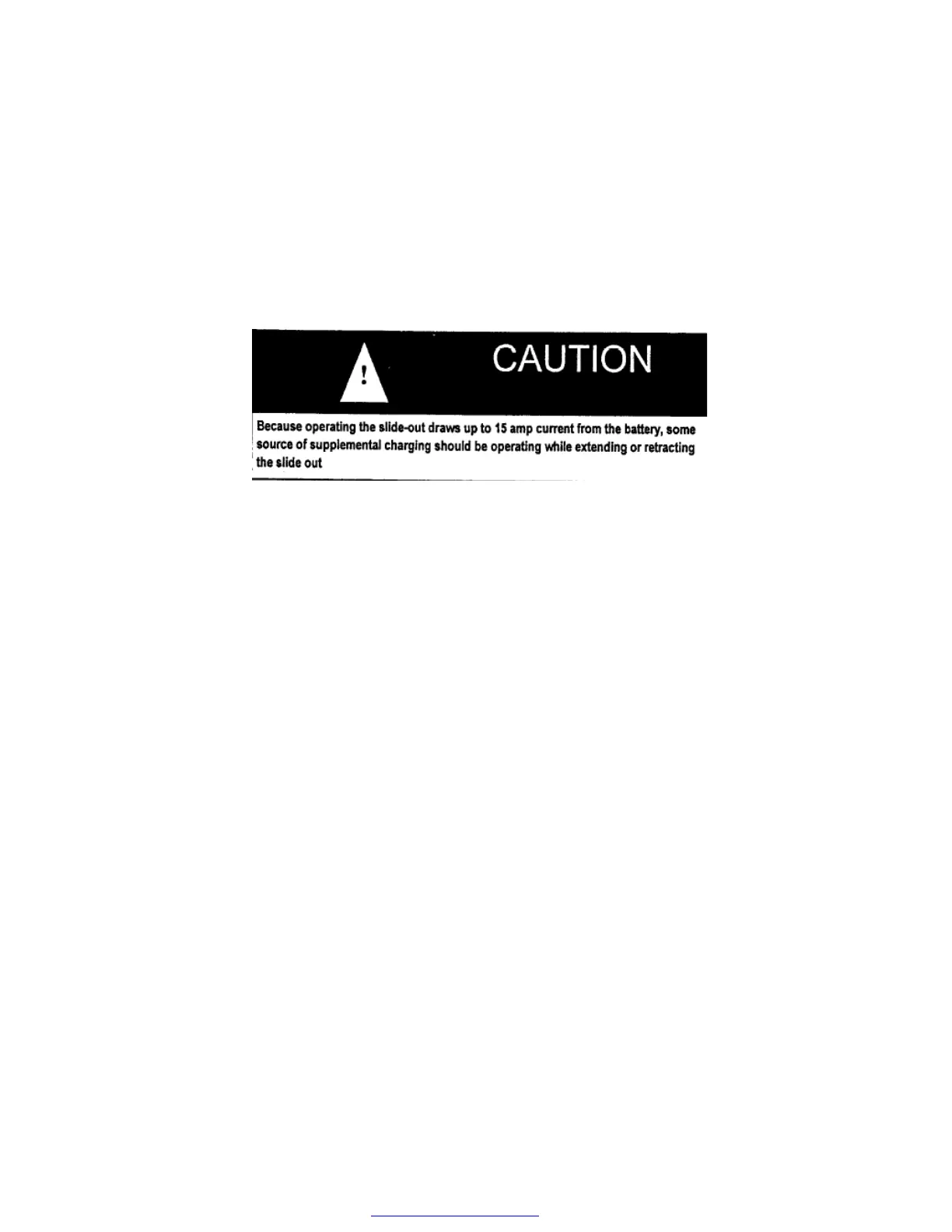

2. Use 12 volt power through the tow vehicle to the recreational
vehicle battery or batteries.
Either of these methods will help ensure maximum electrical power
for the slide-out motor, as well as maintain your battery
Trailer Set Up Requirements—General
Note:
1. Before operating the slide-out room, level the trailer front to rear
and side to side.
2. Extend all stabilizer jacks to make solid contact with the ground
and/or on solid blocks. Placing stabilizer jacks onto a hard
surface allows the coach to remain square and assure a good
weather tight seal between the room and trailer sidewall
Below Floor Slide System (BFS)
Mechanical Components
Under floor slide-out mechanism steel bars are welded to the frame
members. A gear track is welded to bottom side of cross member,
matching with a flat gear attached to drive shaft, “LCS (Lippert
Component System). With the “VS” ( Venture System) uses a gear
with round holes stamped into a cross member. Operation on both is
identical. As motor turns, a ram moves the gear on the track. A
cross shaft, from front to rear ram, connects the second ram moving
the opposite end of slide. Mechanism operates the same, flush or
standard floor.
