Above Floor Slide-Out (AFS)
This system also operates on an inside ram assembly on a track
moved by a gear. Ram is attached to the floor and side wall with a
moving track attached to the slide-out. On larger slides, two rams
will be used with cross shaft connecting the two rams. A steel frame
carriage style is used on some models, doing same function
generally as a 12’ slide. Access to all these components is inside of
coach, under slide floor.

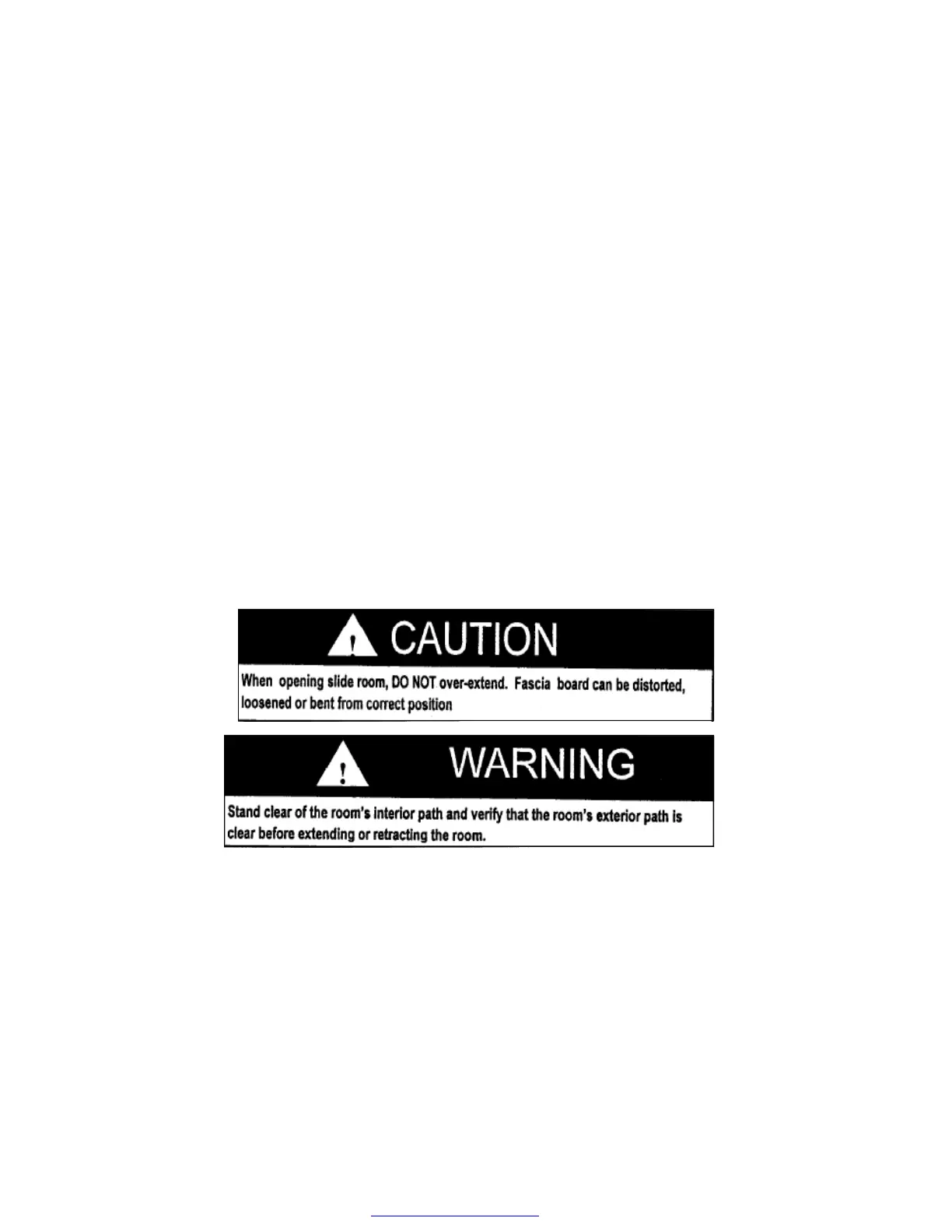

Open: Hold operation switch until room seals tightly on the exterior
of the unit. DO NOT distort or bend the exterior flanges or interior
fascia by holding the switch in the “ON” position.
Close: To retract, reverse the procedure and hold button until the
room is fully inside with gaskets sealing to the outer wall. It takes
about 20 seconds to move slide in or out.
KZRV does not require or suggest blocking, supports, jacks, etc. to
be used under slide-outs during extended normal use
Electrical Components
A 12 volt DC motor is located between main rails of frame on BFS
system . On the AFS system it will be under the floor of the sofa or
dinette.
