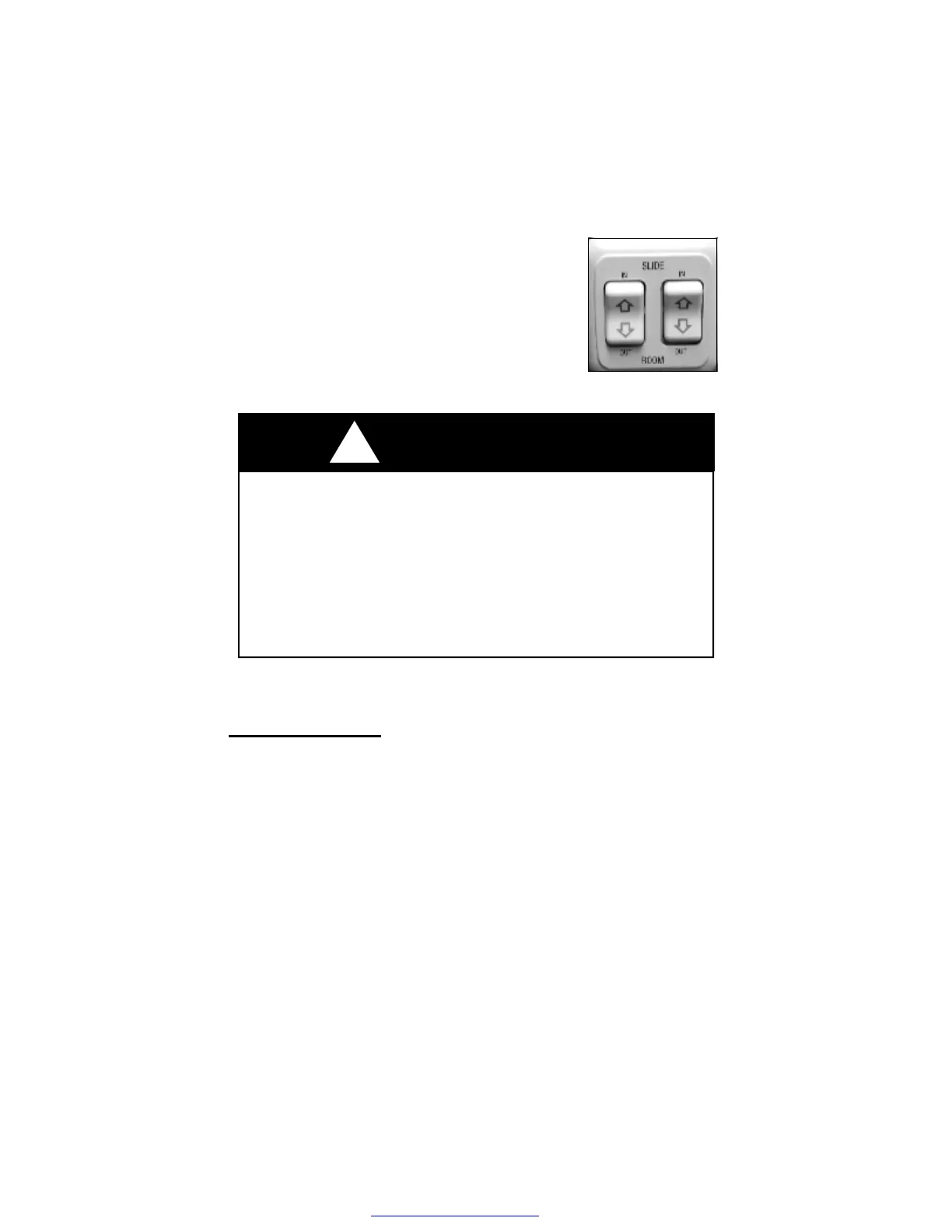

Operational Switch: This switch is a three position, ( off center, in or
out) spring loaded switch. Select which direction
you wish to move the room. Press on desired
position and hold until room is seated, and gasket
is slightly compressed. Do not force the room to
move beyond sealing as damage could occur.
MANUAL OVERRIDE
Below Floor Slide Out
Should a power failure occur (no 120 volt AC power or the battery
losses its charge), follow the listed direction. There is a 1/2” shaft
coming through the main rail of the frame. On the end of the shaft is a
3/4” nut attached. Use a 3/4” socket, with an extension and ratchet to
move the slide. On some units the stabilizer jack crank will also work on
this shaft with the attached 3/4” nut.
Above Floor Slide Out
Should 12 volt power fail and there is no 120 volt AC power available,
follow the listed direction. Access to the ram is under the floor of slide,
sofa or dinette, is the from the front. Lippert Component System has a
smaller motor, less draw and requires a 5/8” socket, ratchet and
probably an extension.
♦ Always make sure that the trailer is level before operating the slide-out room.
♦ Always make sure there are no obstructions blocking the path of the room when it
is moving.
♦ Always make sure that the room path is clear of people and objects before operat-
ing.
♦ Always keep away from the slide rails under the coach when the room is in mo-
tion.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN SERIOUS INJURY
OR DEATH.
