Rotate for best picture.
To lower antenna to travel
position. Rotate antenna until
pointer on directional handle
aligns with pointer on ceiling plate.
Turn elevating crank (counter
clockwise) in “DOWN” direction
about 13 turns or until resistance
is noted. Antenna is now locked in
travel position.
To Test System
1. Make sure TV set is working
properly.
2. Switch power supply ON and OFF
watching for difference in picture
quality. If there is no difference, see
manual provided with antenna for
steps to follow.
For complete operation instructions, see
manual provided with antenna.

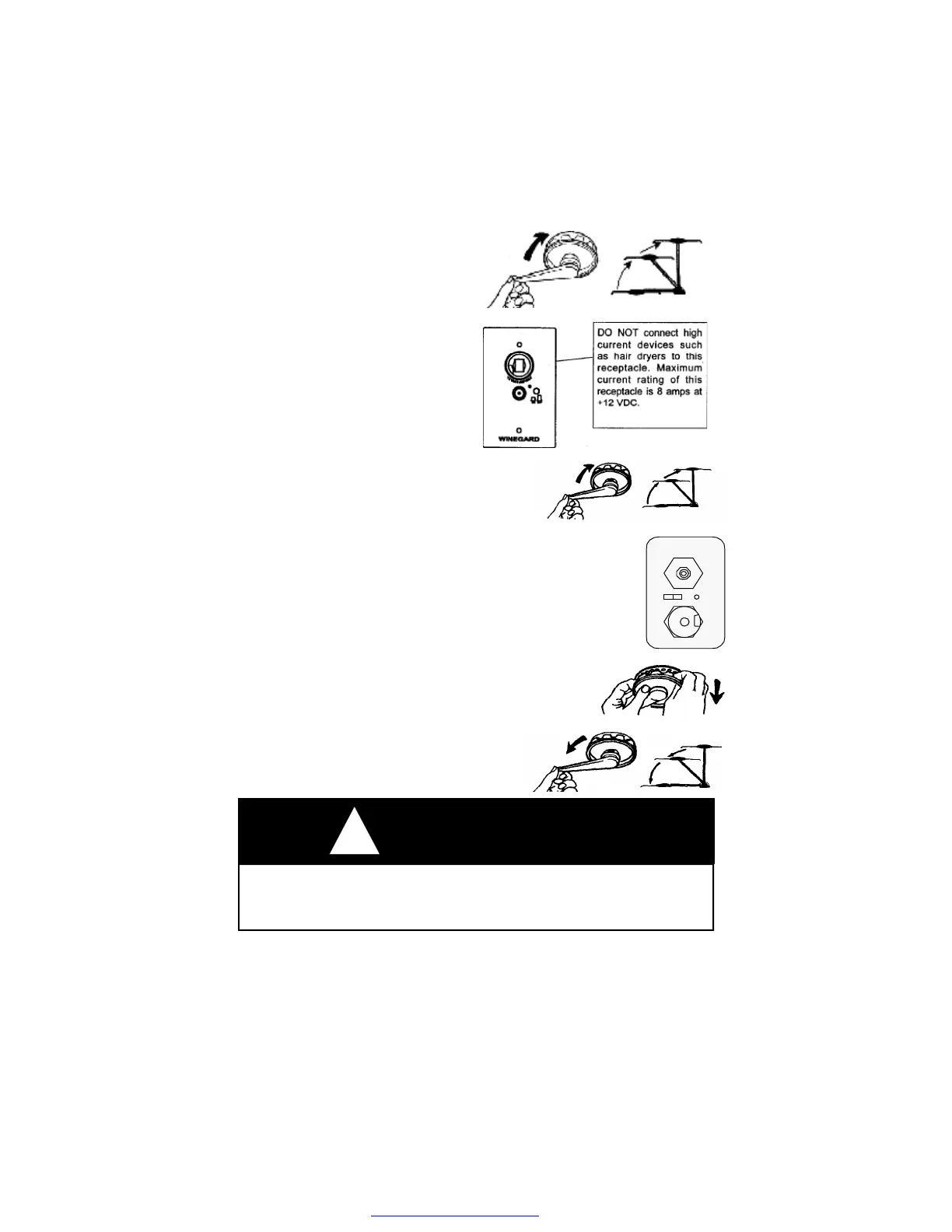

Figure 1
WARNING
DO NOT connect high
current devices such as hair
dryers to this receptacle.
Maximum current rating of
this receptacle is 7.5 amps
at 12 VDC.
Figure 2
Figure 3
Figure 4
When lowering the antenna, never, lower it into any position except the TRAVEL
POSITION. Failure to lower antenna into the TRAVEL POSITION before traveling will
very possibly cause damage, not covered by warranty.
CAUTION
!
