L-Acoustics LA4X User Manual

Installation
Installation
Mounting
The LA4X is two rack units high (2U) and can be mounted in an EIA-standard 19” rack using the four points on the front
panel. Use the xing material provided by the rack manufacturer to mount the controller to the rack front rails.

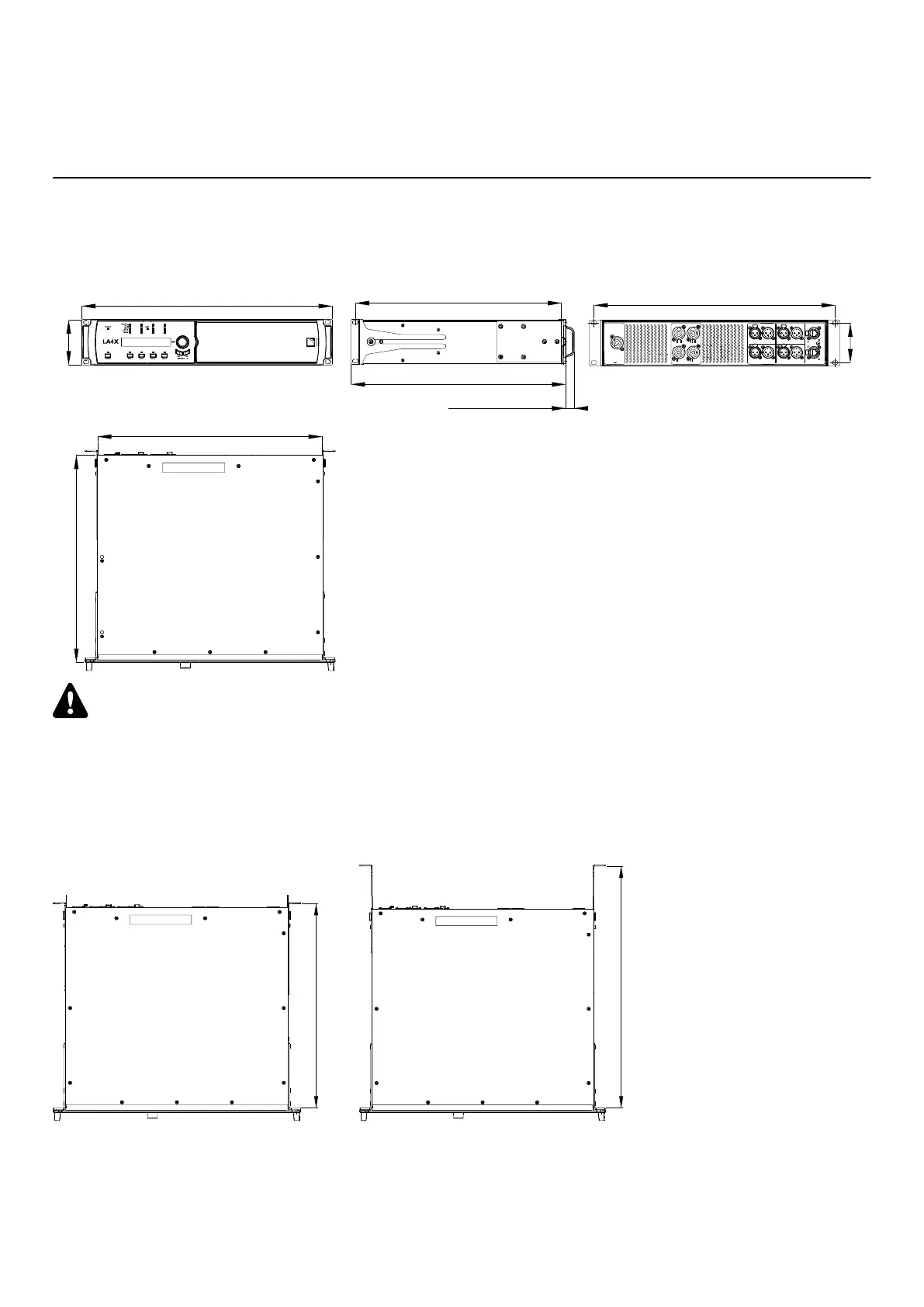

LA4X dimensions
76 mm / 3 in
465 mm / 18.3 in
LA 4X
SERIAL N° 1001
MAINS:
90 - 265 VAC / 50-60Hz / 1500W
ANALOG IN B
LINK B
L-NET
LINK/ACT
LINK/ACT
AES/EBU IN C&D
LINK C&D
AES/EBU IN A&B
LINK A&B
ANALOG IN C
LINK C
ANALOG IN A
LINK A
ANALOG IN D
LINK D
OUT 2 OUT 3 OUT 4OUT 1
1+1- 2+ 2- 1+ 1- 2+ 2-
1+1- 1+ 1-
OUT 2 OUT 4
88 mm / 3.5 in
483 mm / 19 in 406 mm / 16 in
420 mm / 16.5 in
16 mm / 0.63 in
398 mm / 15.7 in
434 mm / 17 in
Risk of damaging the amplied controller during transport
During transport or while on tour the amplied controller should be rear supported in addition to the front panel
mounting.
Use the rear brackets provided with the amplied controller.
Any mechanical damage to the amplied controller used in portable applications without rear support is not
covered by warranty.
LA4X with rear rack support brackets
400 mm / 15.7 in.
max. 486 mm / 19.1 in.
18 LA4X owner's manual (EN) version 14.1
