L-Acoustics LA4X - D;R - Front Handles

Corrective maintenance
D/R - Front handles
Tools
• torque screwdriver
• T15 Torx bit
Repair kit
G03255
KR handles (x2) LA12X
×2 ×4
100526 S100067
amplied controller front handle M3.5×12 Torx
Prerequisite
Side bracket disassembled. See Side bracket (p.70).

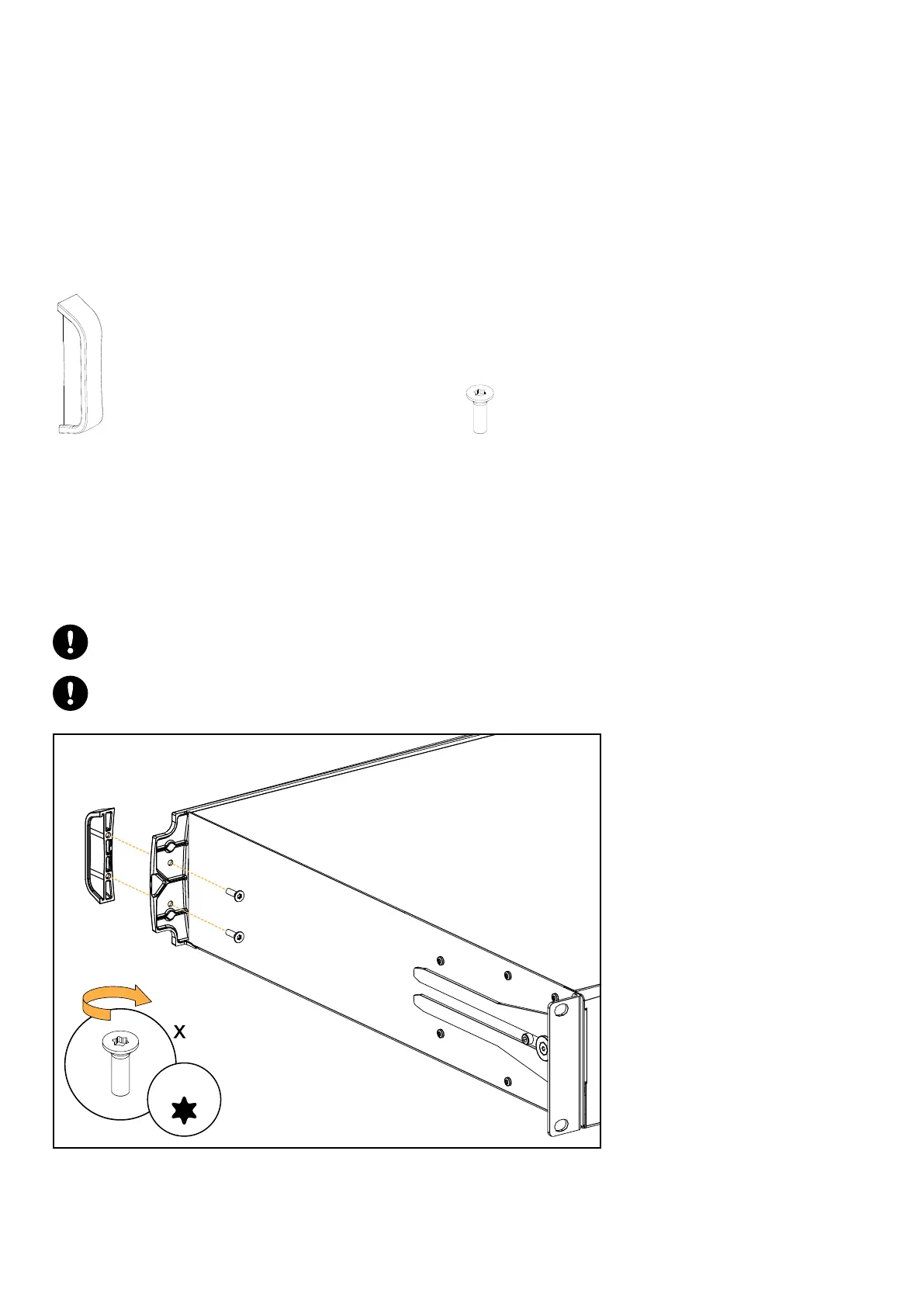

Exploded view
Front handles can only be mounted on compatible front structure.
To upgrade an amplied controller with a non-compatible front structure, contact the L-Acoustics representative.
Self-drilling screws
For safety reasons, always reassemble new front handles.
1 N.m
T15
2
