Corrective maintenance

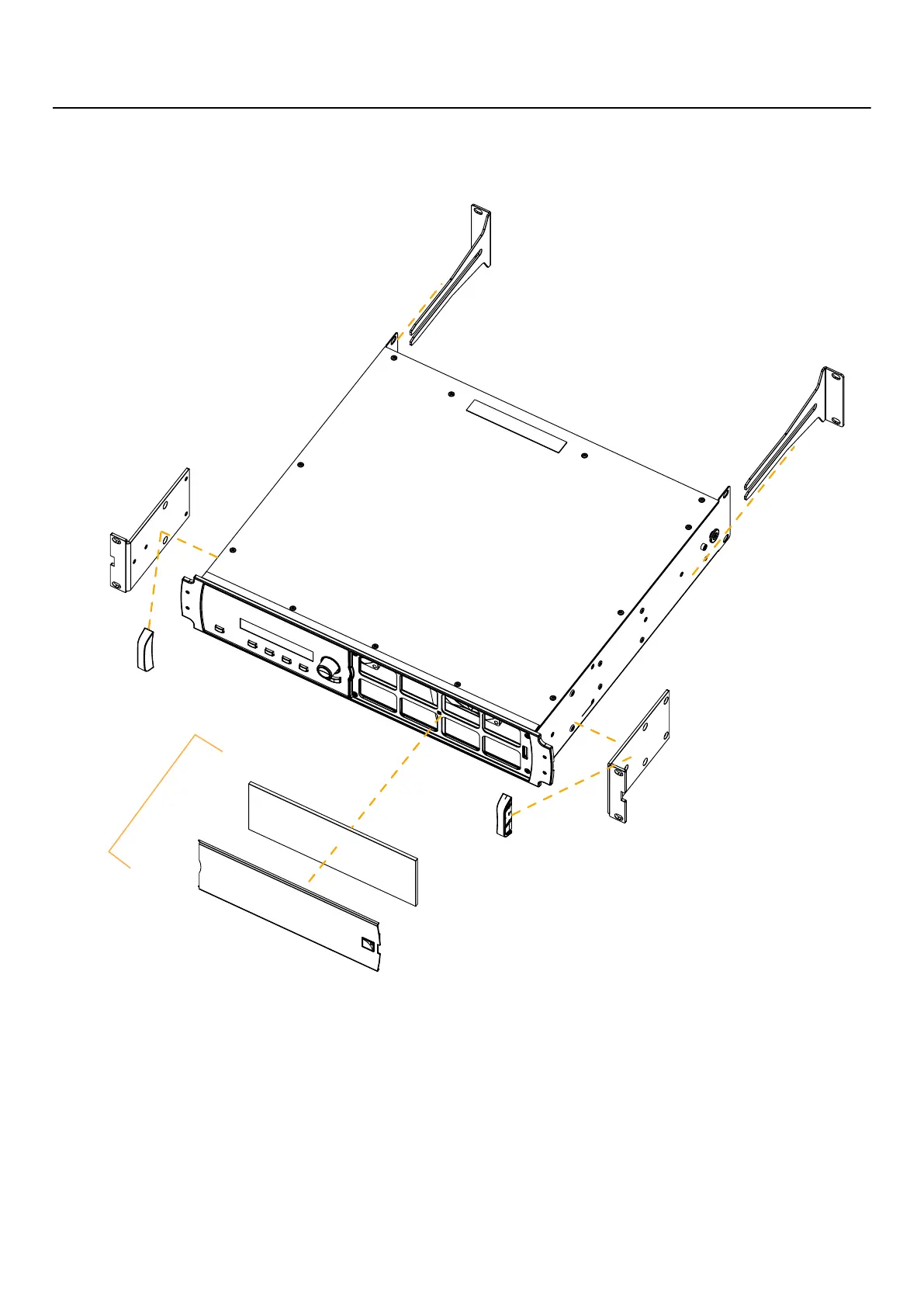

Exploded view
In the exploded view, each assembly corresponds to a D/R procedure and the necessary repair kit(s).
External modules
rear brackets
KR LABRACKET
side brackets
KR LA4XEQUAV
KR LA4XGRI
KR LA4XMOU
front handles
G03255
grill and foam filter
68 LA4X owner's manual (EN) version 14.1
