L-Acoustics V-DOSC - Figure 78: LCR Subwoofer Arraying Techniques

L-ACOUSTICS V-DOSC Manual Version 4 6/29/2005 Page 101 of 158
(a) Ground stacked LCR
(b) Ground stacked L/R, Flown C
(c) Flown L/R, ground stacked C
(d) Flown L/R, stereo infill C
(e) Flown L/R, centre line array with electronic delay processing
(f) Flown L/R, distributed ground stacked subwoofers

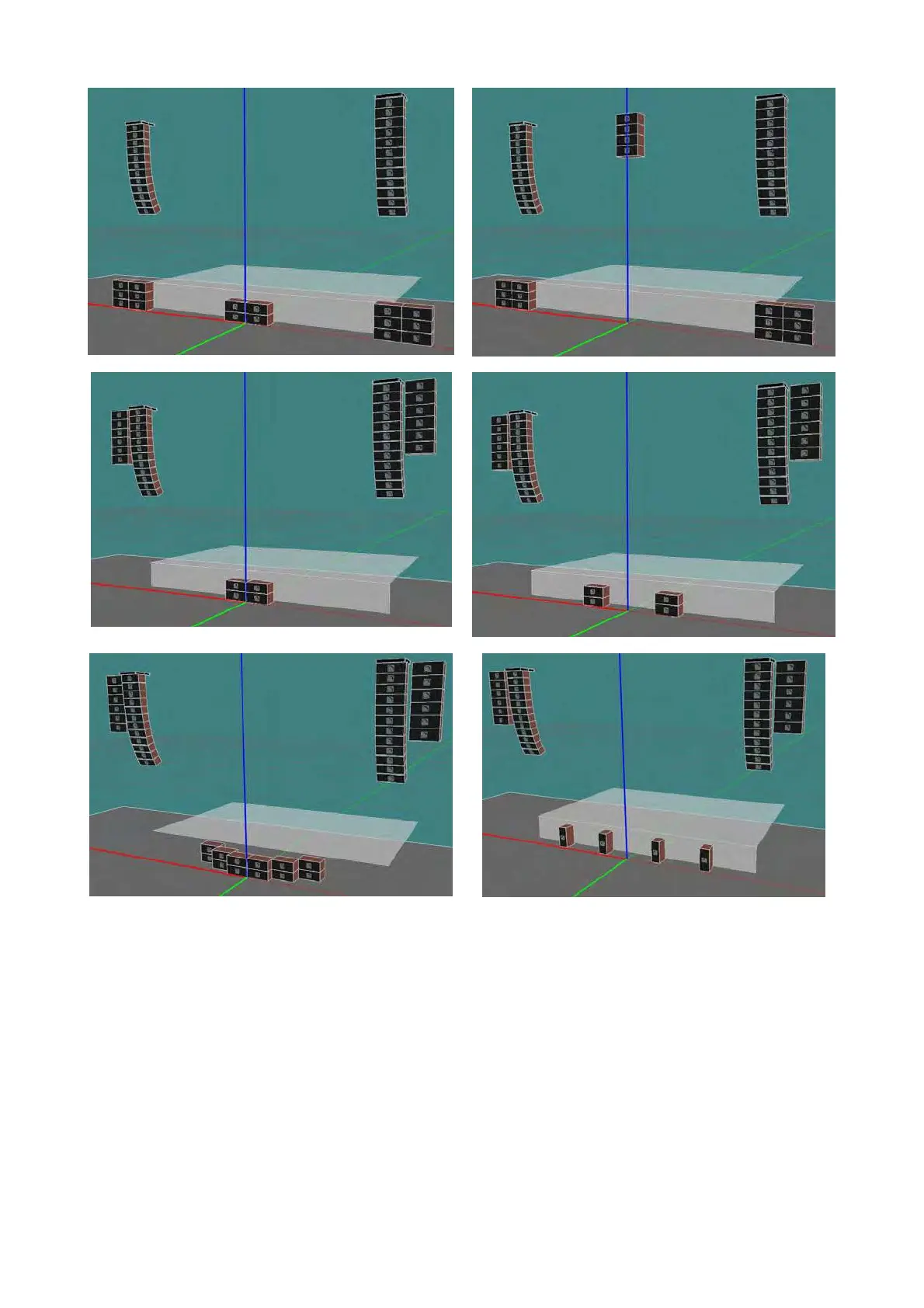

Figure 78: LCR Subwoofer arraying techniques
