L-ACOUSTICS V-DOSC Manual Version 4 6/29/2005 Page 48 of 158
Operating modes, amplifier rack channel assignments and cabling plus loudspeaker enclosure
combinations for the L-ACOUSTICS RK124a amplifier rack (PADO4a plus 4 x LA48a) are as follows:
2-WAY STEREO PRESETS
RK124 RK124
HI (A) HI (A) HI (A) HI (B)
LO (A) LO (A) LO (A) LO (B)
HI (B) HI (B) HI (A) HI (B)
LO (B) LO (B) LO (A) LO (B)
2W ST 2W (A)
2W ST 2W (B)
(DO10P+) DO2W (DO10P+) DO2W (DO10P+) DO2W (DO10P+) DO2W
or or or or
DO7(or 25) + DOFILL DO7(or 25) + DOFILL DO7(or 25) + DOFILL DO7(or 25) + DOFILL
or or or or
DO2W + CC4FB + SP7 / 2
5
DO2W + CC4FB + SP7 / 25 DO2W + CC4FB + SP7 / 25 DO2W + CC4FB + SP7 / 25
3+3 dV-DOSC / ARCS / XT 3+3 dV-DOSC / ARCS / XT 3+3 dV-DOSC / ARCS / XT 3+3 dV-DOSC / ARCS / XT
3-WAY STEREO PRESETS
RK124 RK124
HI (A) HI (B) SUB (A) SUB (B)
LO (A) LO (B) SUB (A) SUB (B)
SUB (A) SUB (B) SUB (A) SUB (B)
SUB (A) SUB (B) SUB (A) SUB (B)
3W (A) SUB (A)
3W (B) SUB (B)
(DO10P+) DO3W (DO10P+) DO3W
or or (DO10P +) (DO10P +)
DO7(or 25) + DO3WFILL DO7(or 25) + DO3WFILL DOSUB DOSUB
or or
DO3W + CC4FB + SP7 / 2
5
DO3W + CC4FB + SP7 / 25
4 SUBS 4 SUBS
3 dV-DOSC / ARCS / XT 3 dV-DOSC / ARCS / XT
2 SUB 2 SUB

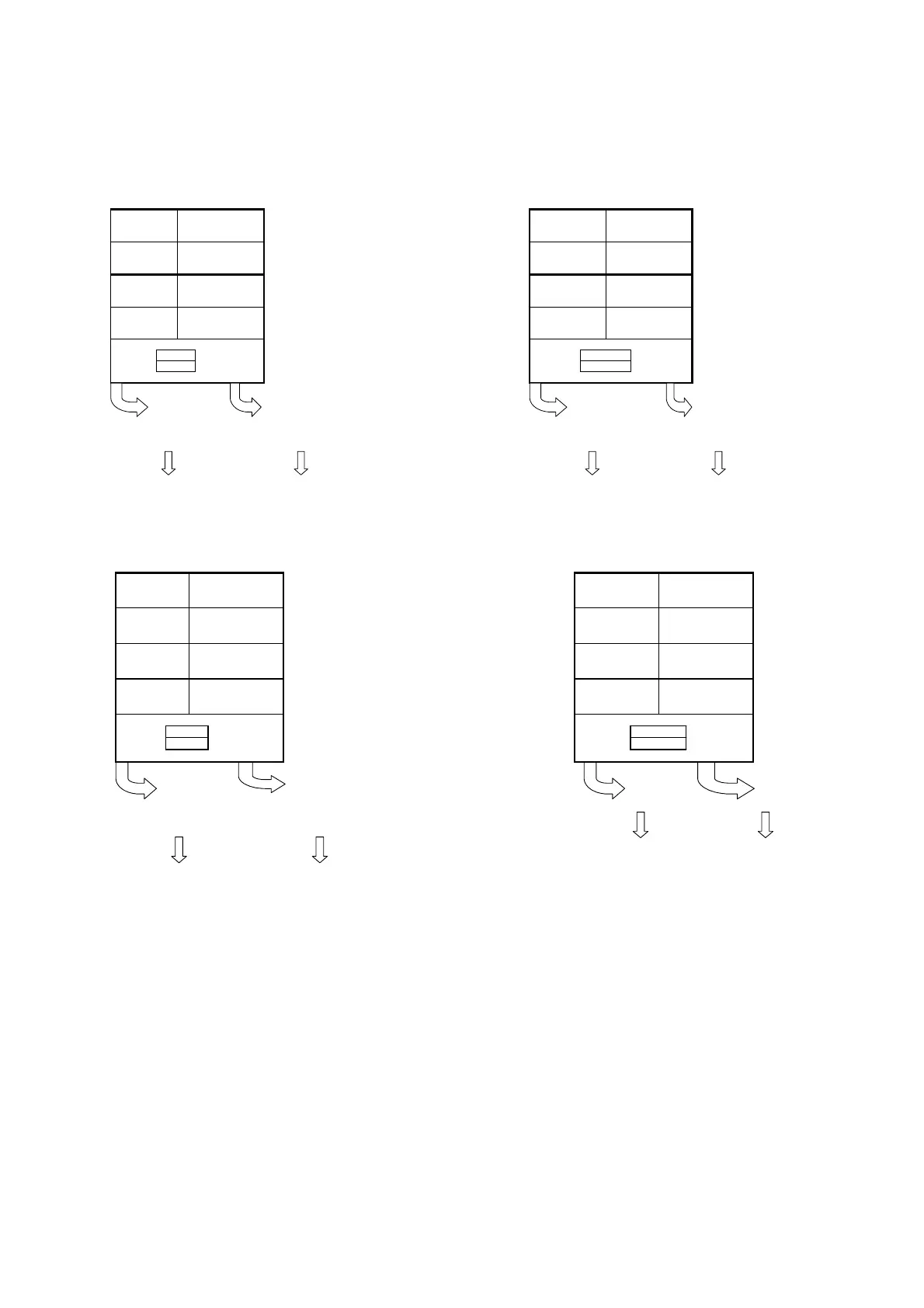

Figure 31: L-ACOUSTICS RK124a amplifier rack channel assignments
and cabling for 2-way and 3-way stereo presets
