SOUNDVISION ARENA EXAMPLE
The following SOUNDVISION example (Palais Omnisport de Paris Bercy – POPB – Paris, France)
shows the coverage of different elements of an arena system consisting of: two main arrays (15 V-
DOSC + 3 dV-DOSC); two offstage fill arrays (12 dV-DOSC); eight distributed front fill enclosures
(112XT).

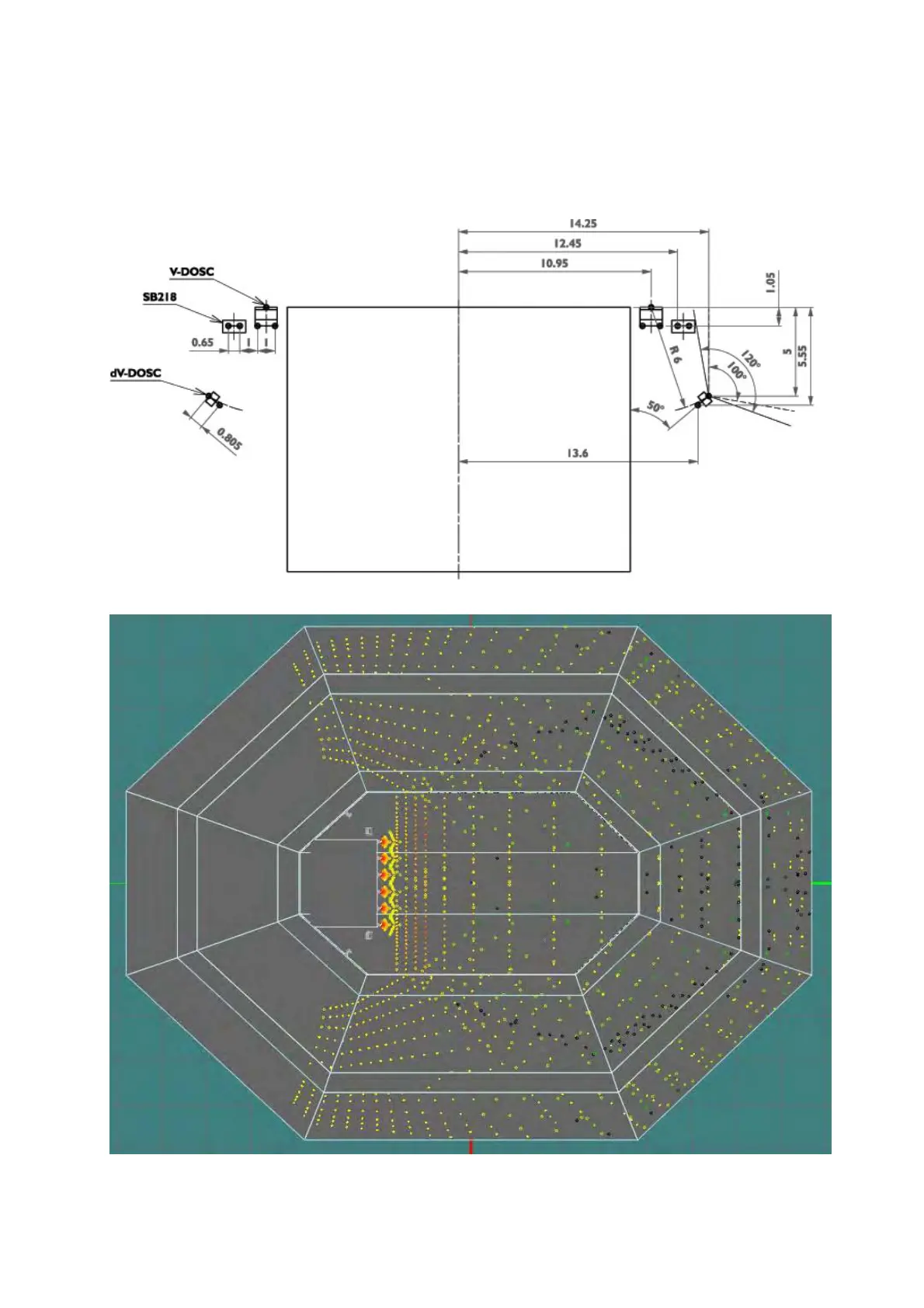

Figure 56: Arena example -rigging plot
Figure 57: Arena example - plan view of full system impact coverage
