L-Acoustics V-DOSC - Figure 28: L-ACOUSTICS Rk122 A Amplifier Rack Channel Assignments and Cabling; Figure 29: L-ACOUSTICS Rk124 A Amplifier Rack Channel Assignments and Cabling

L-ACOUSTICS V-DOSC Manual Version 4 6/29/2005 Page 46 of 158
Operating modes, amplifier rack channel assignments and cabling plus loudspeaker enclosure
combinations for the L-ACOUSTICS RK122a amplifier rack (PADO2a plus 2 x LA48a) are as follows:
V-DOSC HI V-DOSC LO SUB SUB 2W HI 2W HI
V-DOSC MID V-DOSC LO SUB SUB 2W LO 2W LO
3-WAY SUB 2-WAY
DO7 DOSUB (DO10P+) DO2W
or or or
DO25 DO10P + DOSUB DO7(or 25) + DOFILL
or
DO2W + CC4FB + SP7 /
3 V-DOSC 4 SB218 (or dV-SUB) 6 dV-DOSC / ARCS / XT

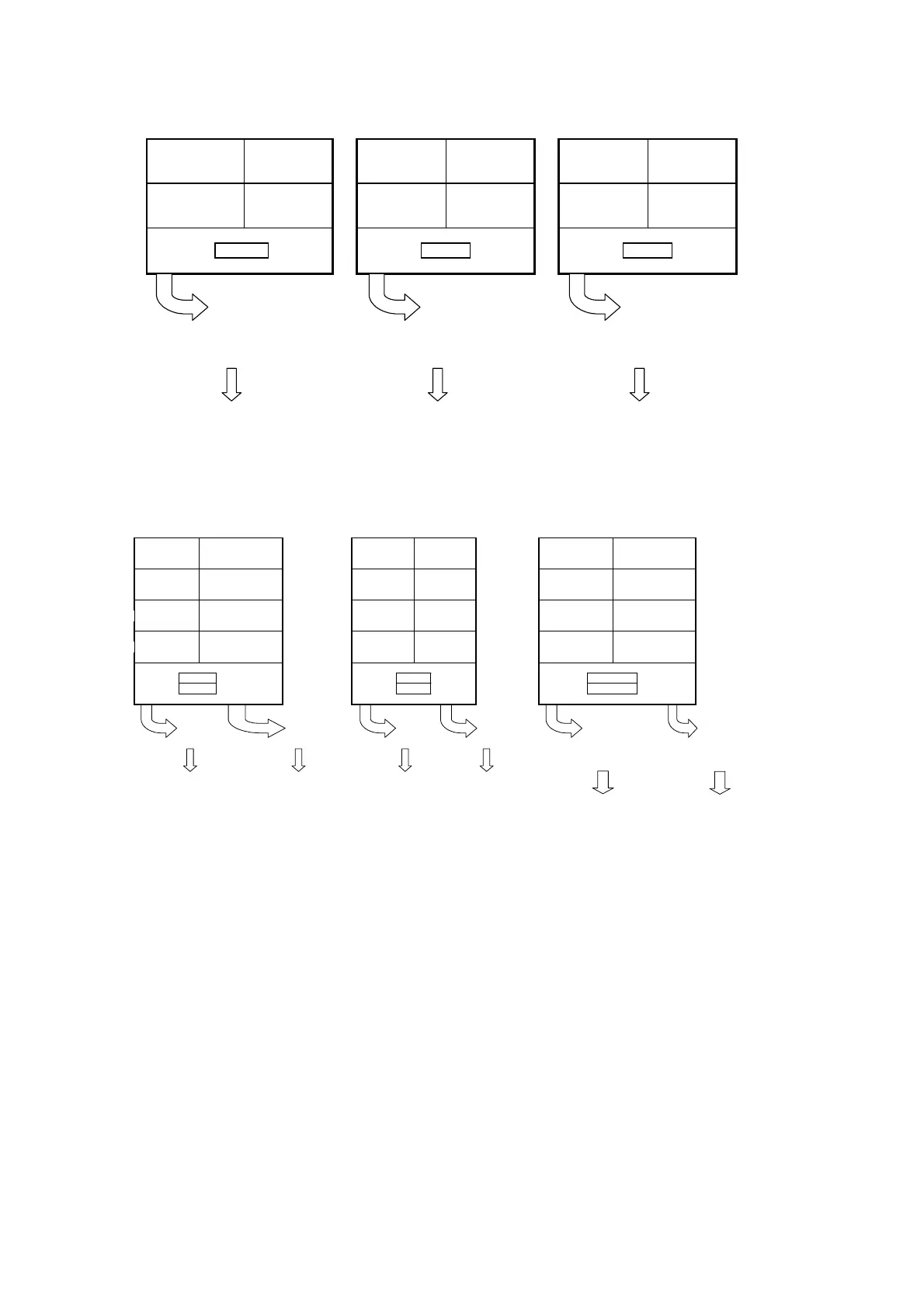

Figure 28: L-ACOUSTICS RK122a amplifier rack channel assignments and cabling for V-DOSC presets
Operating modes, amplifier rack channel assignments and cabling plus loudspeaker enclosure
combinations for the L-ACOUSTICS RK124a amplifier rack (PADO4a plus 4 x LA48a) are as follows:
V-DOSC HI V-DOSC HI SUB SUB 2W HI 2W HI
V-DOSC MID V-DOSC MID SUB SUB 2W LO 2W LO
V-DOSC LO V-DOSC LO SUB SUB 2W HI 2W HI
V-DOSC LO V-DOSC LO SUB SUB 2W LO 2W LO
3-WAY SUB 2-WAY
3-WAY SUB 2-WAY
DO7 DO7 (DO10P+) DO2W (DO10P+) DO2W
or or (DO10P +) (DO10P +) or or
DO25 DO25 DOSUB DOSUB DO7(or 25) + DOFILL DO7(or 25) + DOFILL
or or
DO2W + CC4FB + SP7 / 25 DO2W + CC4FB + SP7 /
3 V-DOSC 3 V-DOSC 4 SUBS 4 SUBS
6 dV-DOSC / ARCS / XT 6 dV-DOSC / ARCS / XT
Figure 29: L- L-ACOUSTICS RK124a amplifier rack channel assignments and cabling for V-DOSC presets
