L-ACOUSTICS V-DOSC Manual Version 4 6/29/2005 Page 91 of 158

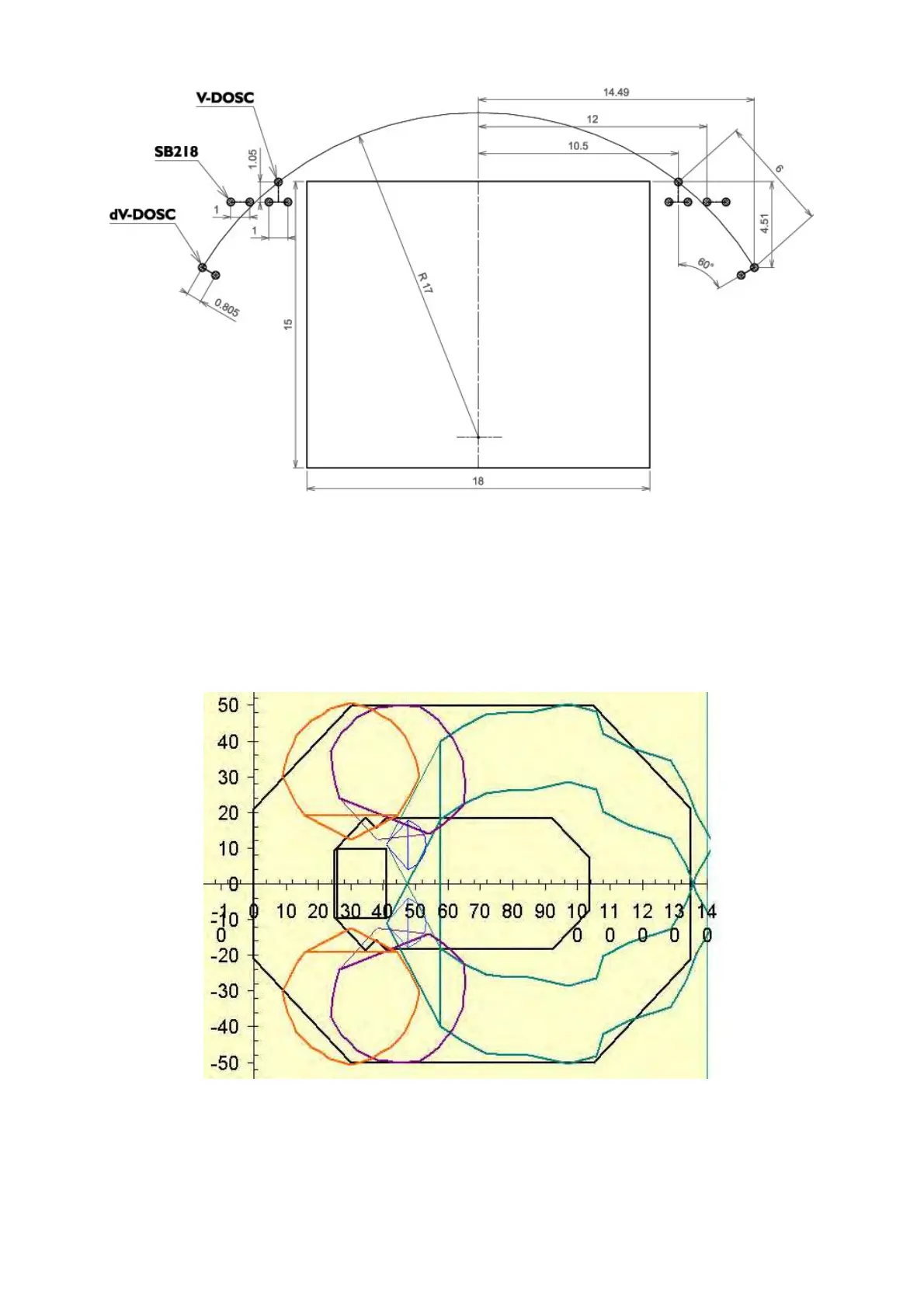

Figure 67: Rigging plot for a L/R V-DOSC + flown SB218 FOH system with LL/RR dV-DOSC offstage fill
(dimensions in metres). See figure 60 for a “reduced footprint” version of this rigging plot.
Experience has shown that this is a very flexible approach that can cover any type of audience and an
additional advantage of multiple arrays is improved resistance to wind effects in open-air situations.
Beyond the basic solution of coverage problems, multiple source arrays open up many possibilities for
creating a spatial soundscape, thus providing a powerful tool for sound design and creativity (see the
example below).
Figure 68: Stereo dV-DOSC offstage fill system. Left/right program signal is applied to arrays as follows:
LLL (left); LL (right); L (left); R (right); RR (left); RRR (right)
