L-Acoustics V-DOSC - Figure 8: LR System Plus Offstage Fill Configuration

To Next Page

To Previous Page

L-ACOUSTICS V-DOSC Manual Version 4 6/29/2005 Page 22 of 158

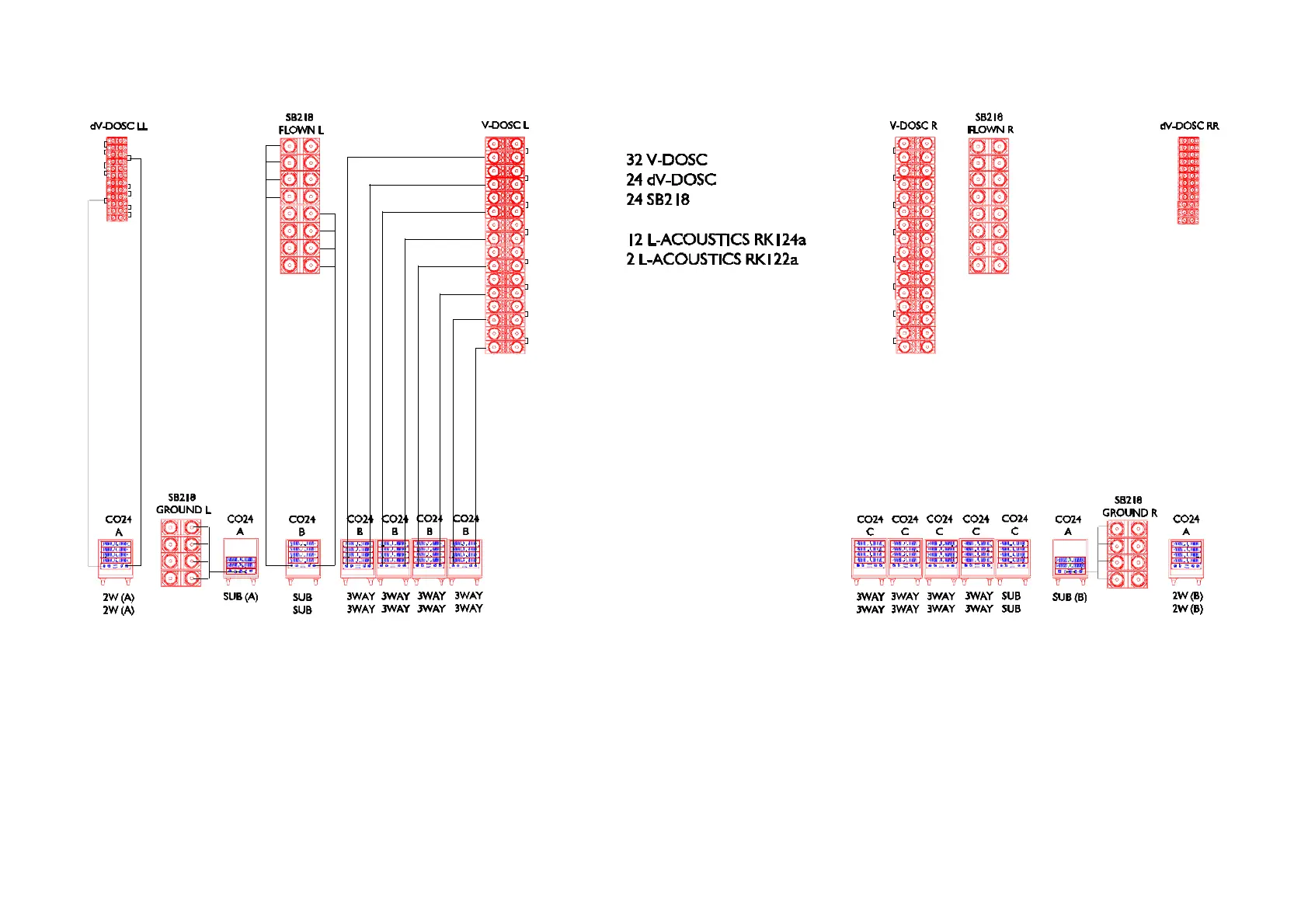

Figure 8: Example LR System Plus Offstage Fill Configuration

(additional distributed front fill or stereo infill system recommended)
