L-Acoustics V-DOSC User Manual

L-ACOUSTICS V-DOSC Manual Version 4 6/29/2005 Page 154 of 158
APPENDIX 8: ANGLE STRAP CALIBRATION

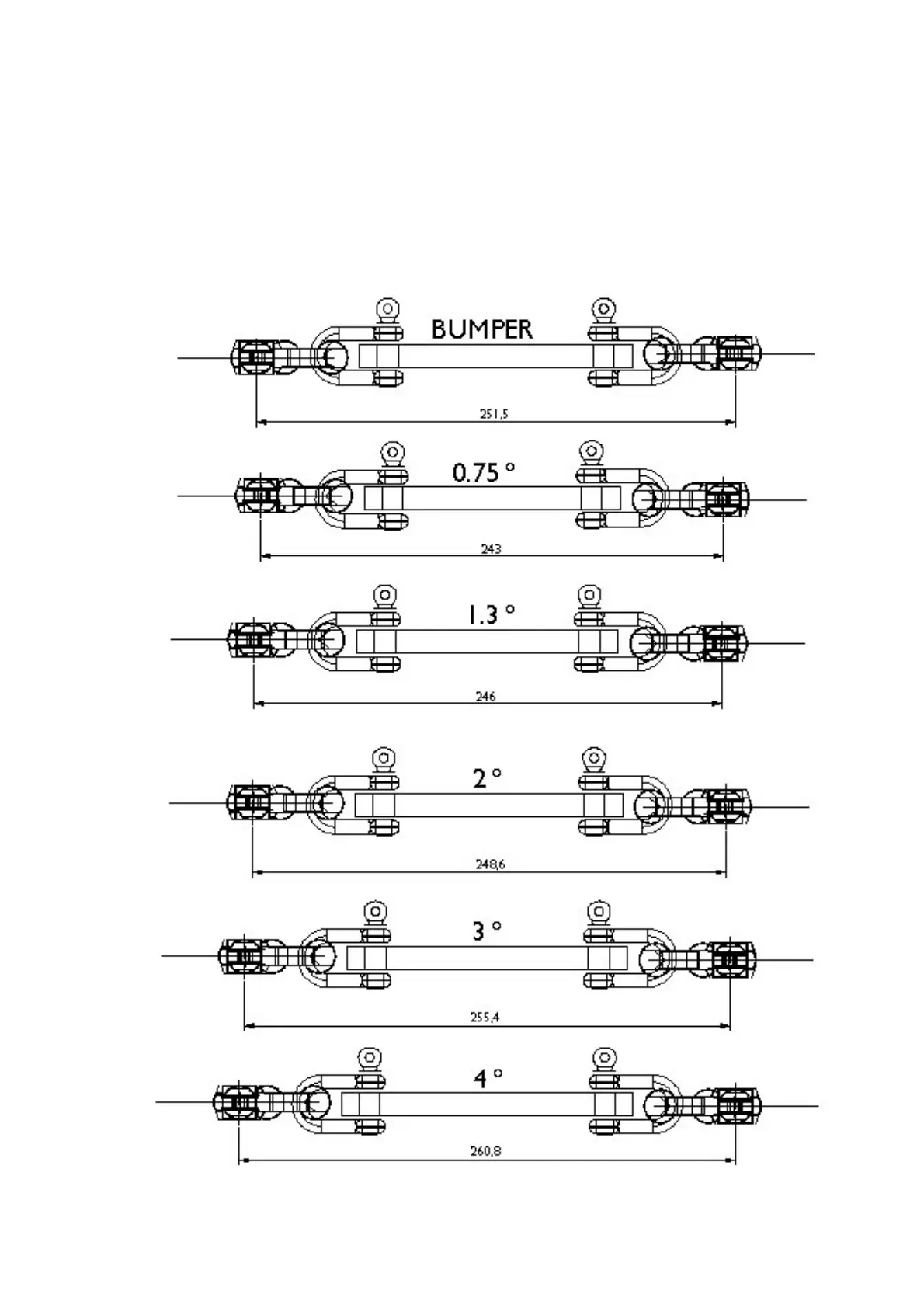

The figure below provides the information necessary to construct a fixture for calibrating angle
straps. Individual fly track sections can be laid out according to the indicated double stud fitting
plunger-plunger spacing to provide a fast test jig for checking angle strap values and labeling.
When testing angle straps, they should fit the test jig with a tolerance variation of +1 mm to +2
mm.
Note: For full details on angle strap calibration issues refer to “Technical Bulletin TB0402 Angle
Straps”
Figure 114: Angle strap calibration
