ESI-2000
Pilot’s Guide3-4
Operating Instructions
NORMAL OPERATION (Refer to Figure 3-4 a or b)
Normal Operation of the ESI-2000 provides attitude (pitch and roll),
barometric corrected altitude, metric altitude readout (optional), indicated
airspeed, slip/skid indicator, airspeed awareness cues, and heading
(optional) information.

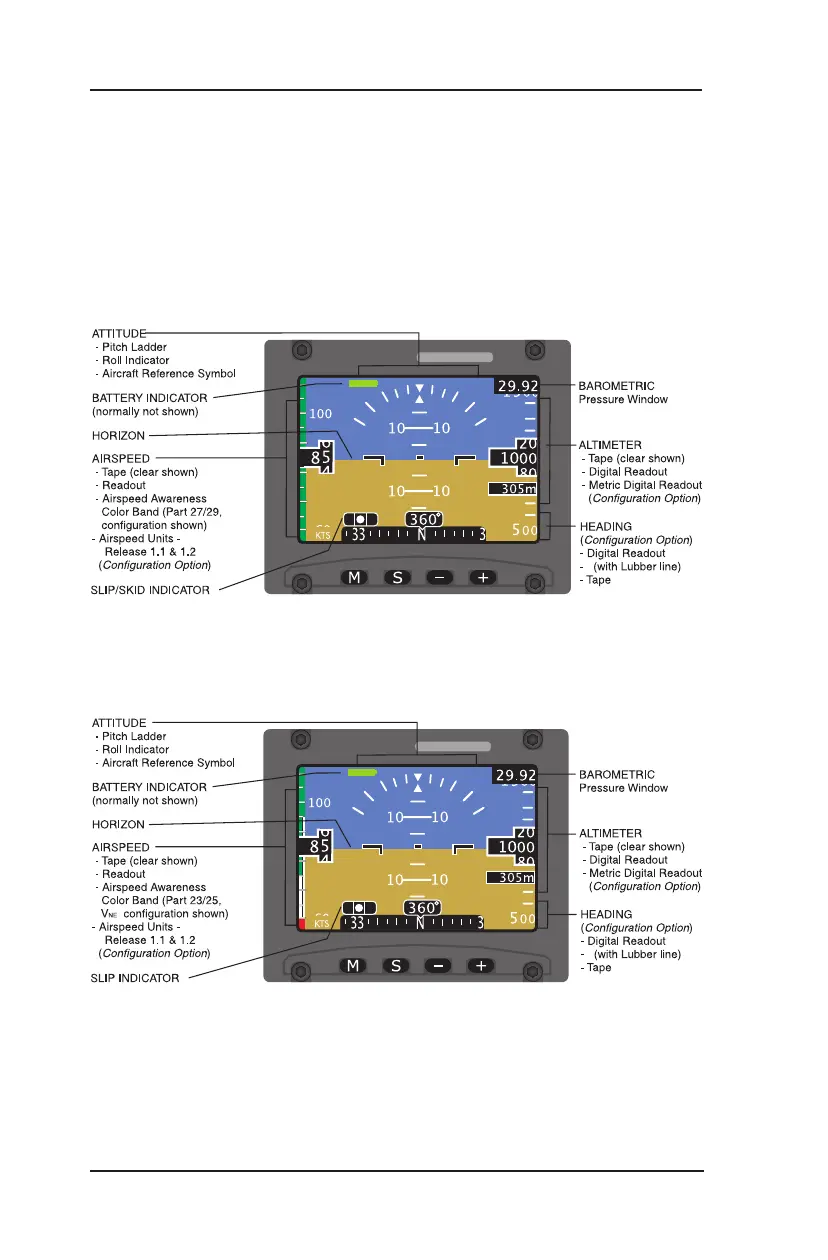

Figure 3-4a: Display Elements for Part 27/29 Aircraft
Figure 3-4b: Display Elements for Part 23/25 Aircraft
