Pilot’s Guide3-6
Operating Instructions
IN-FLIGHT SCREEN EXAMPLES

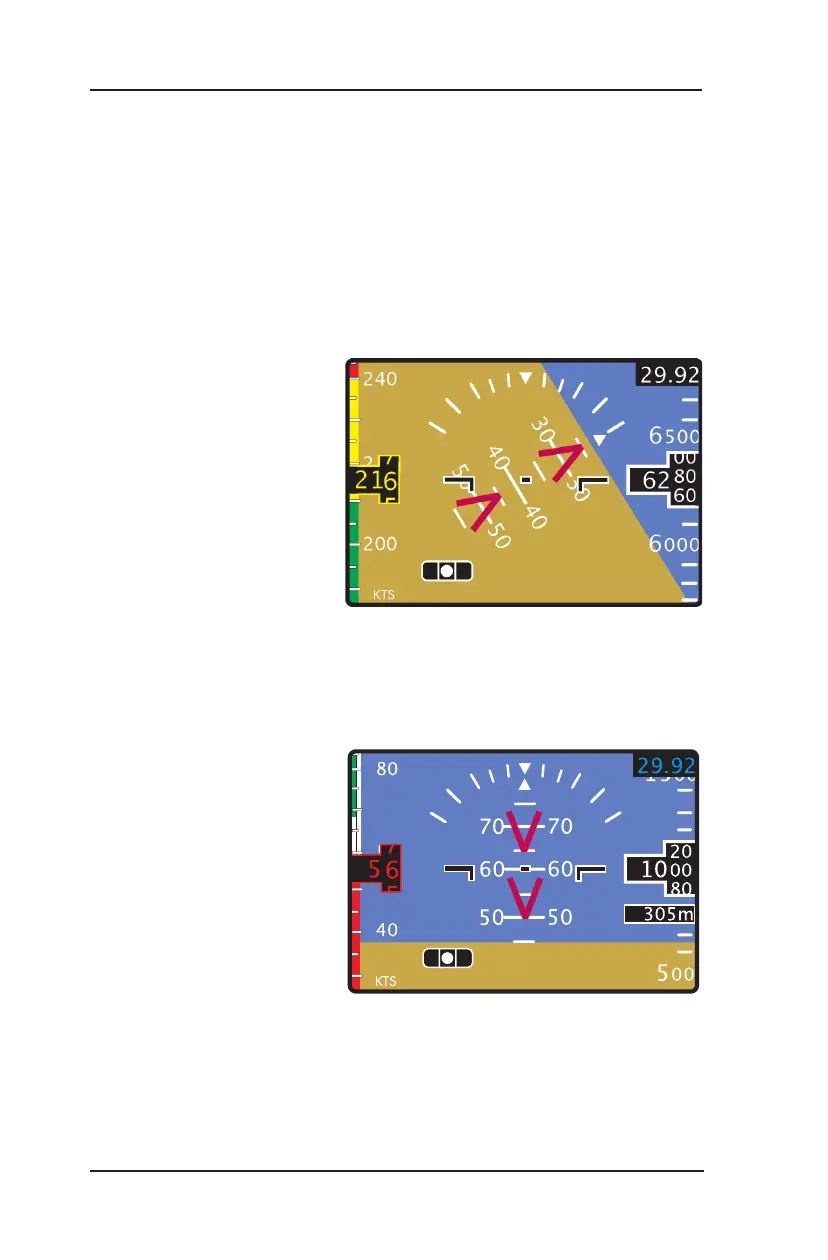

Figure 3-6 depicts a display congured with heading, and baro color
congured cyan. The display is shown ascending at >60° pitch which
has caused the heading
information to be removed.
Chevrons are shown
indicating extreme pitch.
In addition the airspeed
awareness bar is showing
low speed awareness (Part
23/25 aircraft).
Figure 3-5 depicts a display congured with heading, rotating roll pointer,
and airspeed congured for V
NE
(Part 23 aircraft). The display is shown
in a Left bank >60° which
has caused the heading
information to be removed.
Chevrons are shown
indicating extreme pitch.
In addition the airspeed
awareness bar is in the
caution range.
Figure 3-5: De-cluttered Display in Extreme Roll
Figure 3-6: De-cluttered Display in Extreme Pitch
NOTE
The red low speed awareness is indicated only while in
ight. On the ground the awareness bar remains white.
NOTE
The In-ight screen examples are typical of all software
versions of the ESI-2000 with the exception of the airspeed
units descriptor which was incorporated in software version
1.1.
