ESI-2000
Pilot’s Guide3-8
Operating Instructions
IN-FLIGHT SCREEN EXAMPLES (Continued)

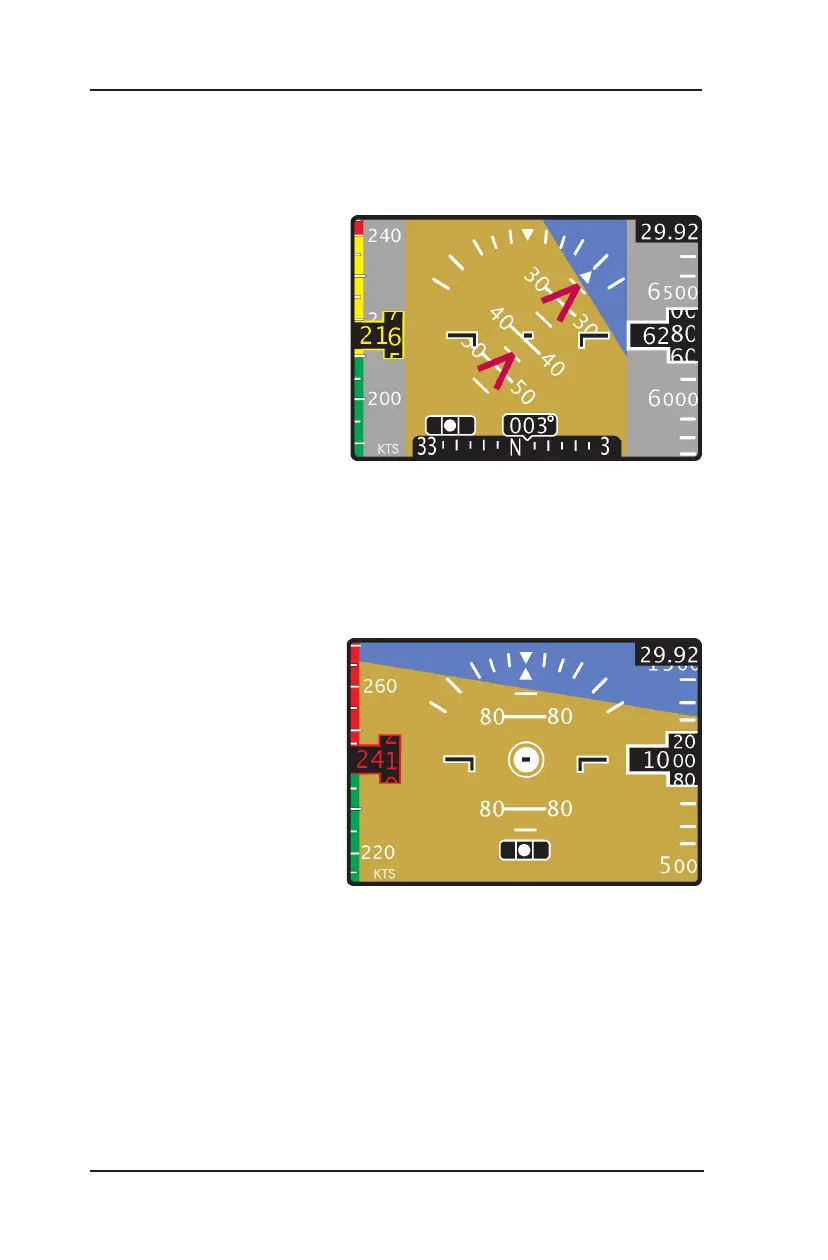

Figure 3-10 depicts a display with airspeed congured for V
MO
. (Part 23/25
aircraft) The display is shown descending at a 90° pitch with the airspeed
awareness bar indicating a
high speed warning.
Figure 3-10: Display at 90 degree Descent.
Figure 3-9 depicts a display congured with heading, rotating roll pointer,
airspeed congured for V
NE
(Part 23 aircraft) , and gray colored tape areas.
The display is shown
descending while banking
to the left with the airspeed
awareness bar in the caution
range.
Figure 3-9: Display Descending Left Bank
