ESI-2000
Pilot’s Guide3-14
Operating Instructions
Alignment Invalidity (Refer to Figure 3-17)
During alignment the “Align Hold” message replaces the attitude information
if the aircraft attitude is beyond straight and level ight for too long a period,
or if attitude is in a heightened dynamic state.
While the message is active and the ESI-2000 is congured
for a
magnetometer as the heading reference
, the heading readout is removed
and the heading tape is lled with a red X.
Returning the aircraft to non-
dynamic straight and level ight will cause the “Aligning” message to
return.

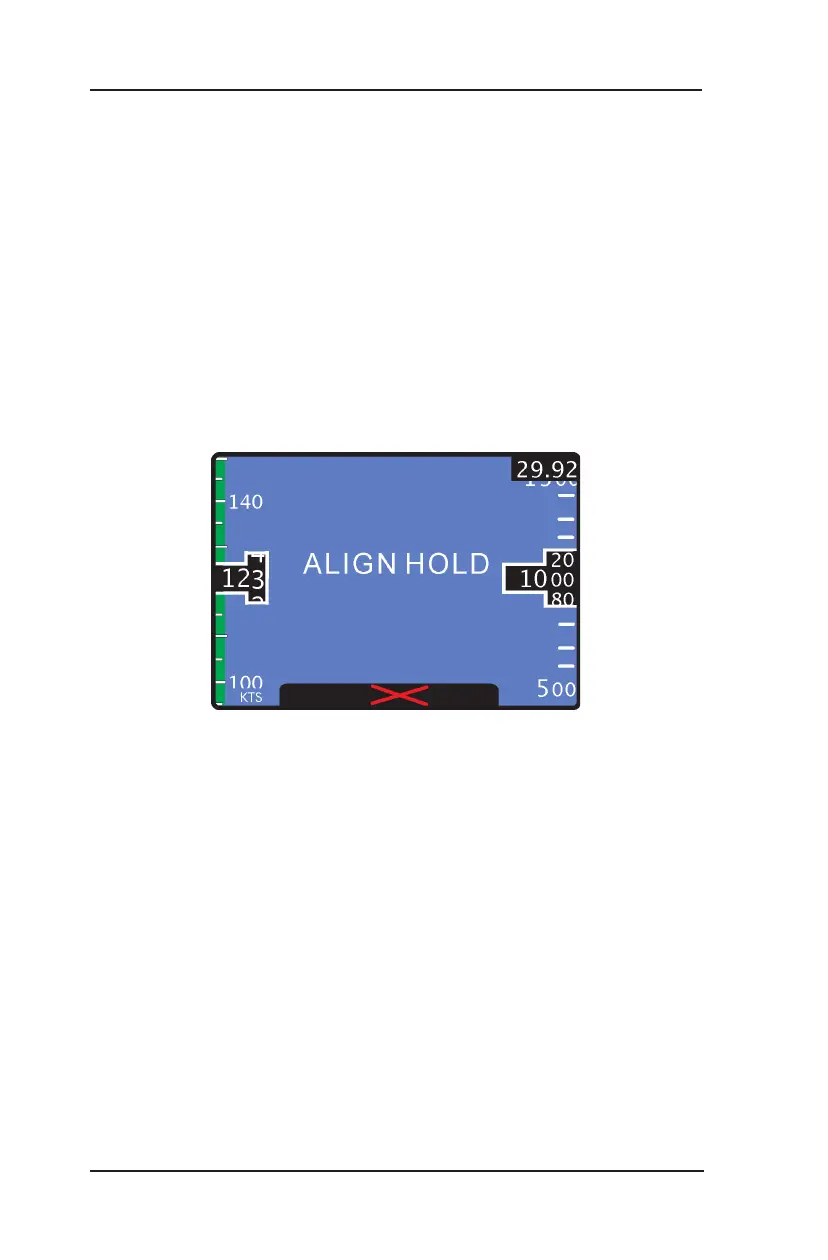

Figure 3-17: Align Hold
NOTE
Release 1.2. The heading tape and readout is available
if the unit is congured to receive external digital heading
and heading data is valid.
ERRORS AND INVALIDITIES (Continued)
