Chapter 1 - System Configuration TM00358 Rev. A
October 2007 L-3 WESCAM
2 All Rights Reserved
1.1 SYSTEM CONFIGURATION
The MX-15i system consists of two main components:
•Turret
• Hand Controller
The turret provides hardware and software functions that allow crew members to operate the MX-15i system using
the Hand Controller as the operator controls. External communication interfaces can be utilized to control operation
remotely through aircraft computer systems.
The turret contains a video switching matrix that manages output to external display monitors, video tape recorders
(VTR) and other associated video equipment. Graphical overlays on top of the displayed video provide the primary
method for viewing system status information. Infrequently used status information and other control parameters
are viewed through user menus.

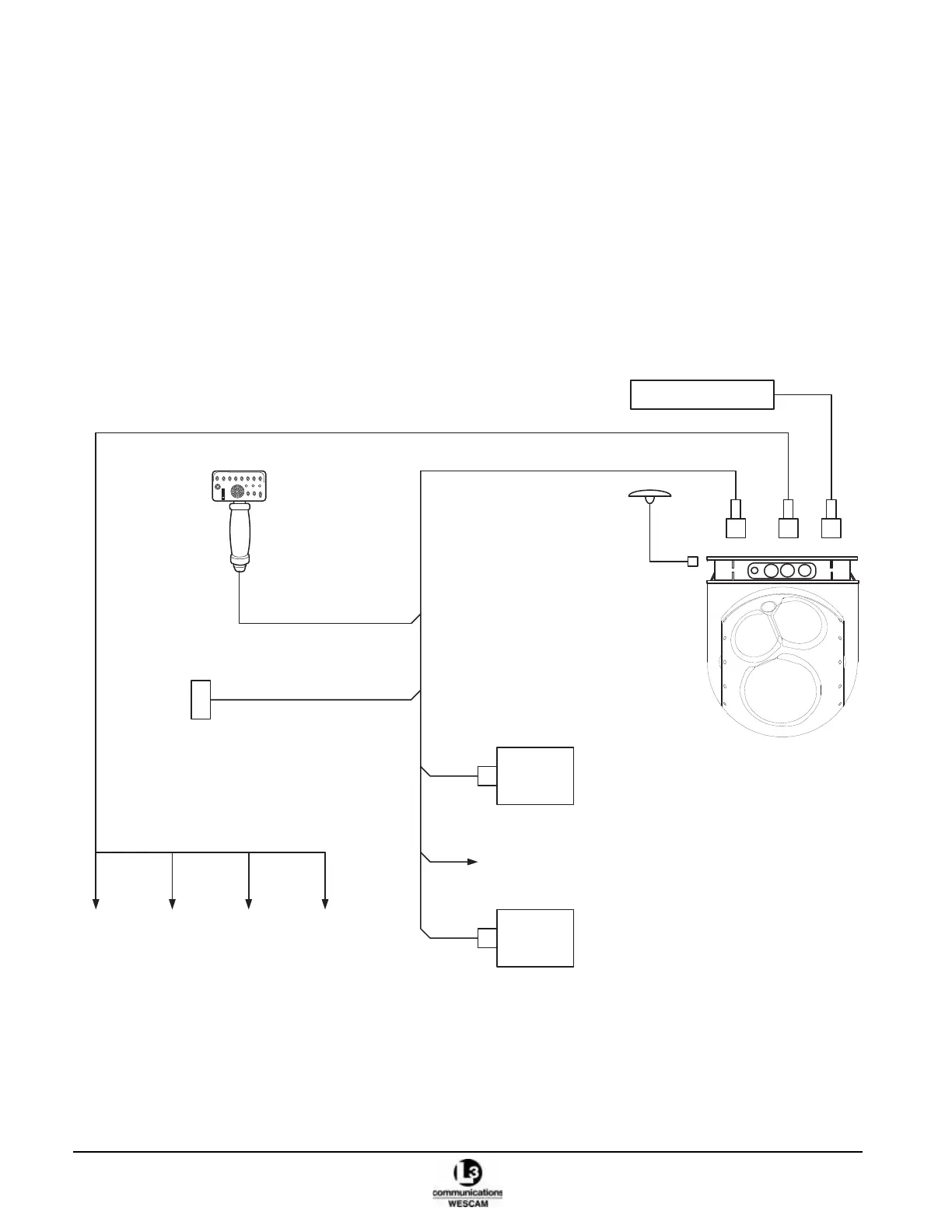

Figure 1-1 System Configuration
P3 P1P2
Aircraft 28Vdc Power
Nightsun
(CFE)
Video 1
S-video
Video 2
S-video
Video 3
Composite
Video 4
Composite
Maintenance
port
42390
White
NTSC fmt
20u CE LFIR
Block EOW
EON DCS
G.P.S cca
42228
Comm port CE3
RS422@19200
Moving Map
(CFE)
Comm port CE2
RS232@115200
Comm port CE1
RS232@115200
RCS
