L3 Communications MX-15i - Figure 1-2 MX-15 I System Power Distribution; Power; Table 1-1 System Components

TM00358 Rev. A Chapter 1 - System Configuration
L-3 WESCAM October 2007
All Rights Reserved 3
1.1.1 Power
All turret system components operate on +28 VDC that is supplied from the aircraft. The turret is wired into the
aircraft power feed and routes +28 VDC power to the Hand Controller and +5 VDC to the GPS antenna. The
POWER switch on the Hand Controller both applies and removes power to the turret.

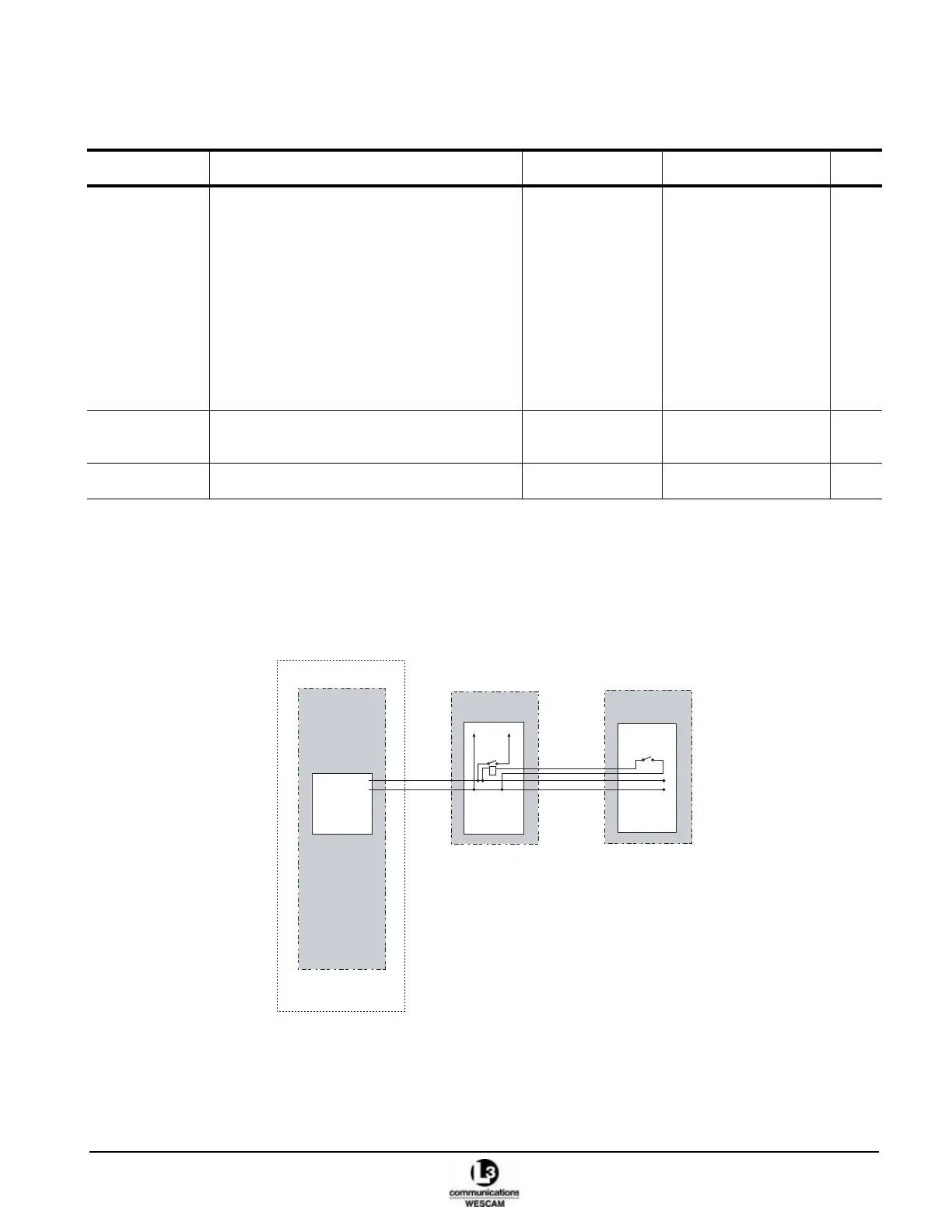

Figure 1-2 MX-15i System Power Distribution
Table 1-1 System Components
Equipment Product Name Supplier Part Number Qty
Turret MX-15i containing a payload of:
• EOW – Daylight Zoom Camera with
continuous zoom lens
• IR – Thermal camera with stepped zoom lens
• EON – MX-Day/Night Spotter™ with a fixed
focal length lens
Features:
• Gen 3.0 IR Video Processing circuit card
assembly
• Moving Map and NightSun Communication
interfaces enabled.
• NTSC video format
L-3 Wescam 42390 1
Operator
Interface
• Hand Controller L-3 Wescam 42228 1
GPS Antenna Omni, Hemispherical L-3 Wescam GPS-511 1
Hand
Controller
Power
Circuit
Aircraft
+28 VDC
Power
Supply
Turret Systems
Airframe
Turret
Turret
Power
Switch
Relay
Power
Circuit
+
-
Turret
Power
