If register calibration is required, use the following procedure:
1. Click R
EGISTER in the Calibration window. The Plate Registration
window opens.

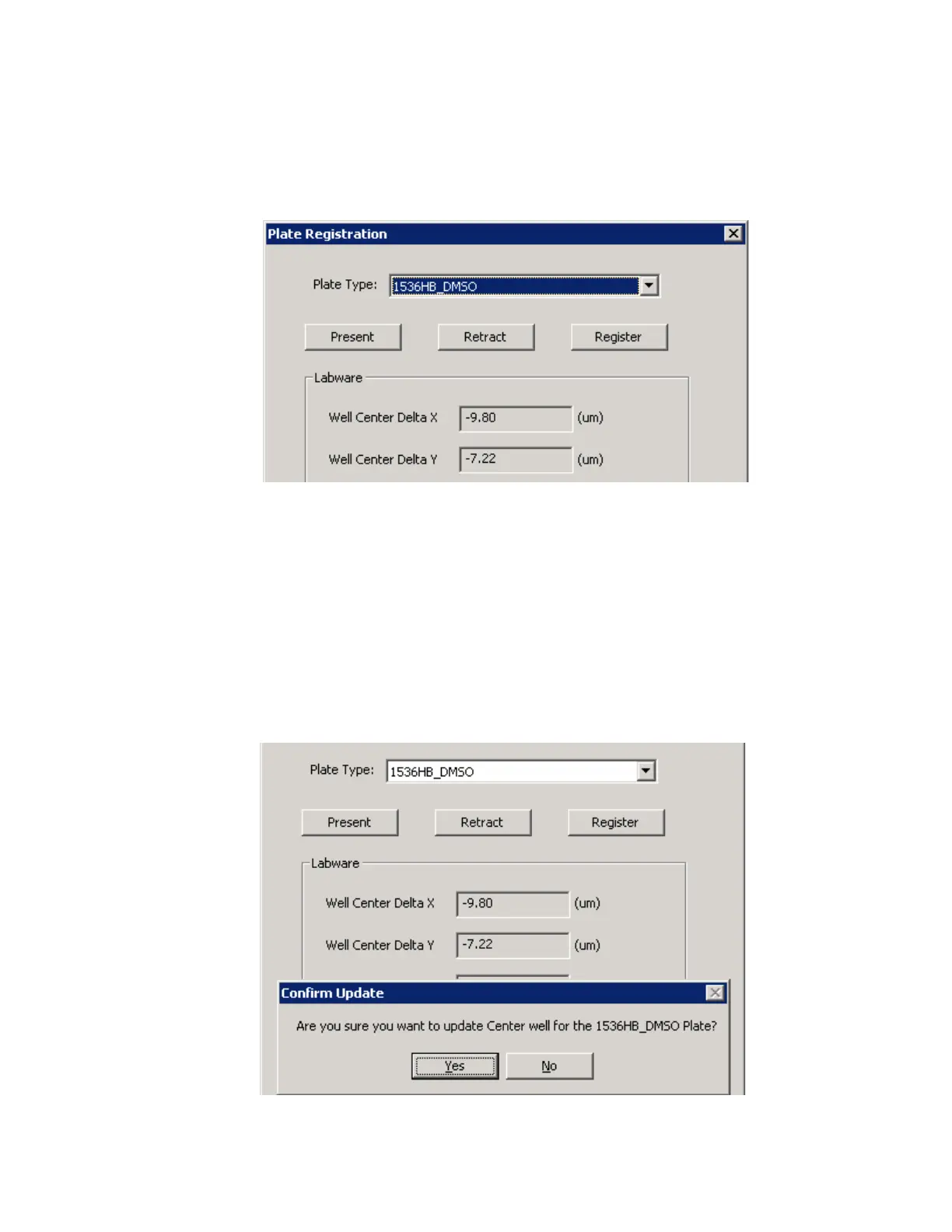

Figure 5.42 Plate registration window
2. Select the source plate type from the drop-down menu.
3. Click the PRESENT button to extend the source plate gripper stage.
4. Place the source plate on the plate gripper.
5. Click the RETRACT button to draw the plate into the instrument.
6. Click the REGISTER button. The Echo liquid handler calibrates the well
position and displays the new well center values.
7. Click the APPLY LABWARE button at the bottom of the dialog box, then
YES in the Confirmation Update dialog box, to update the database.
Figure 5.43 Plate registration confirmed
