Installation and Relocation 2-11
2.4.2 Reinstall the Echo liquid handler after a
move
After the move, use the following procedure to restore an Echo liquid
handler to normal operation.
1. Ensure that the new mounting surface is level.
2. Set up the Echo liquid handler, bottles, computer, and other ancillaries.
Remember to allow for minimum operating space around the Echo
liquid handler. See “Site requirements” on page 2-2.
3. Set up and start the chiller. See “Chiller Setup and Operation”in
Appendix C for instructions.
4. Set up the coupling fluid bottle. Ensure that the bottle cap is firmly
attached to ensure a tight vacuum seal. Place the filled coupling fluid
bottle in the caddy. The fluid level sensor (red LED) should be visible on
the side wall of the instrument to confirm that the bottle is positioned
correctly and is filled.

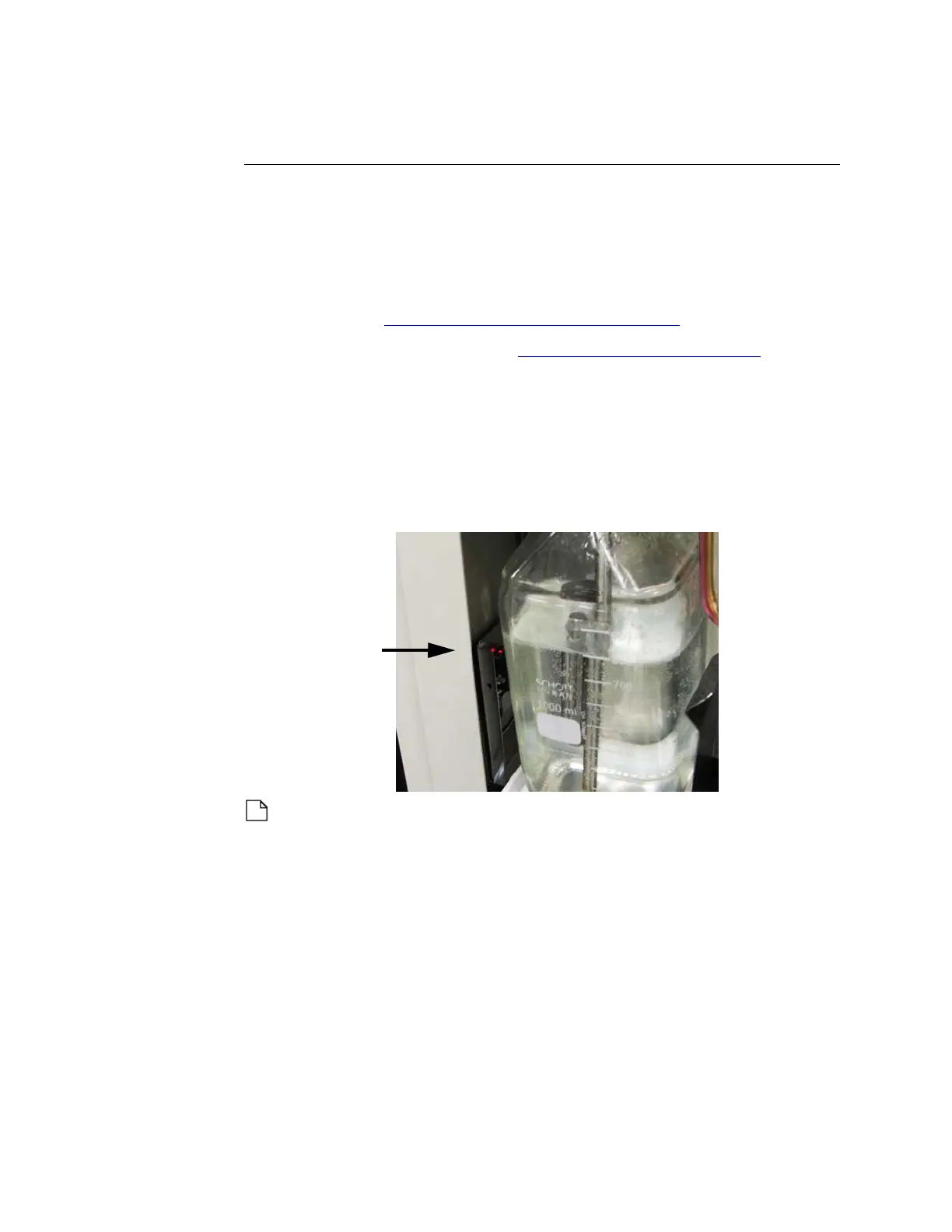

Figure 2.5 Fluid level sensor in bottle caddy
Note: Older systems hold the fluid bottle in a separate caddy with the
sensor showing through the hole on the top of the caddy. Also, some
older systems use a waste bottle.
