2-12 Echo Liquid Handler User Manual
5. Connect the air pressure and vacuum pressure supply lines to the fluidics
panel. The connections are labeled for easy reference.

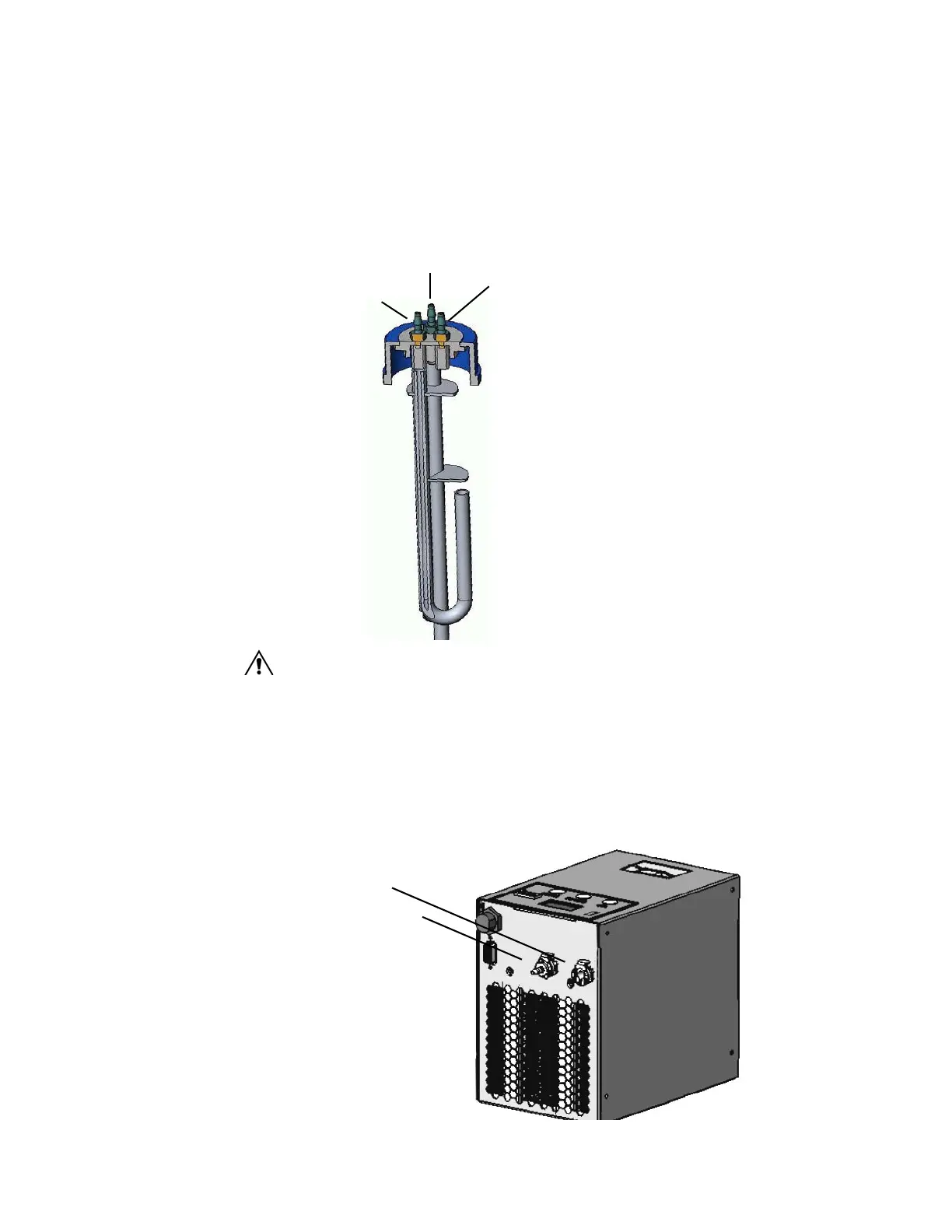

Figure 2.6 Bottle connections
Caution: Do not run the pump until the vacuum source is connected
and active. Running the pump without vacuum can lead to flooding
the system or a system error.
6. Connect the chiller. Attach the plastic tubing between the chiller and the
Echo liquid handler.
Figure 2.7 Tubing connections on the chiller
Coupler fluid bottle cap
(blue bottle cap)
From vacuum source
To coupler catch nozzle
(long, straight tube)
From catch basin
(J-tube)
From chiller (WATER OUT)
To chiller (
WATER IN)
